Layer 3/4 Priority Settings
13-9
13
Web – Click Priority, IP Precedence Priority. Select an entry from the IP Precedence
Priority Table, enter a value in the Class of Service Value field, and then click Apply.

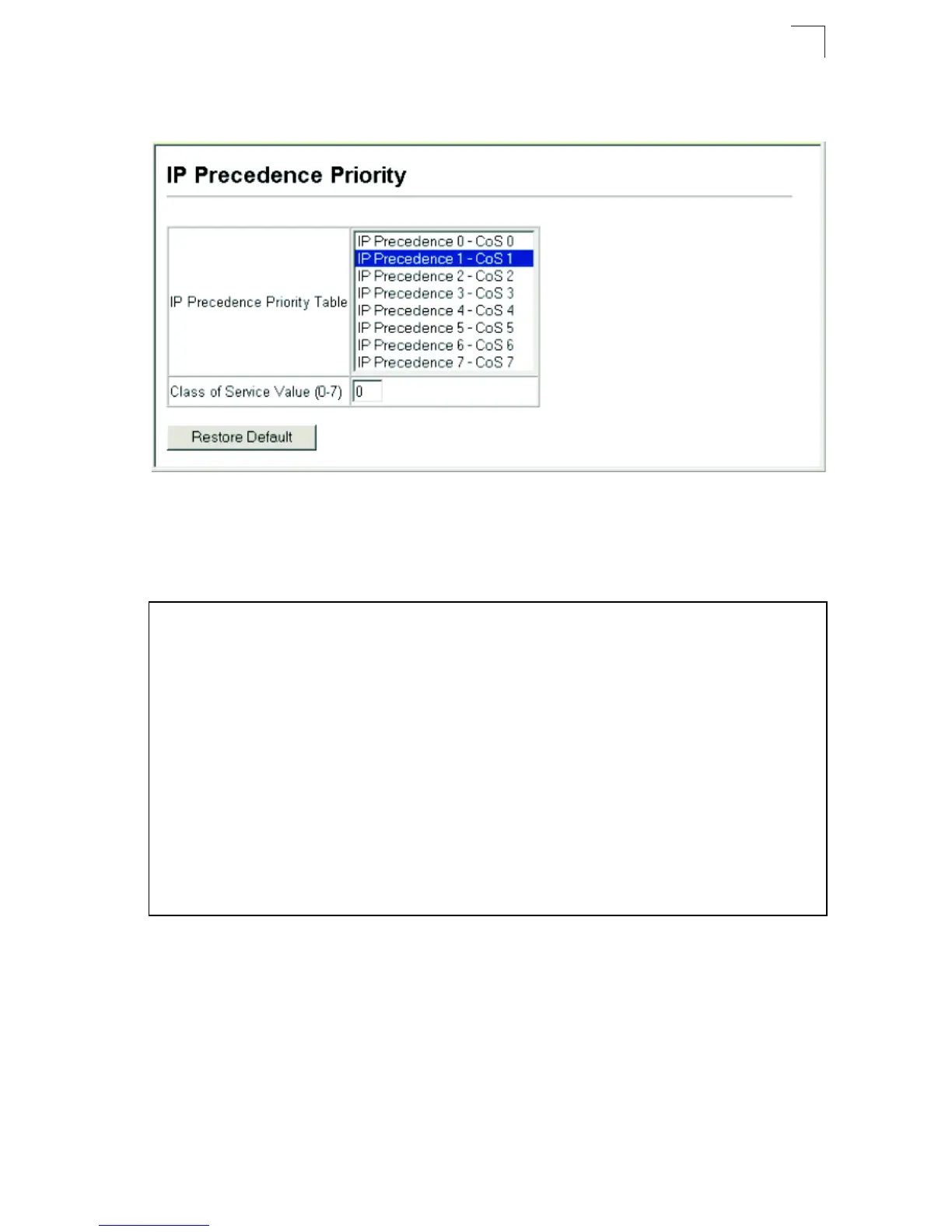

Figure 13-6 IP Precedence Priority
CLI – The following example globally enables IP Precedence service on the switch,
maps IP Precedence value 1 to CoS value 0 (on port 1), and then displays the IP
Precedence settings.
* Mapping specific values for IP Precedence is implemented as an interface configuration
command, but any changes will apply to the all interfaces on the switch.
Console(config)#map ip precedence 31-9
Console(config)#interface ethernet 1/1 24-1
Console(config-if)#map ip precedence 1 cos 0 31-10
Console(config-if)#end
Console#show map ip precedence ethernet 1/1 31-13
Precedence mapping status: disabled
Port Precedence COS
--------- ---------- ---
Eth 1/ 1 0 0
Eth 1/ 1 1 0
Eth 1/ 1 2 2
Eth 1/ 1 3 3
Eth 1/ 1 4 4
Eth 1/ 1 5 5
Eth 1/ 1 6 6
Eth 1/ 1 7 7
Console#
