Configuring Global Settings

11-9

11

Web – Click Spanning Tree, STA, Configuration. Modify the required attributes, and

click Apply.

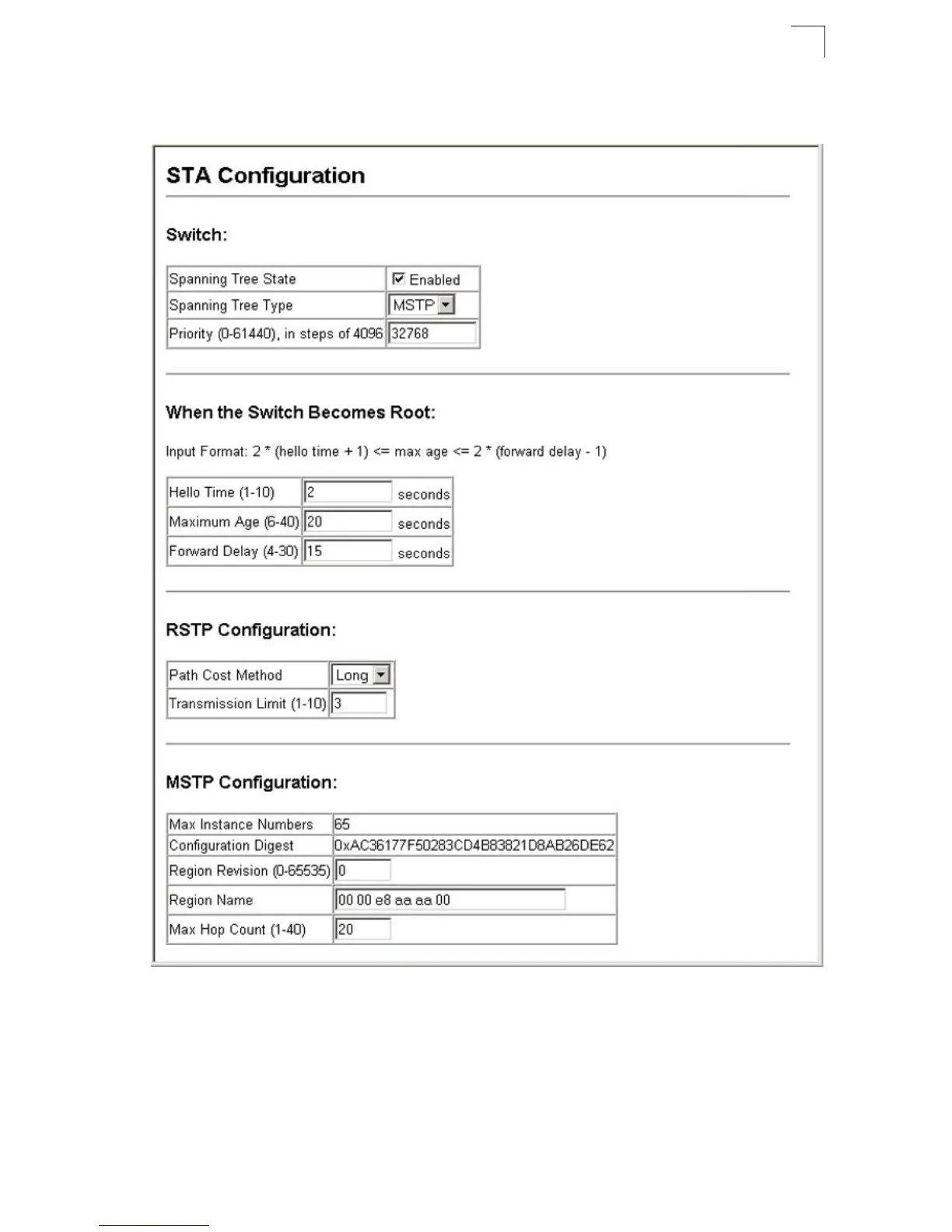

Figure 11-2 STA Global Configuration
