Configuring 802.1X Port Authentication

6-19

Web – Select Security, 802.1X, Statistics. Select the required port and then click

Query. Click Refresh to update the statistics.

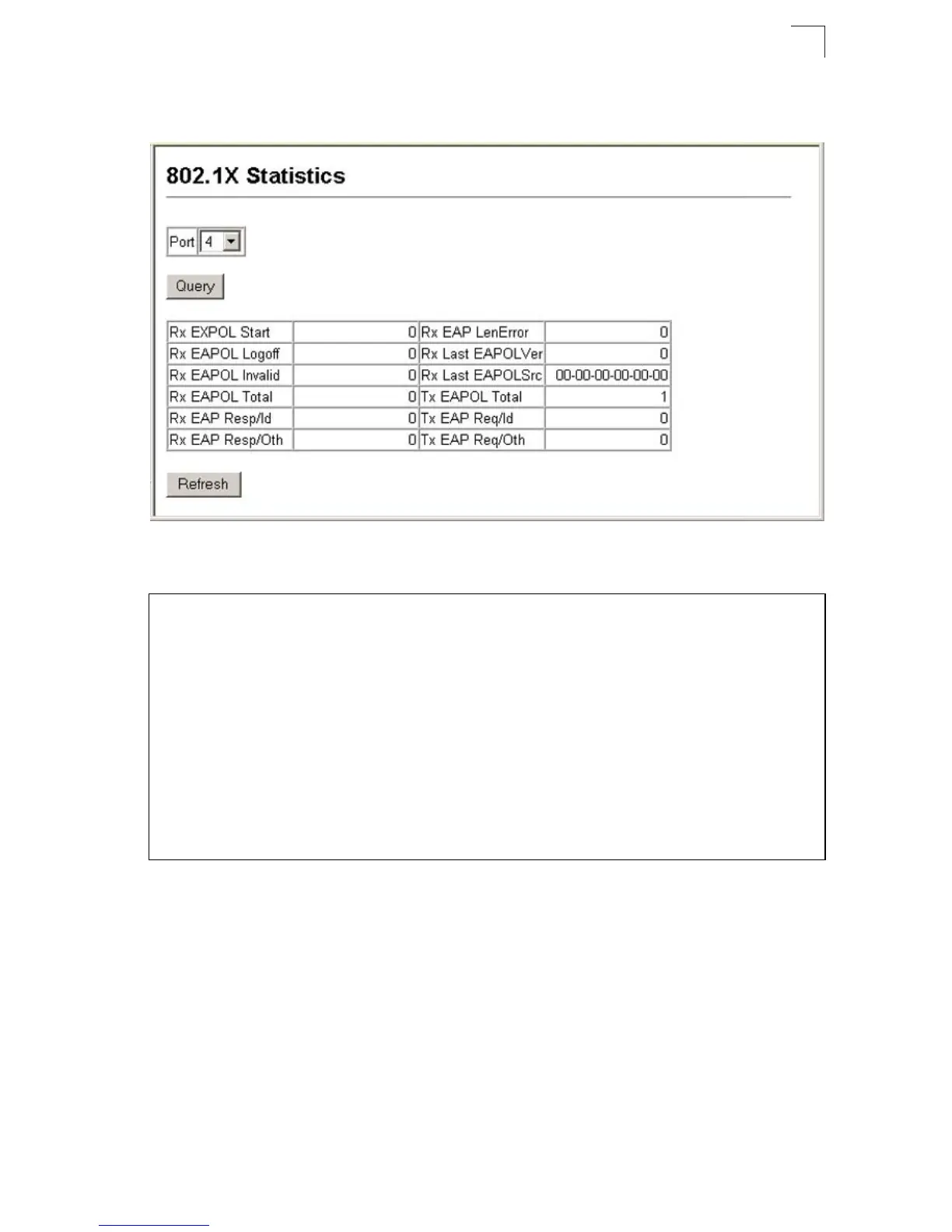

Figure 6-9 802.1X Port Statistics

CLI – This example displays the dot1x statistics for port 4.

Console#show dot1x statistics interface ethernet 1/4 21-29

Eth 1/4

Rx: EAPOL EAPOL EAPOL EAPOL EAP EAP EAP

Start Logoff Invalid Total Resp/Id Resp/Oth LenError

2 0 0 1007 672 0 0

Last Last

EAPOLVer EAPOLSrc

1 00-00-E8-98-73-21

Tx: EAPOL EAP EAP

Total Req/Id Req/Oth

2017 1005 0

Console#
