8.2.3. EW1 Zones, PGM Outputs & Tamper
Upon successful EW1 module binding process, the system adds 2 wireless Instant zones intended for wired sensor connection and 2
wireless PGM outputs intended for electrical appliance connection and control.
The wireless connection loss between EW1 and ESIM264 alarm system leads to system alarm regardless of system being armed or
disarmed. The system identies this event as a tamper violation and sends alarm by SMS message and phone call to the user (-s) by
default. The SMS message contains the violated tamper number and a star * character indicating wireless connection loss as a tamper
alarm cause.
ATTENTION: The tamper will not operate if both wireless zones are disabled.
8.2.4 Restoring Default Parameters
1. Disconnect EW1 power supply.
2. Short circuit (connect) pins D1 and D2.
3. Power up EW1 and wait until LED provides several short
ashes.
4. Disconnect power supply.
5. Remove short-circuit from D1 and D2 pins.
6. Power up EW1.
7. Parameters restored to default.
8.3 EWP1 – Wireless PIR Movement Sensor
EWP1 is a wireless device with integrated PIR movement detector and operates with ELDES wireless alarm systems. The user only
needs to switch on the EWP1 sensor and bind it to ESIM264 alarm system by sending a corresponding command via SMS message
or using software ELDES Conguration Tool. User can also monitor temperature of the surrounding areas in real-time as EWP1 has a
built-in temperature sensor.
It is possible to connect up to 16 EWP1 devices to ESIM264 alarm system at a time. The maximum wireless connection range is 150
meters (in open areas).
8.3.1 Technical Specications
8.3.1.1 Electrical & Mechanical Characteristics
Battery Type ER14505 AA Lithium Thionyl Chloride
Battery Voltage; Capacity 3,6 V; 2,4 Ah
Battery Operation Time ~18 months*
Wireless Transmitter-Receiver Frequency 868 MHz
Range of Operating Temperatures -10 ... +55°C
Dimensions 104x60x33mm
Detection Coverage Angle 90°
Maximum Detection Distance 10 meters
Compatible with Alarm Systems ELDES Wireless
Wireless Communication Range Up to 30 meters in premises; up to 150 meters in open areas
* This operation time might vary in dierence conditions.
1
2
3
4
5

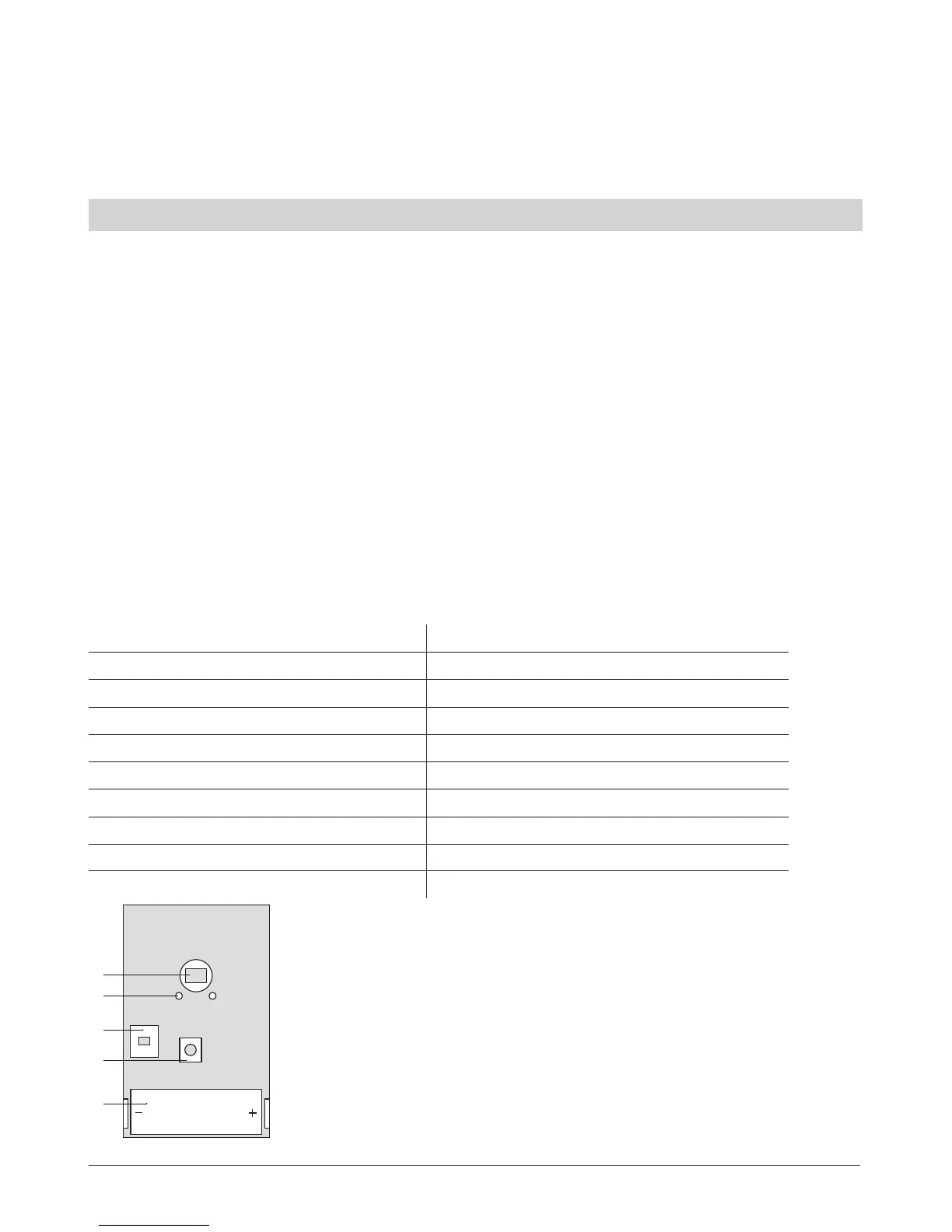

1 – Motion detector
2 – LED indicators informing about status of PIR sensor EWP1
3 – TAMPER button automatically identies when the box of sensor EWP1 is open or closed
4 – RESET button for reseting system parameters
5 – ER14505 3,6 V Lithium Thionyl Chloride battery
Fig. No. 34
