16
2.3.7 Keyboards

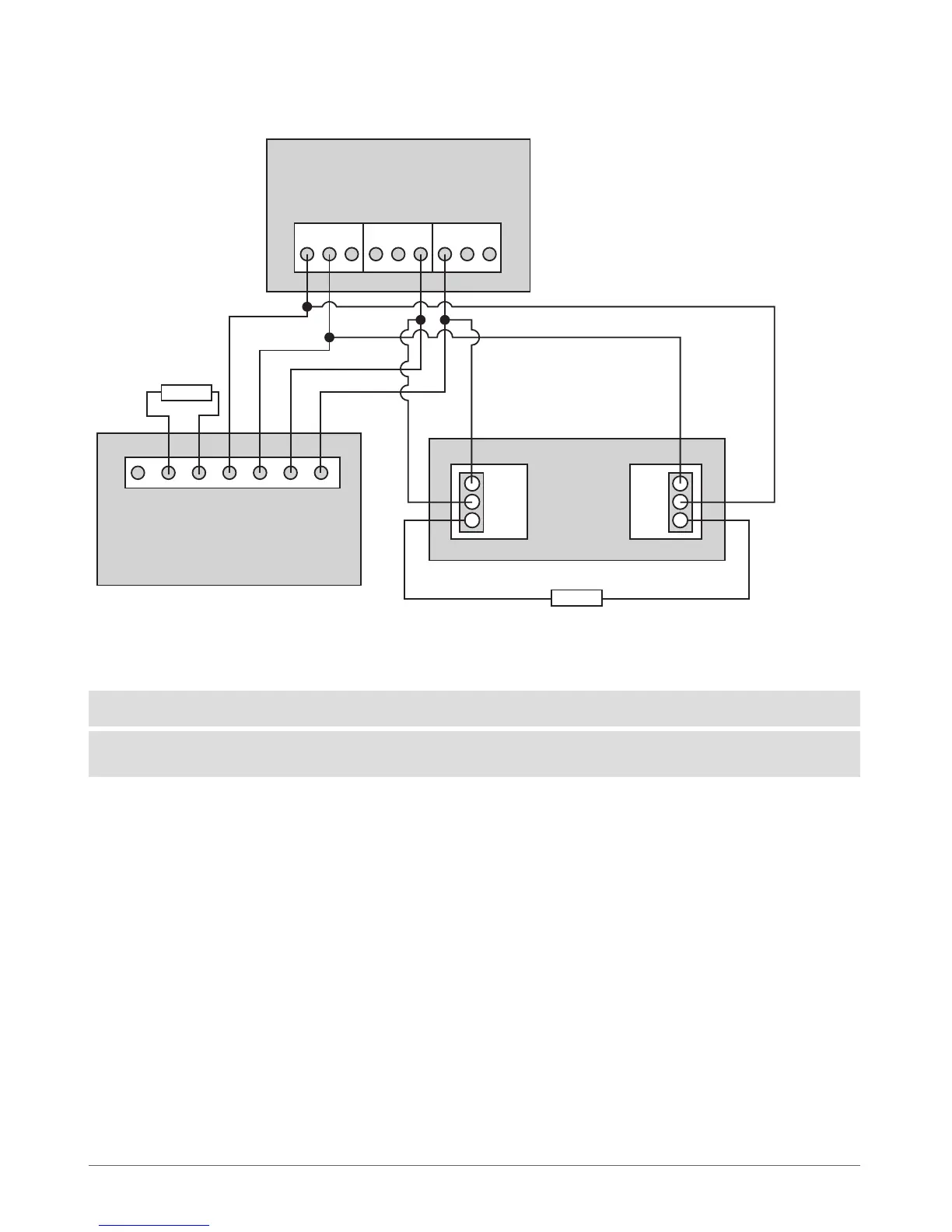

Parallel Wiring
VIN
EKB2
COM
Z1
G
Y
COM
5,6kΩ
ESIM264
EKB3
AUX+
Z2 COM Z1 Y G AUX - AUX+
AUX -Y G
5,6kΩ
ATTENTION: When wiring more than 1 keyboard, please, make sure that the set address of each keyboard is dierent.
NOTE: You may connect only 1 EKB2/EKB3 keyboard or a mixed combination of EKB2 and EKB3 keyboards. The combination
can consist of up to 4 keyboards in total.
For more details, please, refer to chapters 7.1 EKB2 - LCD Keyboard and 7.2 EKB3 - LED Keyboard
Fig. No. 8
