MANUAL ELDES ESIM264 V2.0 15

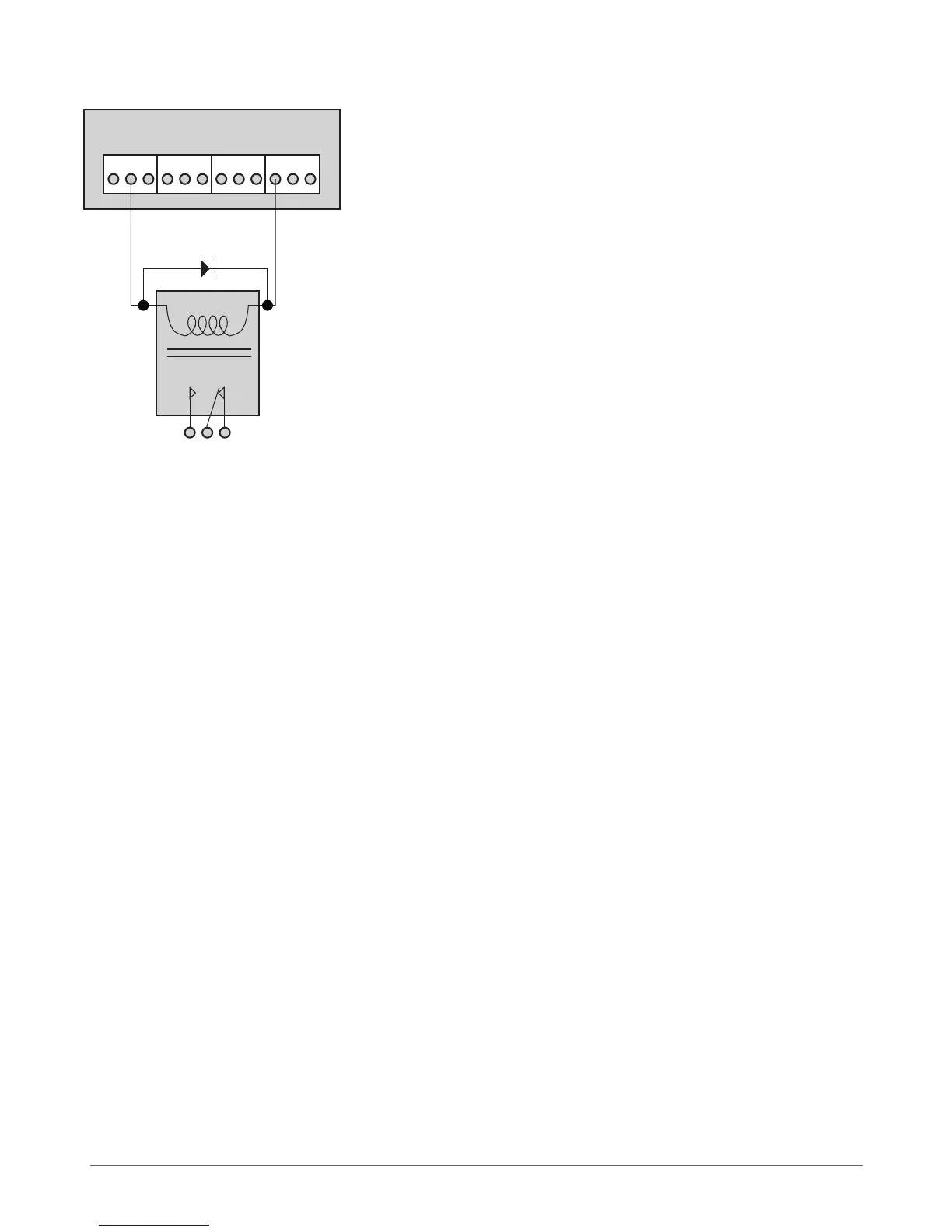

Fig. No. 7
2.3.6 Relay Finder® 40.61.9.12 with Terminal Socket 95.85.3
ESIM264
C1
LED
A1A2
COIL
RELAY
AUX+
1. Wire up relay A2 contact to PGM output Cx and A1 contact to AUX+.
2. In addition, connect LED anode contact to relay A2 contact and cathode to A1 contact.
