7.4 EPGM8 - PGM Output Expansion Module
EPGM1 is a PGM output expansion module intended for using with ELDES GSM alarm system ESIM264. This module allows to
connect up to additional 8 electrical appliances.
Main EPGM8 features:
• PGM output expansion adding 8 additional PGM outputs.
• compatible with ESIM264 alarm system
7.4.1 Technical Specications
7.4.1.1 Electrical & Mechanical Characteristics
Power Supply 10-24V 100mA max
Number of PGM Outputs 8
PGM Output D1-D8 Circuit
Maximum Commuting PGM Output Values Voltage – 30V; current 500mA
Dimensions 40 x 55 x 15 mm
Range of Operating Temperatures -20...+55ºC
7.4.1.2 Connector Functionality
D1 - D8 PGM outputs
12V Positive power supply contact
GND Negative power supply contact
1 R
OUT
D1 D2 D3 D4 D5 D6 D7 D8
12V GND

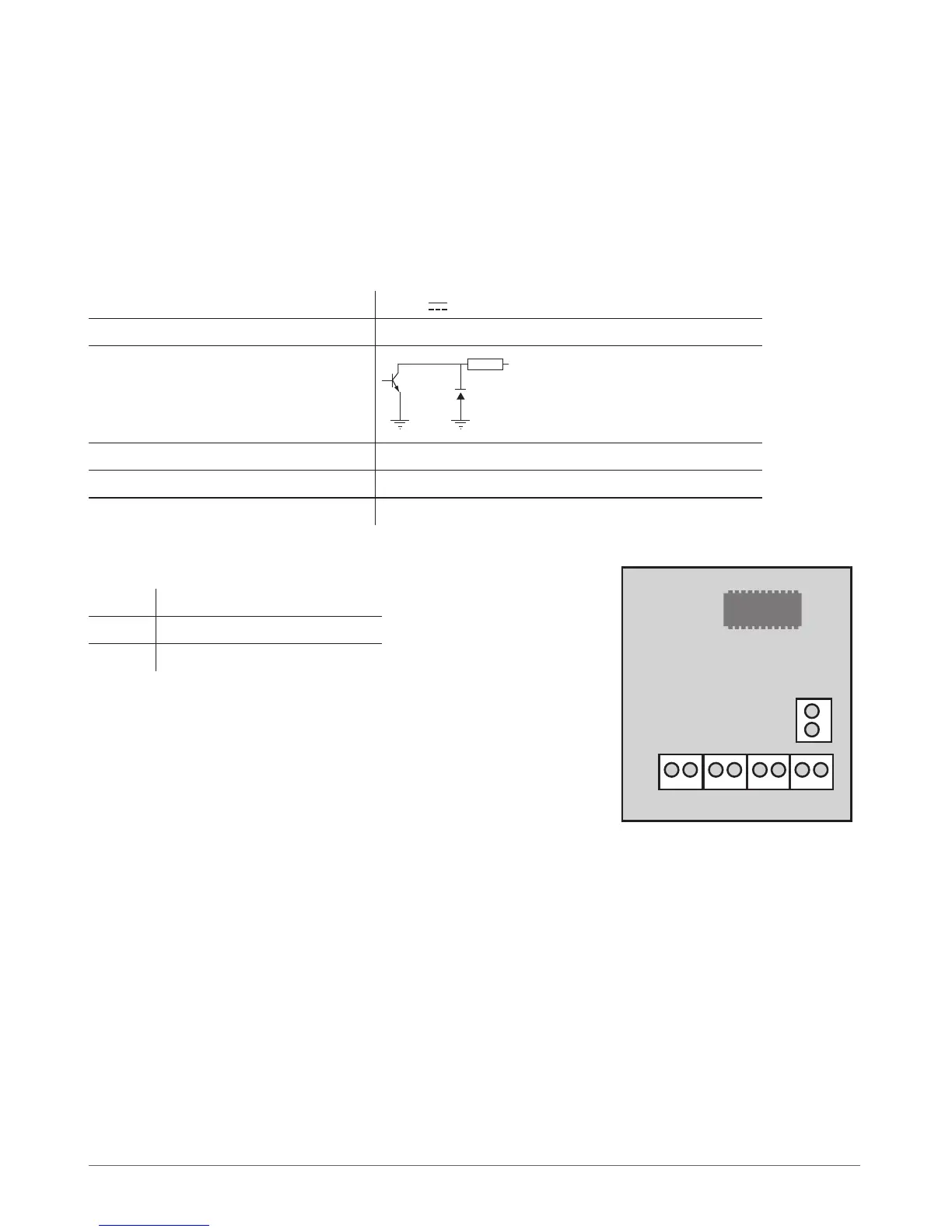

Fig. No. 22
Open collector output.
Output is pulled to COM when
turned on.
