8.3.2 Installation

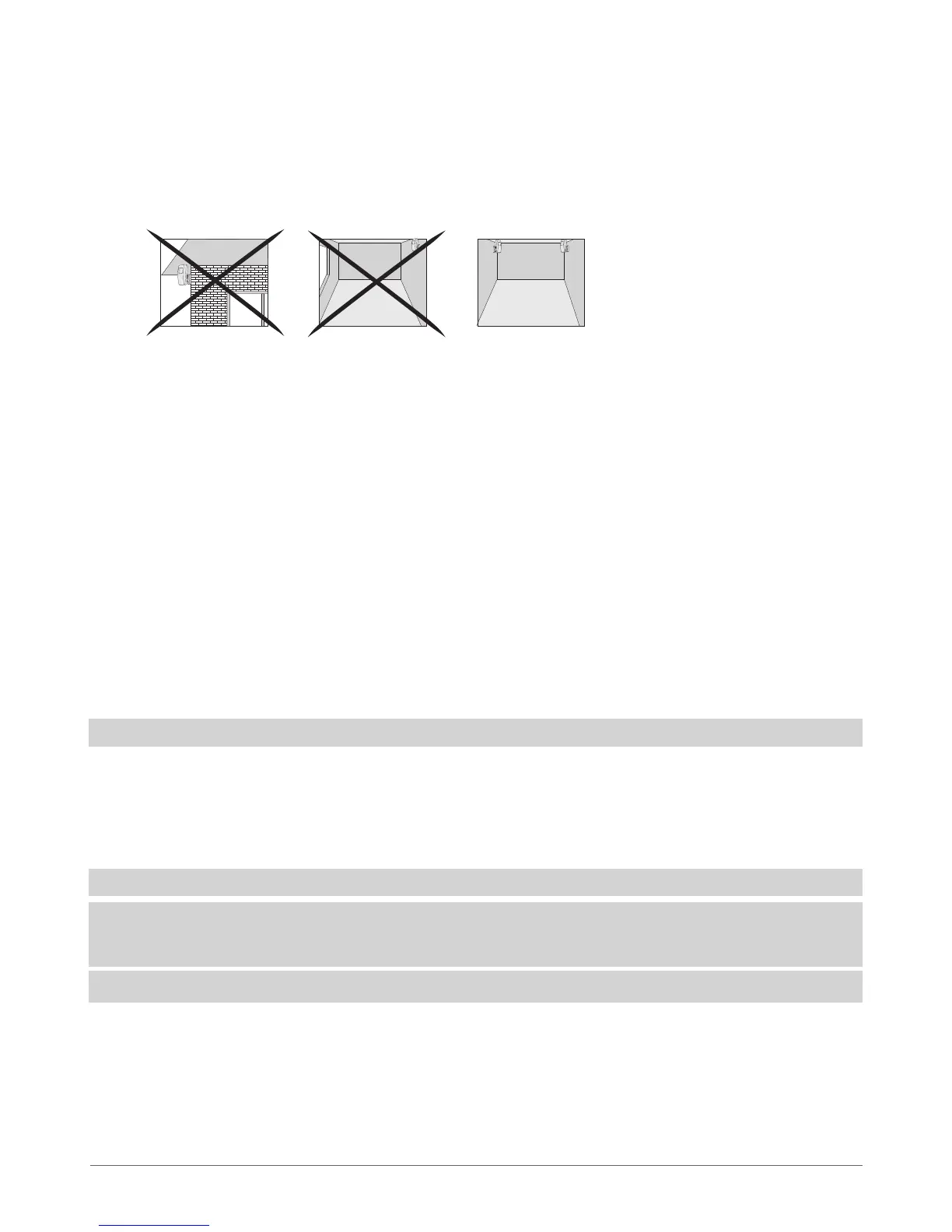

1. Choose the place where intrusion into the premises is the most probable and install the device. To avoid false triggers of
the system do not install it in the following places:
• directing the lens to direct sunlight, for example, to the window of the premises;
• where there is a risk of sudden temperature alteration, for example, near a replace or heating system;
• where there is an enlarged possibility of dust or air ow;
• behind the curtain or some other cover blocking the detected zone.
2. Fix EWP1 sensors mounting holder with two screws to the wall and attach the sensor.
3. Bind the device to ESIM264 alarm system. Use a software ELDES Conguration Tool or send corresponding SMS messages.
Please refer to software‘s HELP section or refer to chapter 8. ELDES Wireless Devices for more details.
4. The system automatically informs about successful/unsuccessful binding process. If attempt to bind is unsuccessful, try to
move EWP1 closer to alarm system device and bind anew.
5. EWP1 is ready to use.
8.3.3 EWP1 Zone & Tamper
Upon successful EWP1 sensor binding process, the system adds 1 wireless Instant zone intended for movement detection. By, default,
the alarm is caused instantly if any movement is detected in coverage area of the sensor (when system is armed).
In case of tamper violation, the alarm is caused regardless of system being armed or disarmed. There are 2 ways to detect tamper
violation on EWP1 sensor:
• By tamper button. EWP1 has a built-in tamper button intended for monitoring the enclosure status. Once the enclosure of
EWP1 is illegally opened, the tamper button becomes unpressed. This action is followed by alarm which is sent by SMS mes-
sage and phone call to the user (-s) by default. The SMS message contains the violated tamper number.
• By wireless connection loss. The wireless connection loss between EWP1 sensor and ESIM264 system leads to alarm. The
system identies this event as a tamper violation and sends alarm by SMS message and phone call to the user (-s) by default.
The SMS message contains the violated tamper number and a star * character indicating wireless connection loss as a tamper
alarm cause.
ATTENTION: The tamper will not operate if the wireless zone is disabled.
8.3.4 Battery Replacement
Only ER14505 AA Lithium Thionyl Chloride batteries should be used. Install only new, good quality and unexpired batteries. In order
to replace old battery with a new one, open the case of EWP1 and remove the old battery. Then insert new ER14505 3,6V Lithium
Thionyl Chloride battery.
ATTENTION: The battery must be removed if device is not in use.
ATTENTION: In order to avoid re or explosion hazards, the system must be used only with approved battery. Special care must
be taken when connecting positive and negative battery terminals. Dispose old batteries only into special collection sites. Do not
charge, disassemble, heat or incinerate old batteries.
ATTENTION: Using software ELDES Conguration Tool it is possible to watch the status of the battery in real-time.
8.3.5 Restoring Default Parameters
1. Remove any battery from EWP1.
2. Press and hold the RESET button.
3. Insert the battery back to EWP1.
4. Hold the RESET button until LED indicator provides several
short ashes.
5. Release the RESET button.
6. Parameters restored to default.
Fig. No. 35
