Eldes ESIM264 - Technical Specifications; Electrical and Mechanical Characteristics

MANUAL ELDES ESIM264 V2.0 11

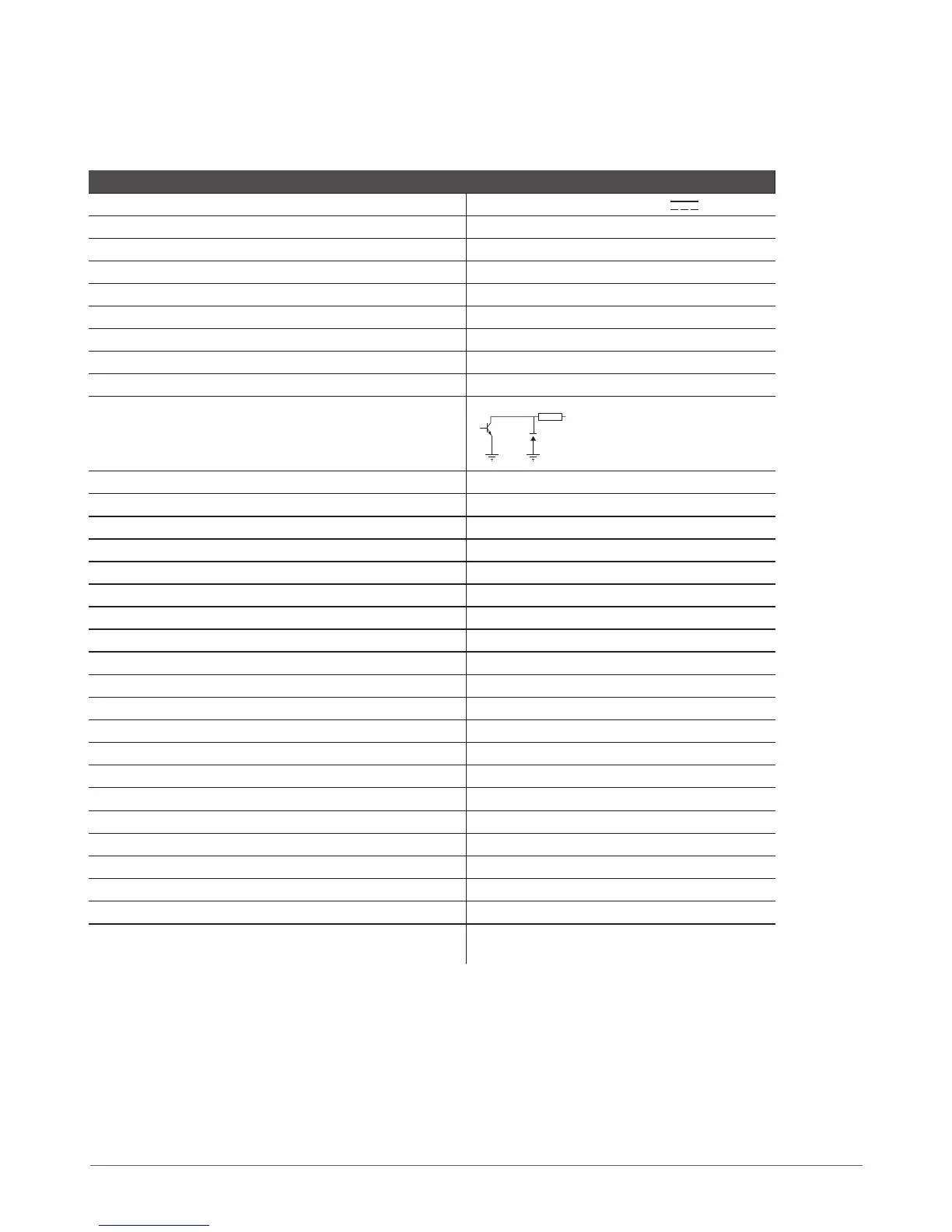

2. Technical Specications
2.1 Electrical & Mechanical Characteristics
Electrical & Mechanical Characteristics
Main Power Supply 16-24V 50 Hz ~1.5A max / 18-24V 1,5A max
Current in Standby without External Sensors and Keyboard Up to 80mA
Recommended Backup Battery Voltage, Capacity 12V; 1,3-7Ah
Recommended Backup Battery Type Lead-Acid
Maximum Battery Charge Current 900mA
GSM Modem Frequency 850/900/1800/1900MHz
Number of Zones on Board 6 (ATZ mode: 12)
Nominal Zone Resistance 5,6kΩ (ATZ Mode: 5,6kΩ and 3,3kΩ)
Number of PGM Outputs on Board 4
PGM Output C1-C4 Circuit
Maximum Commuting PGM Output Values Voltage – 30V; Current – 100mA;
Siren Output when Activated Connected to COM
BELL Maximum Siren Output Current 500mA
Auxiliary Equipment Power Supply Voltage 13,8V DC
Maximum Accumulative Current of Auxiliary Equipment and Siren 1A
+5V Maximum Current of Buzzer 150mA
Supply Voltage of Buzzer 5V DC
Dimensions 140x100x18mm
Operating Temperature Range -20...+55
0
C
Supported Temperature Sensor Model Maxim®/Dallas® DS18S20, DS18B20
Maximum Cable Length for 1-Wire® Communication
up to 30 meters
Supported iButton® Key Model Maxim®/Dallas® DS1990A
Supported Quantity of Keyboards 4 x EKB2 / EKB3
Maximum Cable Length for RS485 Communication up to 100 meters
Wireless Transmitter-Receiver Frequency * 868 Mhz
Wireless Communication Range* Up to 30m in premises; up to 150m in open areas
Maximum Number of Wireless Devices* 16
Event Log Size 1000 events
Maximum Supported Quantity of Zones 44
Maximum Supported Quantity of PGM Outputs 44
Communications SMS, Ademco Contact ID®: Voice calls (GSM audio
channel), GPRS network, RS485, CSD
* only for system ESIM264 with module EWT1
1 R
OUT
Open Collector Output.
Output is pulled to COM
when turned ON.
