7.3 EPGM1 - Zone & PGM Output Expansion Module
EPGM1 is a hardwired zone & PGM output expansion module intended for using with ELDES GSM alarm systems.
Main EPGM1 features:
• hardwired zone expansion adding 16 additional zones
• 2 PGM outputs for electrical appliance connection
• compatible with ESIM264

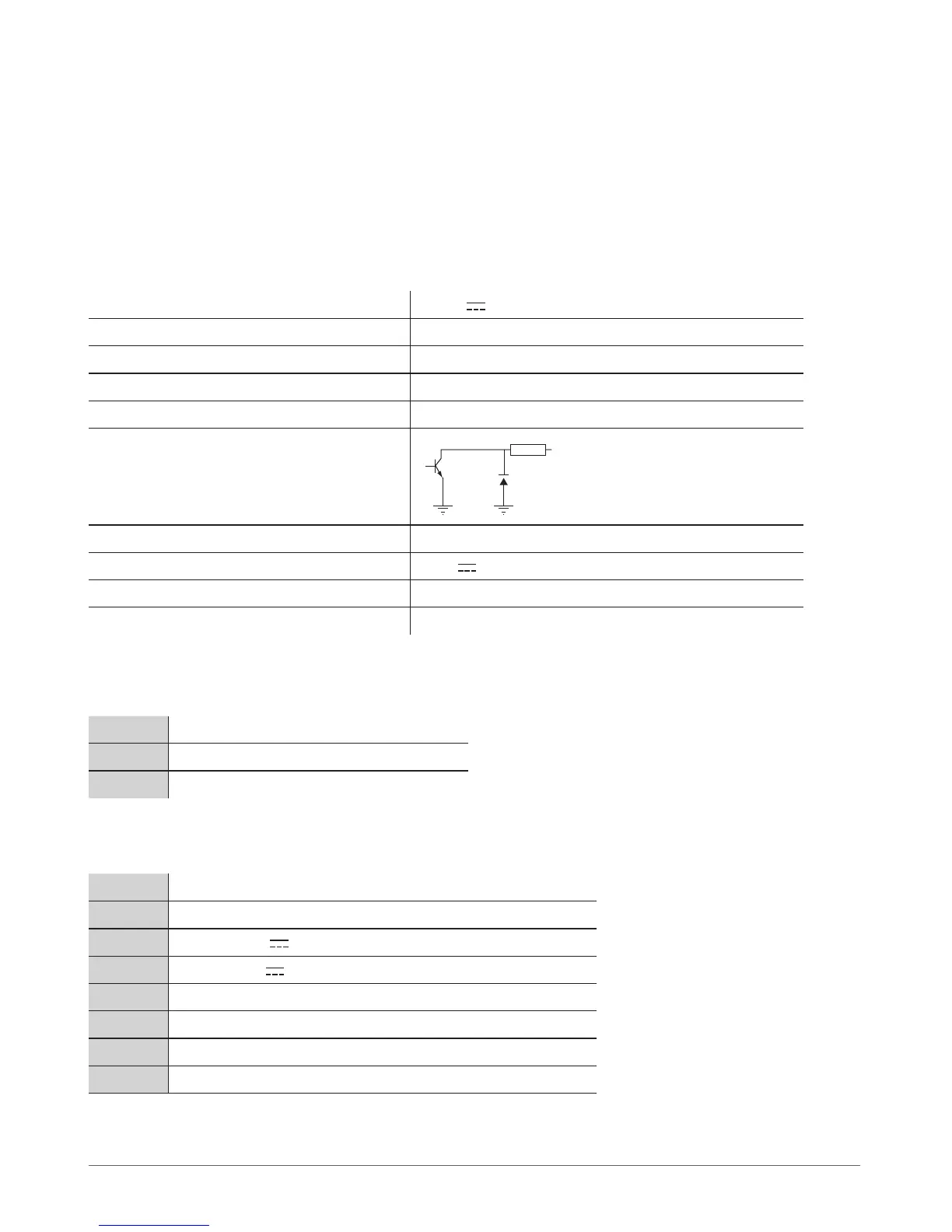

7.3.1 Technical Specications
7.3.1.1 Electrical & Mechanical Characteristics
Power Supply 10-24V 100mA max without Auxiliary Equipment.
Number of Digital Inputs 16
Nominal Resistance 5,6kΩ
Number of PGM Outputs 2
Maximum PGM Output Current 250 mA
PGM Output C1-C2 Circuit Open collector output.
Output is pulled to COM when
turned on.
Maximum Commuting PGM Output Values Voltage – 30V; current 250mA
Auxiliary Equipment Power Supply 13,8V 500 mA max
Dimensions 118 x 47 mm
Range of Operating Temperatures -20...+55ºC
7.3.1.2 LED Functionality
C2, C1 PGM output C1, C2 status – on/o
Z1 - Z16 Zone Z1 - Z16 status – alarm/restore
STATUS EPGM1 micro-controller status
7.3.1.3 Connector Funcionality
C1, C2 PGM outputs
Z1 - Z16 Security zones
AUX- Negative 13,8V power supply contact for auxiliary equipment
AUX+ Positive 13,8V power supply contact for auxiliary equipment
Y RS485 interface for communication (yellow wire)
G RS485 interface for communication (green wire)
COM Negative power supply contact
DC+ Positive power supply contact
1 R
OUT
