84
Using the Printer Software with W
indows
6.

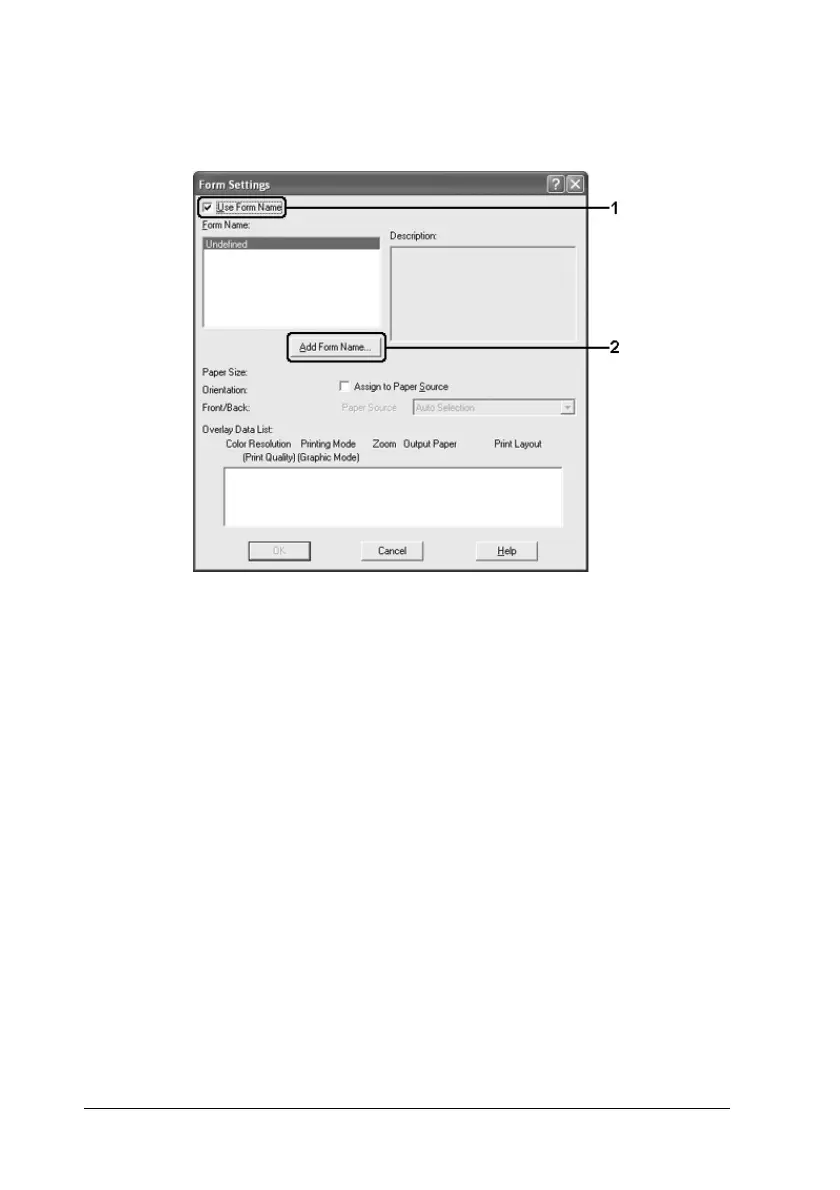

Select the
Use Form Name
check b
ox, then cli
ck
Add Fo
rm
Name
. The Add
Form di
alog box ap
pears.
Note:
If the
Assign
to Paper Source
check box is selected, the form
name is displayed in the Paper Source drop-down list on the
Basic
Setti
ngs
ta
b.
