199

Chapter3 Handling

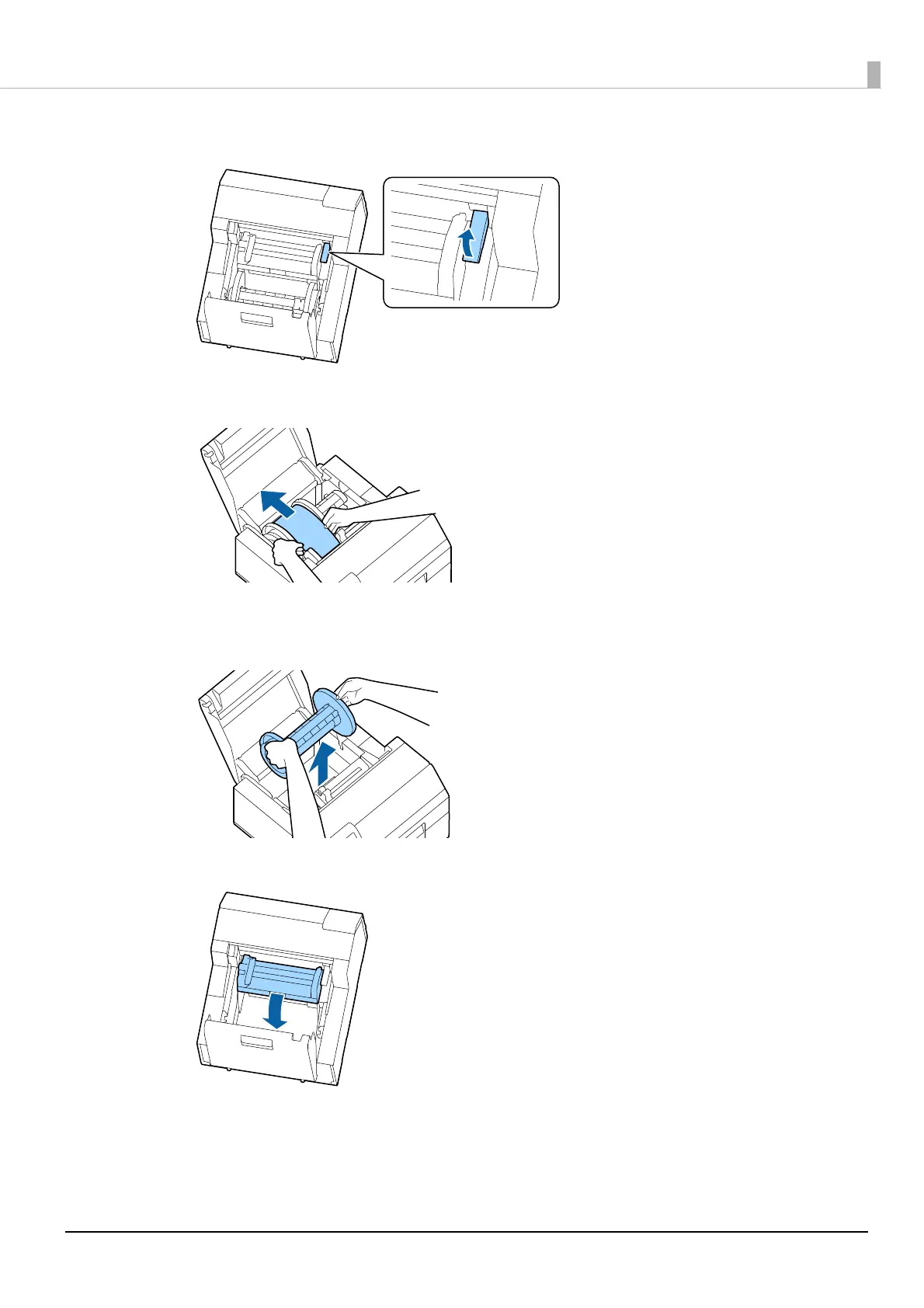

Raise the release lever.

Pull the paper out from the paper feed slot.

Remove the spindle, if present.

As shown in the figure, hold the spindle and flange with both hands, and remove them.

Raise the paper guide unit, and then remove any jammed paper from the inside.
