Roll Die-cut Label (without Black Mark)
*1: If the gap is 3 mm or less, you need to adjust the detector.
Form Roll paper
Backing paper width 25.4 to 215.9 mm
Label width 21.4 to 211.9 mm
Label length When auto cut is not used: 8 to 609.6 mm (up to 24 inches)
When auto cut is used: 15 to 609.6 mm (up to 24 inches)
Gap between Labels 2 to 6 mm* 1
Waste part on the left and right 2 ± 0.5 mm
Label corner R 1.5 mm or more
Paper thickness Matte Paper: 0.178 mm
Synthetic: 0.229 mm
Glossy Paper: 0.174 mm
Glossy Film: 0.164mm
High Glossy Paper: 0.188mm
Roll paper core inner diameter 76.2 mm ±0.5 mm
Roll paper outer diameter 152.4 mm or less
Winding direction Print side must be facing outside (facing inside is unusable)
• Paper with holes or cutouts cannot be used.
• Set the cut position to a position at least 0.7 mm away from the black mark of the next label.

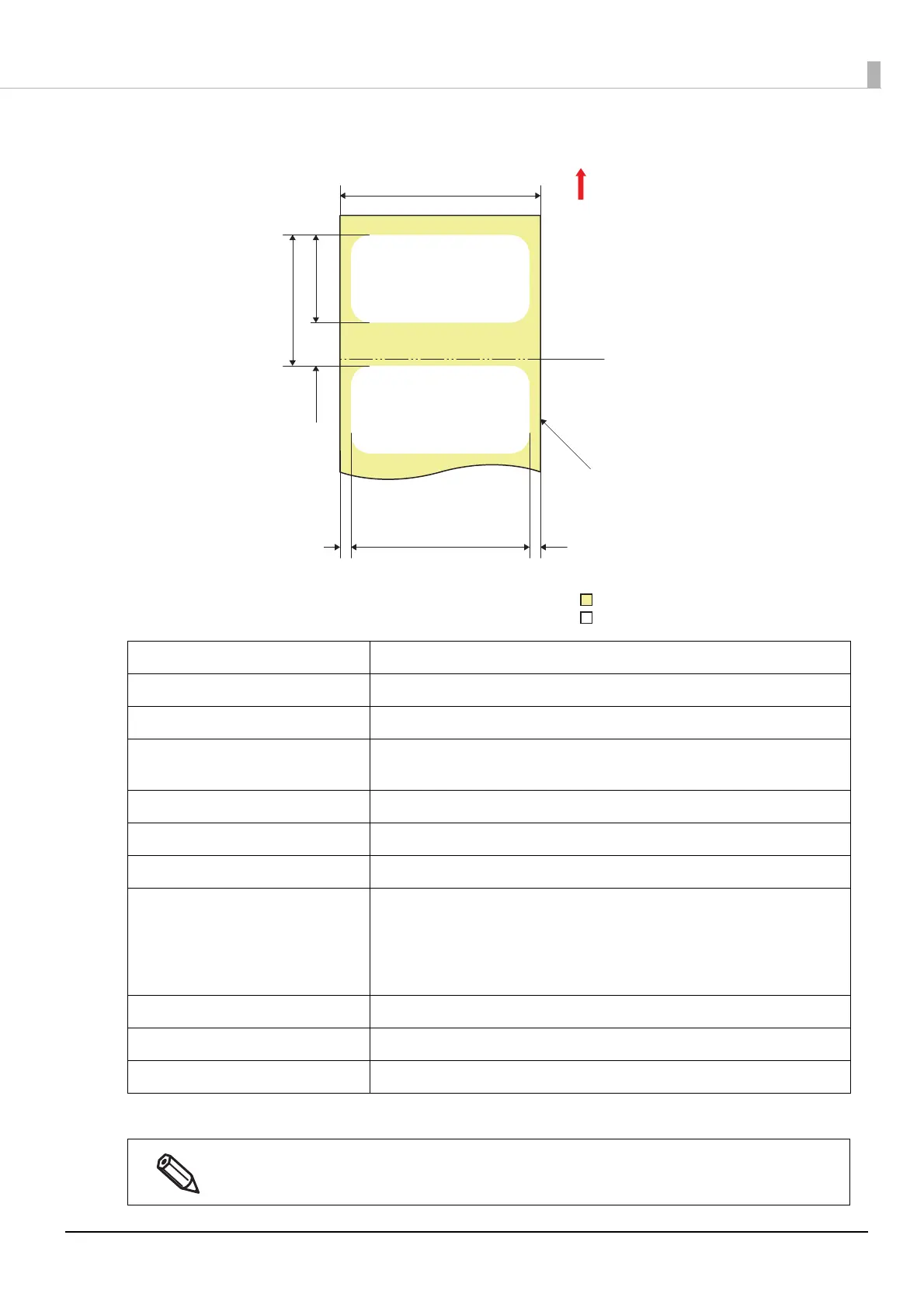

Waste part
Label length
Gap between Labels
Waste part
Backing paper
Label area
Backing paper width
Paper feed direction
Gap between pages
Label width
Side edge baseline
Cut position
To Next Page
