Multimeter Tests
120 MAX-635G
Voltage
Snapshot

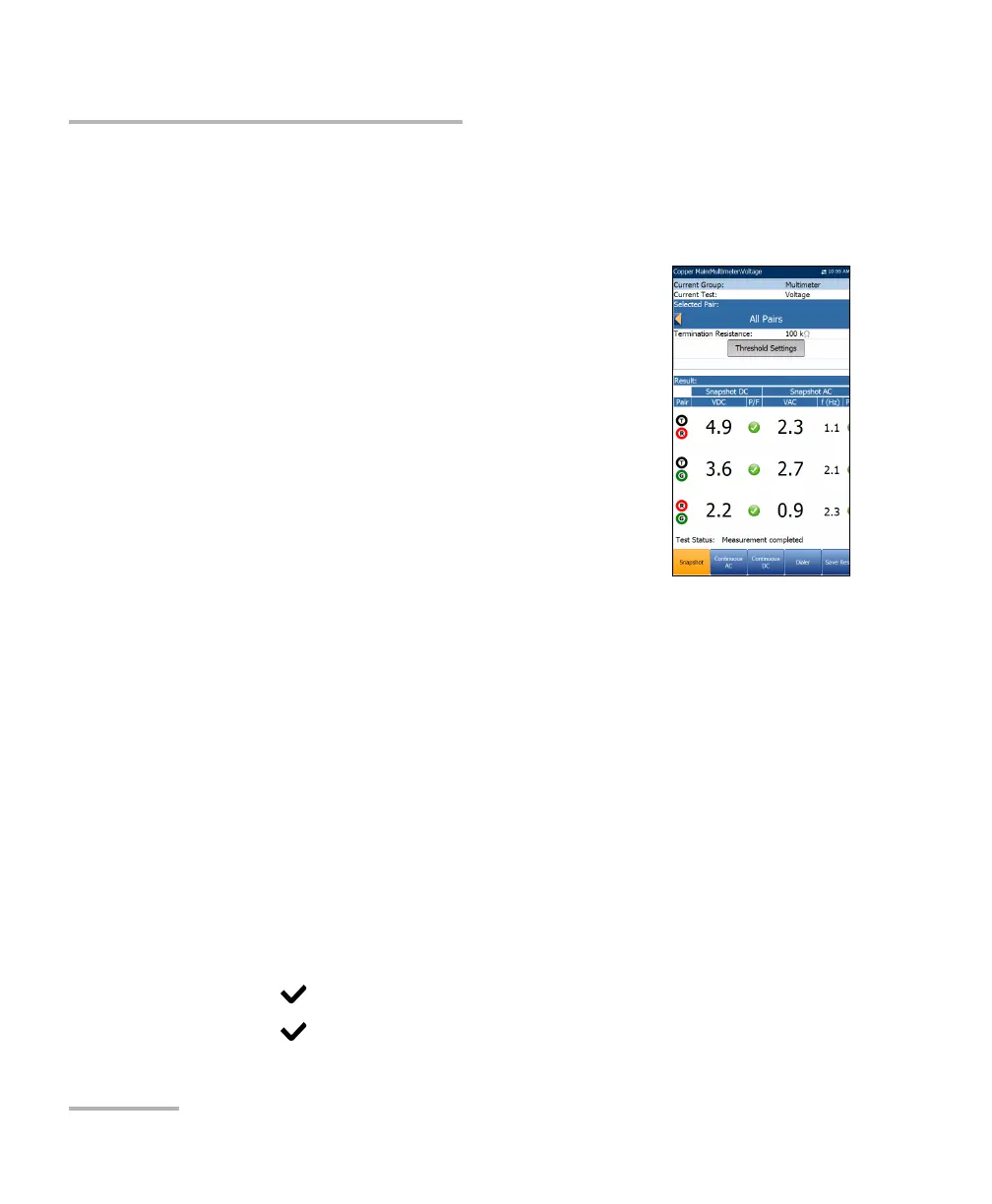

The voltage Snapshot tab shows measured volts for each lead
combination.
The parameters are as follows:
Current Group is the current test group name, for
example Multimeter.
Current Test displays the test being measured.
Here you can switch to another test from the given
list. However, this action will terminate the
ongoing measurement test.
Selected Pair allows you to select All Pairs or a
single wire pair for measurement.
Termination Resistance defines how much
resistance the tester uses to connect to the line
and measure voltages. The default value of 100 k
Ω is widely used in
the industry.
Threshold Settings button opens a new page that allows you to set the
AC/DC voltage thresholds for each pair.
Result displays a snapshot of the pass/fail status, volts and
frequency (Hz) values for each continuous AC/DC pair.
Test Status displays the current state of measurement or an error
message.
To select the parameter values:
1. Press the up/down arrow keys to highlight the desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press on a value to open a list box of options.
4. Press to confirm the value.
