Pair Detective Result Details
Pair Detective Result Details
Summary

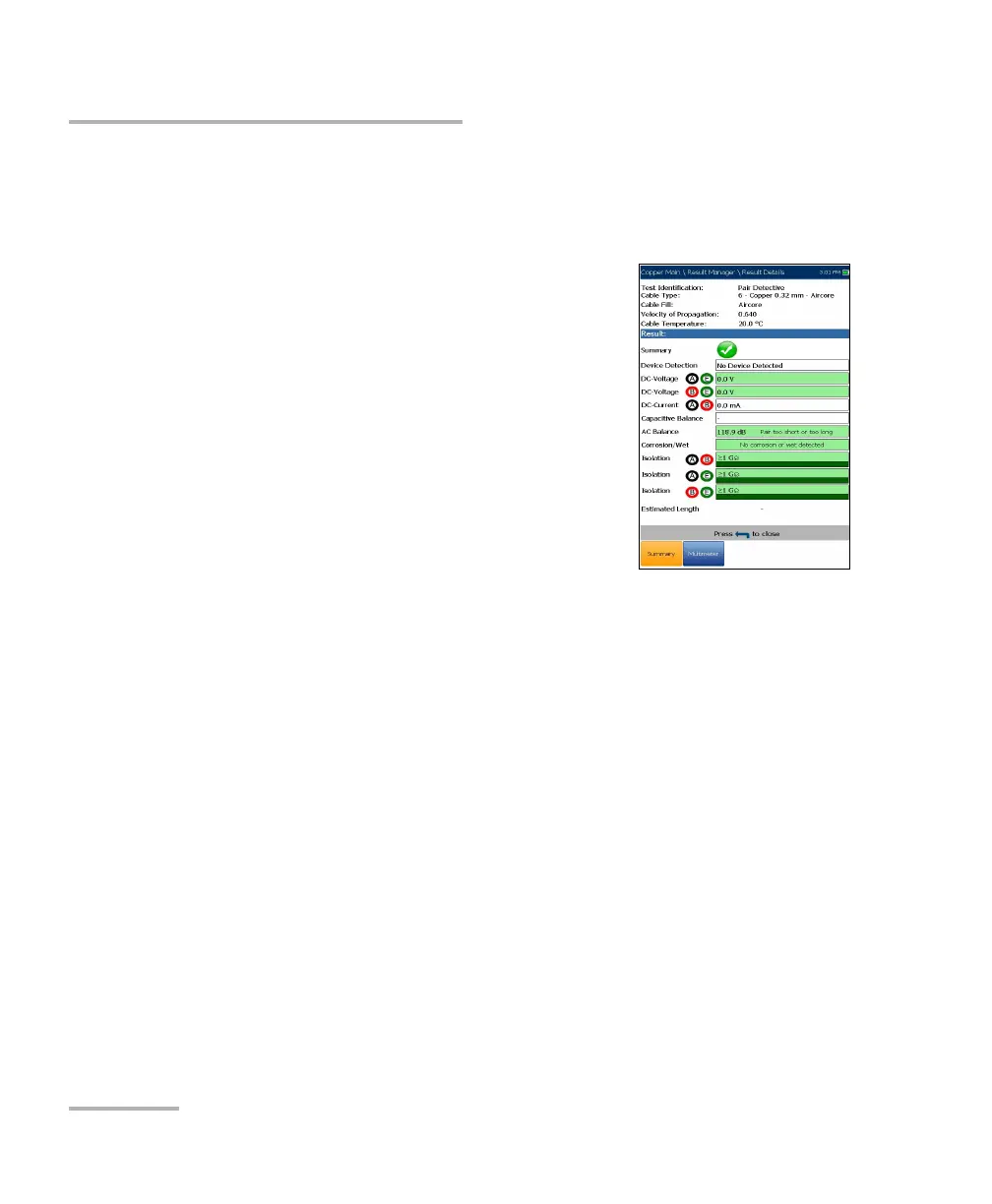

The read-only Summary page displays the cable
parameters and detailed results saved from
running the Pair Detective test.
 Test Identification is the test type of the
group, for example Pair Detective.
 Cable Type displays the ID, Cable Name and
Fill, (with its associated parameters) from the
current Cable Book, used for testing.
 Cable Fill is the type of material the cable is
filled with: Aircore, Jelly,Pulp, 5 PR, or 2 PR.
 Velocity of Propagation is defined as m/μsec
(meters per microsecond), a ratio, or percentage of the speed of light
for the cable.
 Cable Temperature is the temperature of the cable under test in either
°F or °C.
 Result displays a Summary of the overall pass/fail status,
DC-Voltage/Current and Isolation for each selected wire pair, as well
as other detailed results of the Pair Detective test.
 Isolation results also display a five-level indicator of the measured
resistance, when it is below the Hard Short resistance threshold
(on the Thresholds Settings page).
 Estimated Length displays the length of the circuit as found from
the TDR test for the first cycle of the Pair Detective test.
