EXFO MaxTester 635G - Cable Connections

Introducing the MAX-635G
8 MAX-635G
Cable Connections
Cable Connections

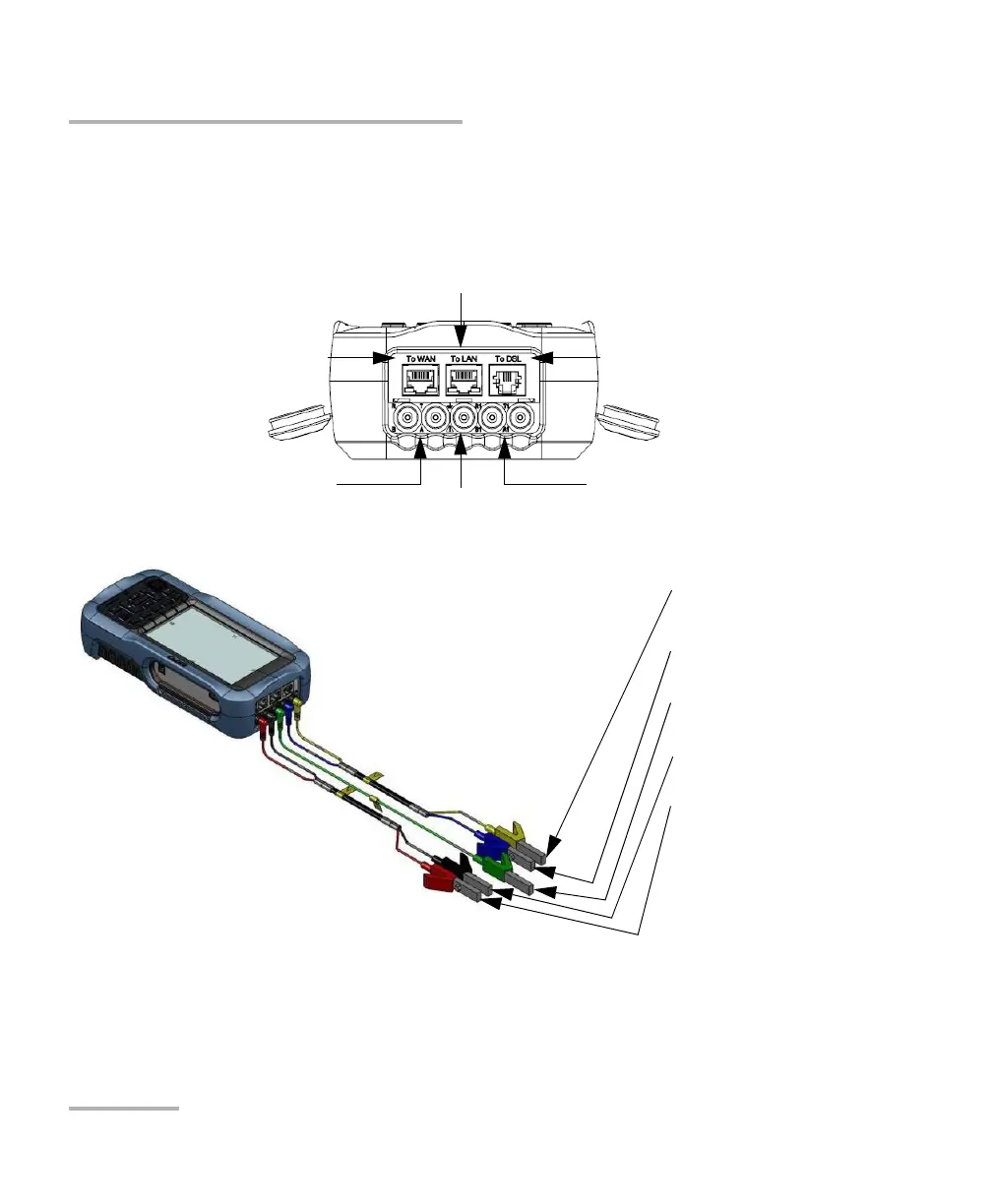

The graphics below show the connectors on the MaxTester device.
Note: In the MAX-63x-GVXAB model, to test an ADSL 1/2/2+ Annex B interface,
the Maxtester uses the second pair (pins 2-5) in the DSL WAN RJ11
connector. When connecting the unit to a wall socket with a modem cable
Ground
terminal
Ethernet/1 GigE LAN port
Ethernet/1 GigE
WAN port
DSL port
Primary Tip/A and
Ring/B connectors for
DSL and copper testing
Secondary Tip/A and
Ring/B connectors for
4-wire copper and
bonded DSL testing
Secondary Tip/A wire of
phone line
Secondary Ring/B wire
of phone line
Shield of phone line
Primary Tip/A wire of
phone line
Primary Ring/B wire of
phone line
