Capacitance/Opens
Continuous
The Continuous function measures each pair,
displaying and updating results in real time, until you
stop the test. The last valid results then remain
displayed. Significant fluctuations in the capacitance
results/length could indicate intermittent or wet faults,
or a partial open.

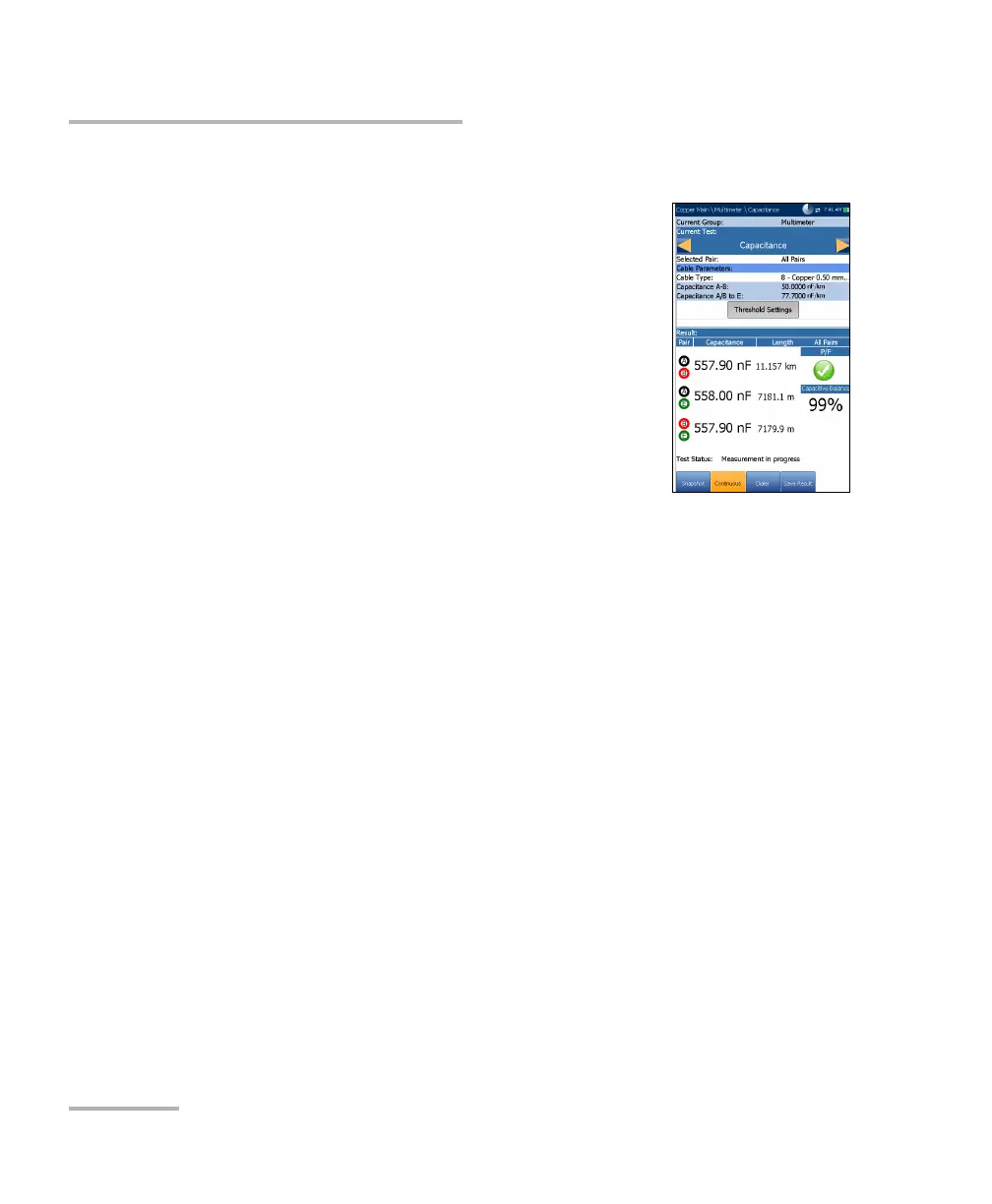

Current Group is the current test group name, for
example Multimeter.
Current Test displays the test being measured.
When FED is Enabled, the FED icon and numeric
state are displayed beside the Current Test.
Here you can switch to another test from the given list. However, this
action will terminate the ongoing measurement test.
Note: The accuracy of the 2 Terminal Capacitance Measurement is impacted by
the use of the FED, and the 3 Terminal (default) method is recommended
to be used instead.
Selected Pair allows you to select All Pairs or a single wire pair for
measurement.
Cable Parameters:
Cable Type displays the ID, Cable Name and Fill, and allows you to
select an entry (with its associated parameters) from the current
Cable Book, to use for testing. The selection is not saved when
leaving the test. The current Cable Book entry is shown by default.
Capacitance T-R/A-B displays the capacitance value from Tip to
Ring in nF/mi or km ranging from 10.0 to 500.0.
Capacitance T/R or A/B to GND/E displays the capacitance value
from Tip or Ring to Ground, in nF/mi or km ranging from 10.0
to 500.0.
