Noise Tests

Copper and G.fast/VDSL2/ADSL2+ Multi-play Test Set 183

VF Impulse Noise

Result Details

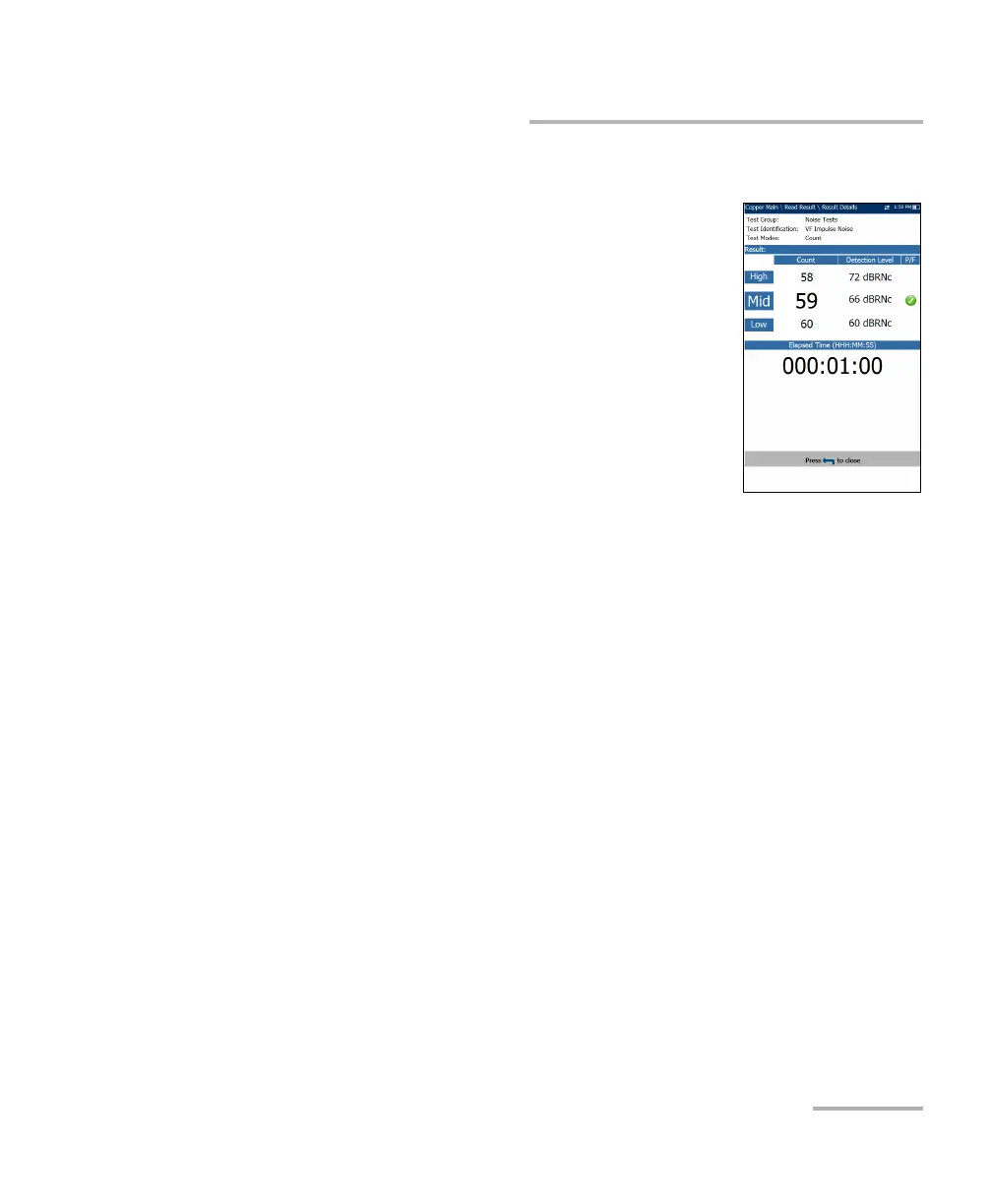

The Results Details read-only page displays the High,

Mid, Low VF Impulse Noise Count and Detection

Level values, and the pass/fail status of the Mid level.
