WB Attenuation
WB Attenuation Threshold Settings

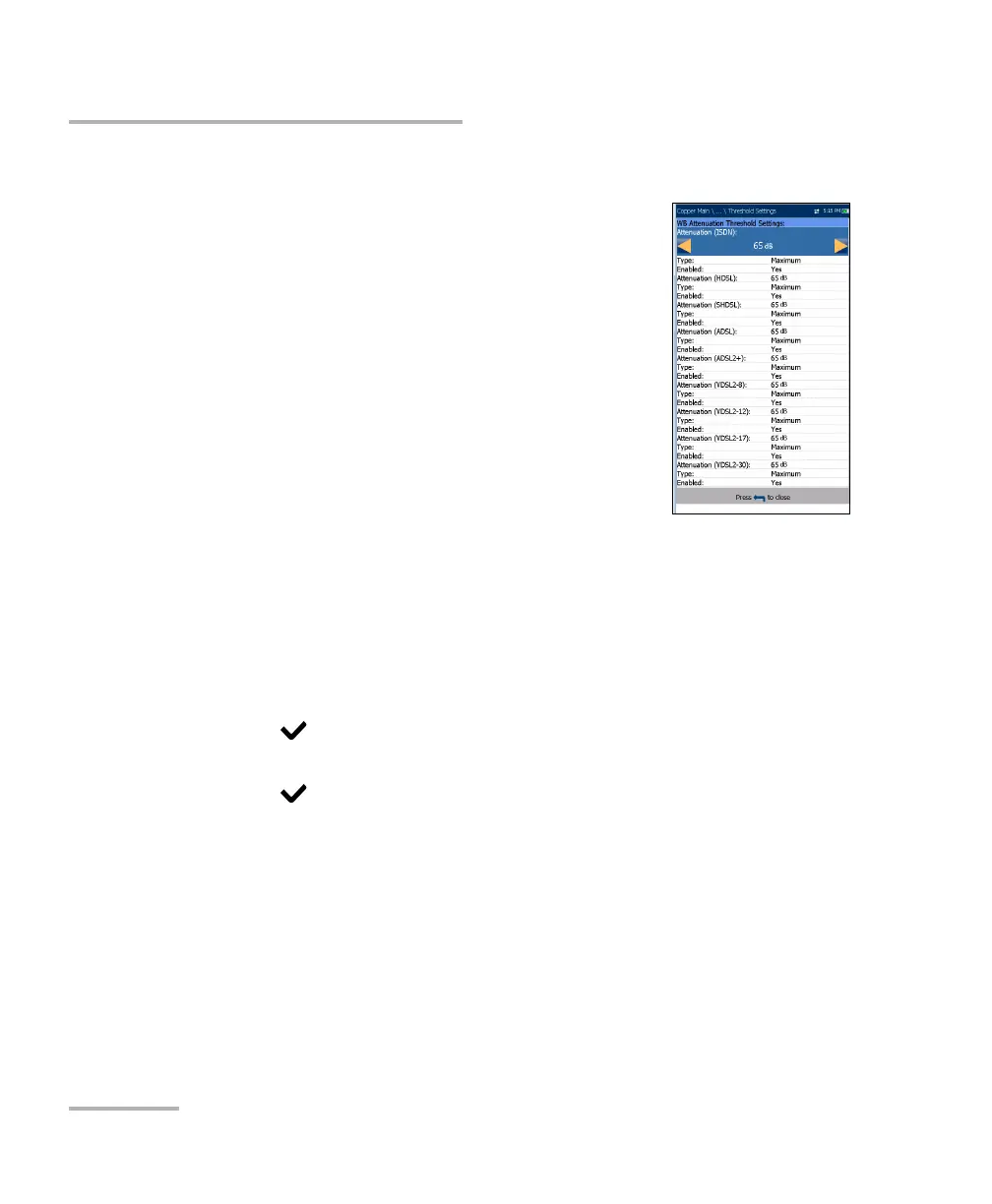

The Threshold Settings page allows you to set the
WB Attenuation threshold values for the test.
Attenuation sets up the good attenuation
threshold parameters.
Type is the threshold limit for each pair. Selecting
Minimum or Maximum acts as the single point
pass/fail threshold flat mask while selecting Mask
provides a shaped mask as threshold. When Mask
is selected, it will be used as pass/fail criteria next
time the test is run.
Enabled is a flag to use the existing threshold:
either Yes or No. For example, setting the threshold Enabled to No will
disable pass/fail threshold.
To set threshold values:
1. Press the up/down arrow keys to highlight the desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press on a value to open a list box of options or the alphanumeric
editor screen and use the navigation keys to scroll through.
4. Press to confirm the value.
