RFL
296 MAX-635G
Result Details
K-Test

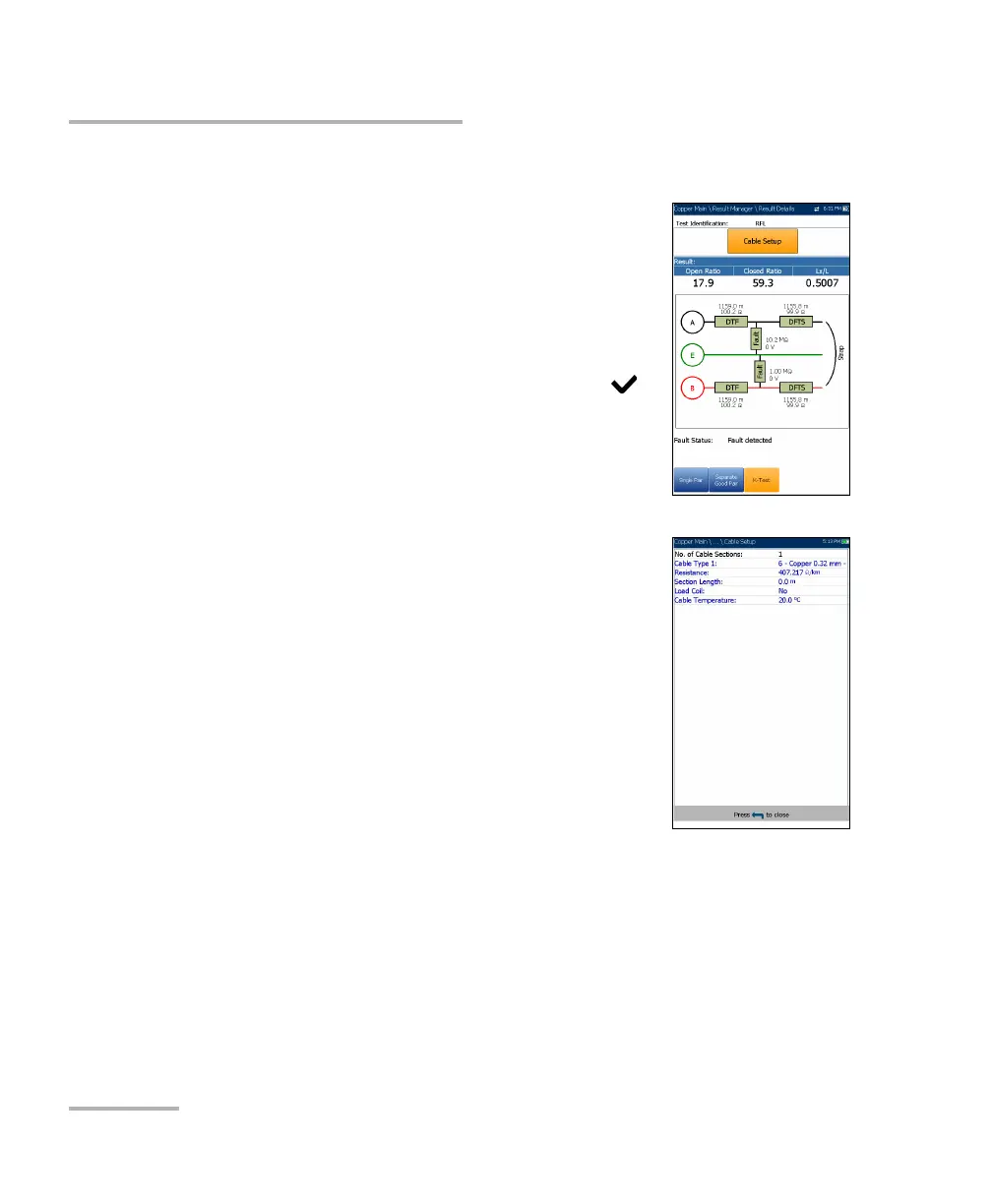

The Results Details read-only page displays the
K-Test RFL results using text and a connection
diagram.
 Test Identification displays the current test, for
example RFL.
 Cable Setup button opens a new page displaying
the cable parameters of the RFL test. Press to
open the page.
Cable Setup
The Cable Setup page displays the cable parameters
for each section used while running the RFL test.
Settings are shared by both Single Pair and Separate
Good Pair tests.
