Selecting an electric axis

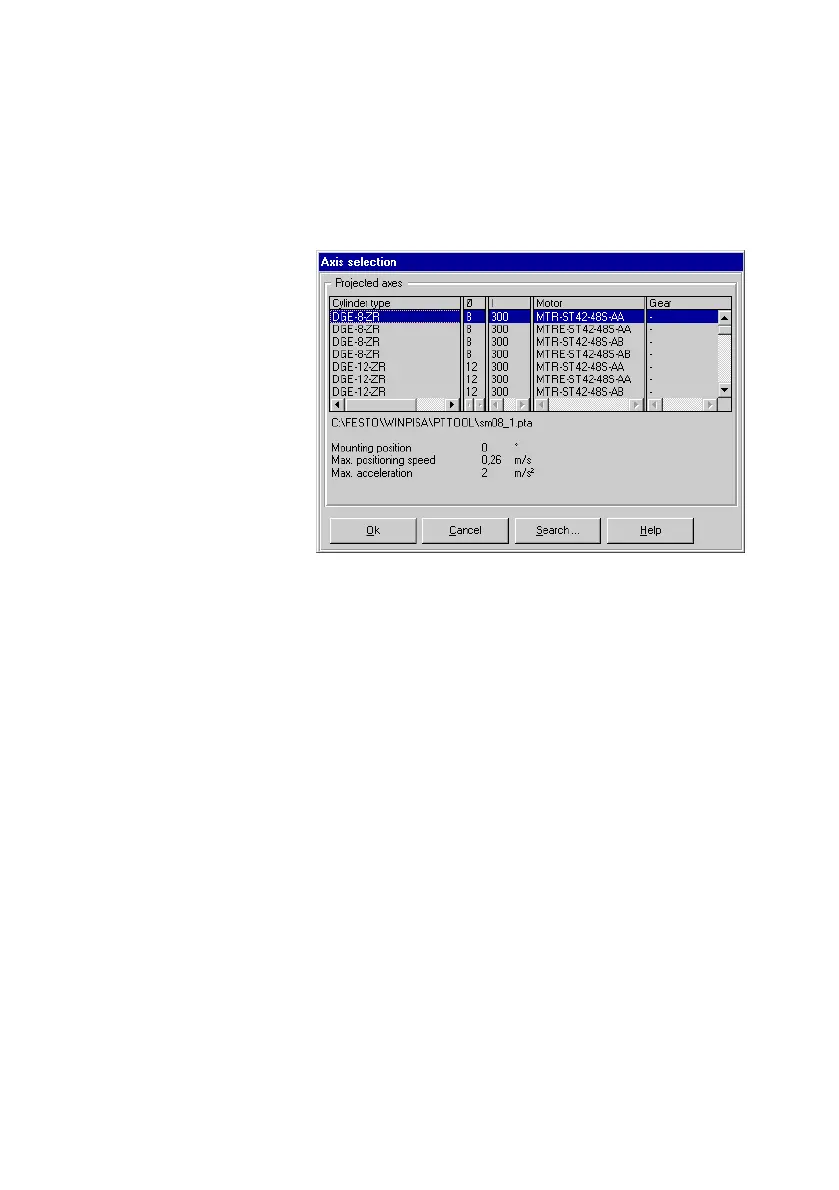

Fig. 3/2: Axis selection (electric axis)
The cylinder type of the linear axis, the diameter, length,
motor and, if applicable, the gears of the specified axis are
shown under Projected axes". Select the linear axis−motor
combination used. Then enter the correct length of the axis in
the dialogue window Parameter set for the
..−axis".
