6. Diagnostics and optimization
6−18
Festo P.BE−SPC200−WIN−PISA−CD−EN en 0901d
Tracing the registers
To display the content of the register:
· Select [Register] from the [Online] [Observe] menu.
The contents of the various registers will be displayed in a list
box in the Register" window.

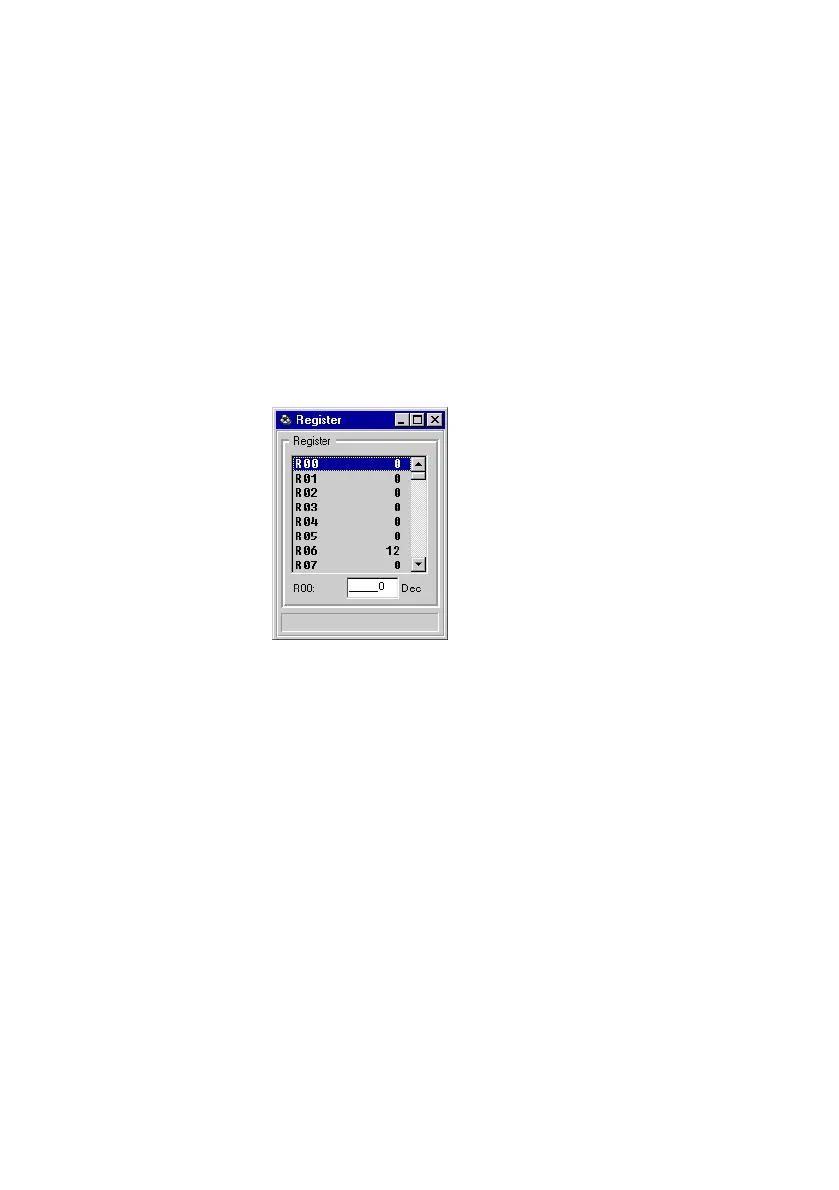

Fig.6/9: Tracing the registers
You can modify the contents of individual registers as follows:
1. Select the register you wish to modify from the list box in
the Register" dialogue window.
2. The selected register will be shown under the list. Enter
the desired register contents in this field (R..:") as a
decimal number.
3. Press ENTER to
confirm your entry.
The value entered will then be written into the register.
