Stability problem, highly frequent oscillation around the
reference position
1 Final reference
position
2 Current position
3 Speed
1
2
3

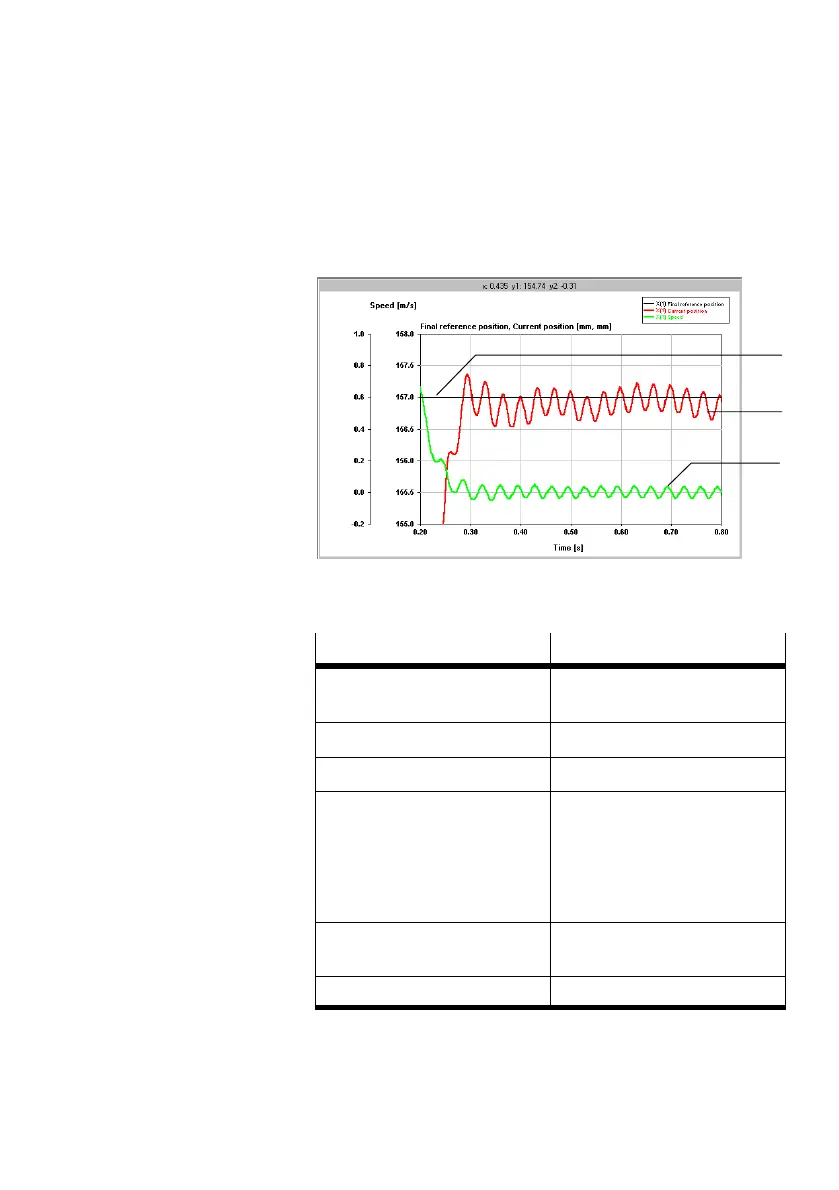

Fig.6/31: Stability problem
Causes
Remedy
 Incorrect mass load confi
gured or programmed (M37)
· Correct configuration or
program
 Gain factor set too high · Correct the parameter
 Damping factor set too low · Correct the parameter
 Signal filter factor set too high
(smoth acceleration/speed
signal but continuous oszilla
tion)
Or very noisy acceleration sig
nal with high amplitude
· Reduce signal filter factor
· Increase signal filter factor
 Minimum mass load exceeded · Increase basic load (see sys
tem manual for the SPC200)
 Insufficient tolerance required · Increase tolerance
