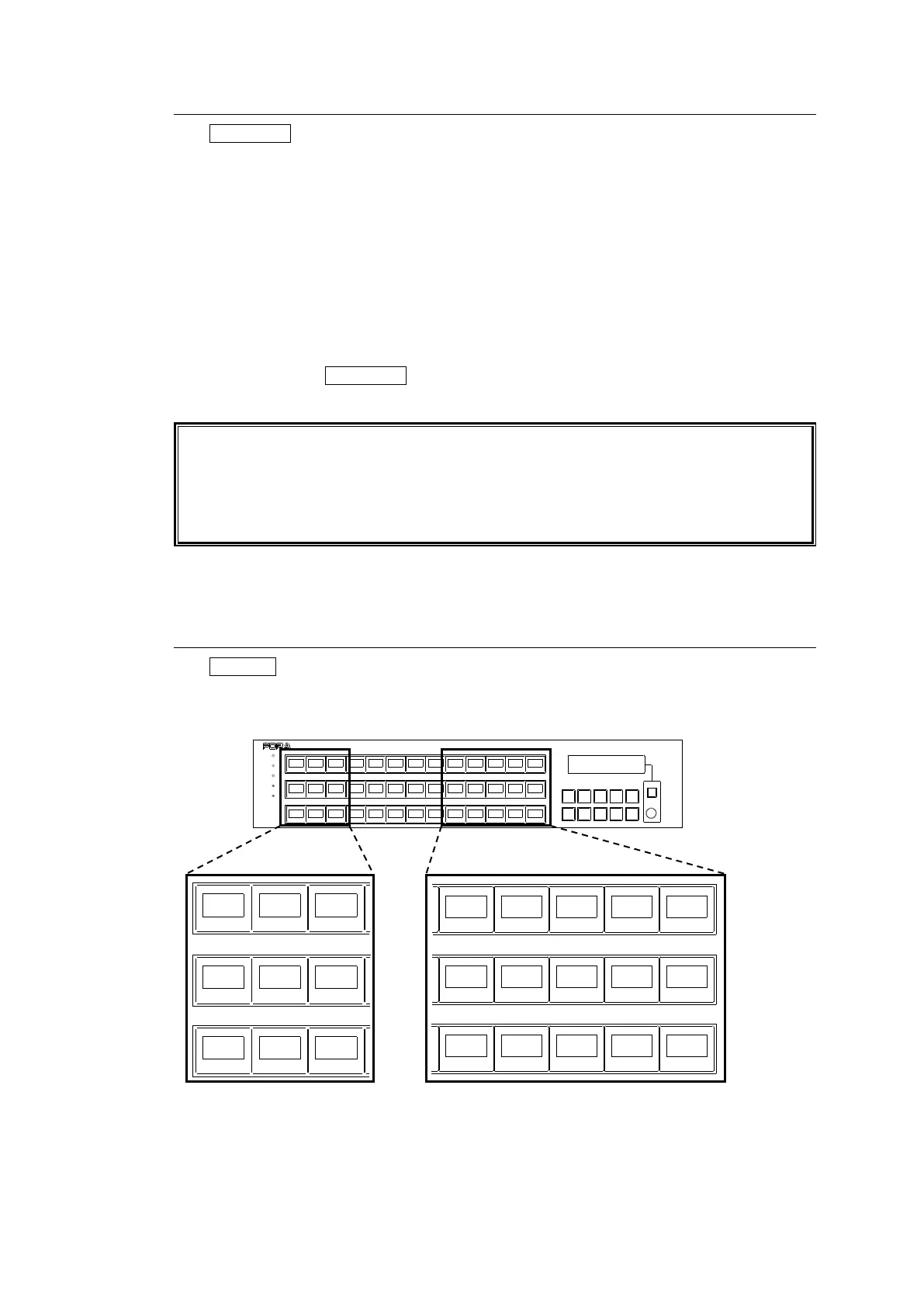

6-1-1-1. SKIP-FWD/BWD
The SKIP-FWD button allows you to skip the set destination number or source channels
forward to select the current one. The SKIP-BWD button allows you to skip channels
backward.
In Destination or Source mode, the set number of channels is skipped. In Level, Page or
Setting mode, these buttons are inoperable. (See section 5-4-2. "Mode Menu.")
* To confirm the source selection, press the control knob.
If the source and/or destination channels are categorized, the buttons allows you to go to
the first or last channel in the category.
(Ex.) If Category 1: Dest 1 to 13, Category 2: Dest 14 to 20,
SKIP-FWD is set to 5, and
Current destination is 1.
Pressing the SKIP-FWD button selects destination channels 1 → 6 → 11 13
14 → 19 → 20 → 21 → 26 → 31 → and so on.
The categories are user programmable source or destination channel groups. They are
set under Category accessed from each Web-based Control page.
[Web-based Control: Router System Settings > Source Name > Category]
[Web-based Control: Router System Settings > Destination Name > Category]
See section 5-4-3-12. "BTN ASSIGN" for details on how to assign these buttons.
6-1-1-2. TENKEY (MFR-39RU/39RUA)
The TENKEY button is used to enable Tenkey mode. Tenkey mode allows you to select
source and destination channels using the numeric keypad that appears on the remote
control panel. (Supported only for MFR-39RU/39RUA.)
Category buttons Numeric keypad
RESET
CANCEL
MFR-39RU
REMOTE CONTROL UNIT
POWER
BUSY
LOCK
SETUP
7
4
1
8 9 0
TENKEY
CANCEL
5
2
6
3
CANCEL
UP
PAGE
ENTER
PAGE
DOWN
SRC-CSRC-BSRC-A
DST-A DST-B DST-C
DST-D DST-E DST-F
