133

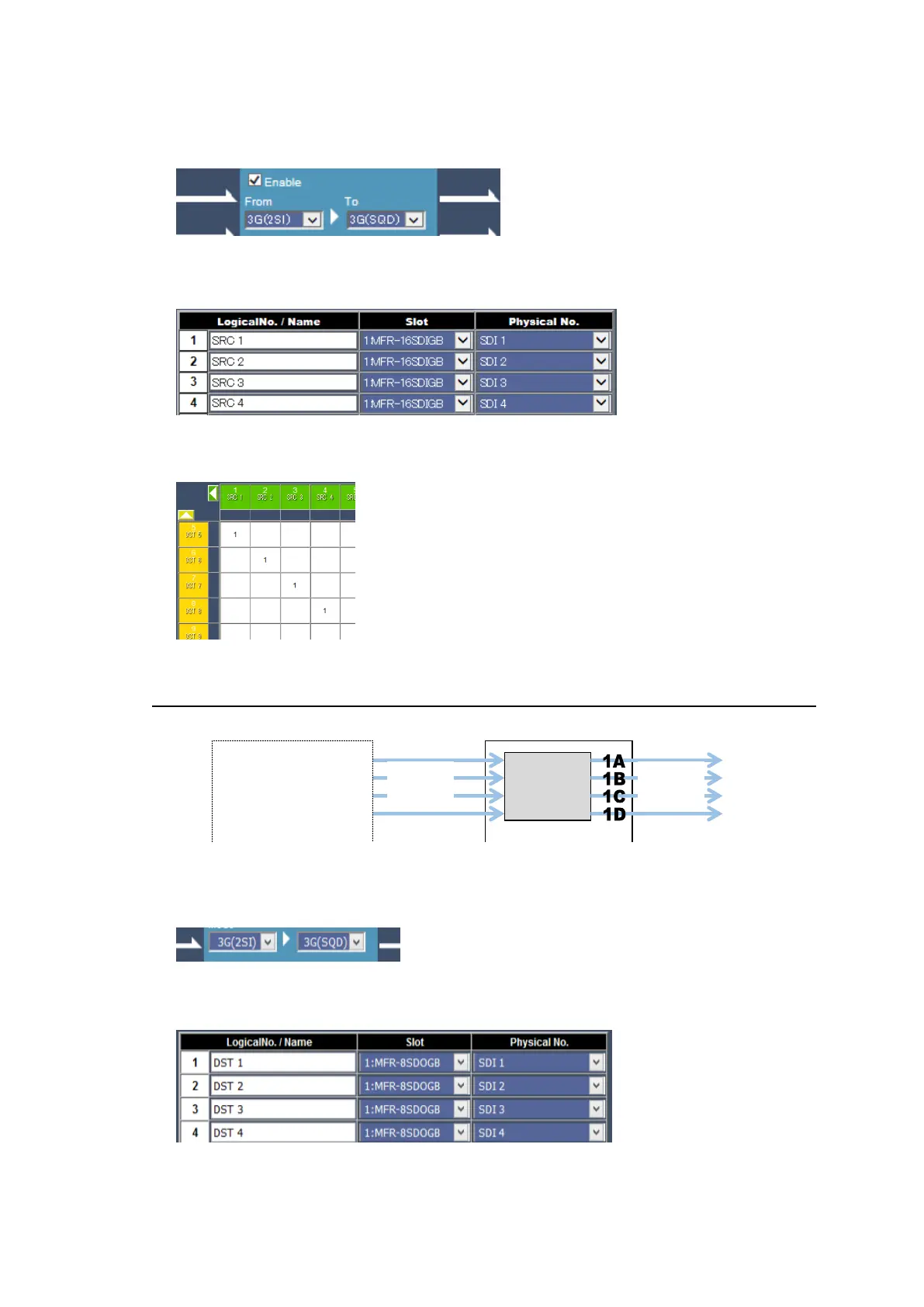

1) Open the Gearbox Settings page in the Web GUI and select signal formats under From
and To as shown below for a Gearbox in the MFR-16SDIGB card block. (This example
sets Gearbox 1 on the Slot 1 card.)
2) Open the Source Assignment page in the Web GUI and assign the physical channels
(SDI1-4) to logical channels (SRC 1-4).
3) Use a remote control unit or the Crosspoint page in the Web GUI to assign output
channels to SRC1-4.
8-3-2. Converting 2SI to SQD Output (MFR-16SDOGB)
1) Open the Gearbox Settings page in the Web GUI and select signal formats under From
and To as shown below for a Gearbox in the MFR-16SDOGB card block. (This example
sets Gearbox 1 on the Slot 9 card.)
2) Open the Destination Assignment page in the Web GUI and assign the physical
channels (SDI1-4) to logical channels (DST 1-4).
3) Use a remote control unit or the Crosspoint page in the Web GUI to assign input channels
to DST1-4.
MFR-16SDOGB
MFR-5000
routing
Gearbox 1
Quad Link
3G-SDI
(2SI)
Quad Link
3G-SDI
(SQD)
