8. Gearbox Feature (MFR-16SDIGB/16SDOGB)
Optional MFR-16SDIGB/16SDOGB cards support Gearbox features, in which video signal
conversions between 12G-SDI and Quad Link 3G-SDI, and between 2SI and SQD are available.
Gearbox features
Conversion between 12G-SDI and Quad Link 3G-SDI (including asynchronous input)
Conversion between 2SI and SQD
Clean switch after conversion by AVDL (Automatic Variable Delay Line)
Also allows Gearbox I/O delay selection (excluding 2SI / SQD conversions)
Genlock or Line lock synchronization
H/V ANC data pass-through
8-1. MFR-16SDIGB / 16SDOGB Cards

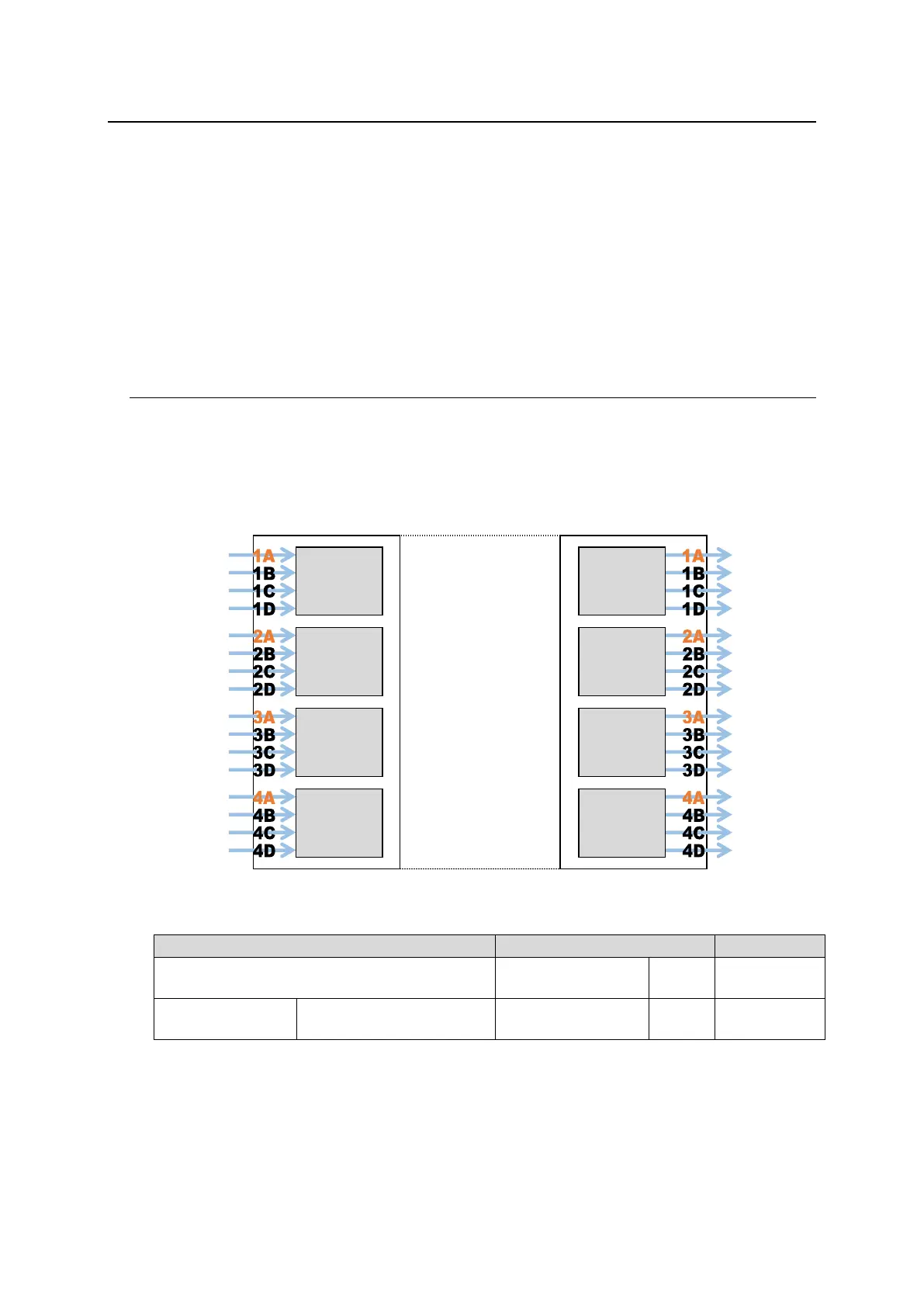

MFR-16SDIGB / 16SDOGB cards have four built-in Gearboxes that can respectively perform
signal conversions and output test patterns.
Four A connectors (1A, 2A, 3A and 4A) can support 12G-SDI signals. If a 12G-SDI signal is
input to a Gearbox, other connectors are disabled.
Supported formats
3840 x 2160/59.94p
3840 x 2160/50p
Quad Link 3G-SDI
(Level-A)
SQD (Square Division)
2SI (2-Sample Interleave)
3840 x 2160/59.94p
3840 x 2160/50p
To Next Page
