FOR-A MFR-3000 User Manual

31
If an audio input stereo pair meets the following conditions, set these channels to ON in the
[Web-based Control: Audio Settings page]. If set to ON, the channels are synchronized to
the external reference input and resampled to 48 kHz.
 Audio signals of other frequencies than 48kHz
 Audio signals asynchronous to the external reference input
IMPORTANT
If setting to OFF for asynchronous or other frequency audio channels, their output will
be noisy or choppy.

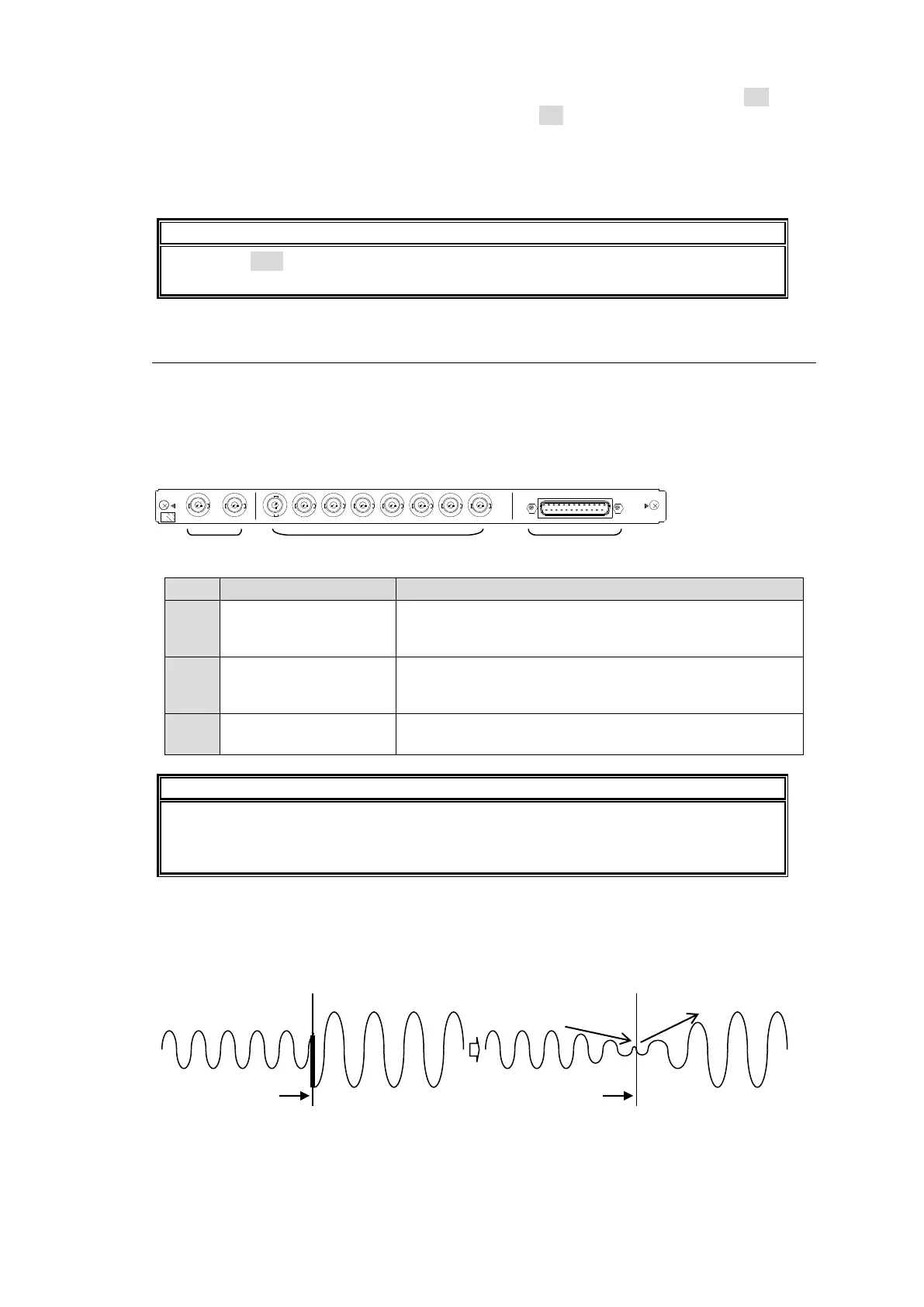

2-4-4. MFR-16ADAO (Embedded / AES / Analog Output)
MFR-16ADAO is an audio output card with D/A converter. Each card can output the same
audio (up to 8 stereo pairs, 16 channels) from 2 SDI, 8 AES/EBU and analog (4 stereo pairs)
output connectors.
Up to 8 cards can be installed into Slot No. 09 to 16.
► See section 2-1-1. "Matrix Size Chart."
No.
Name
Description
1
SDI OUT1
SDI OUT2
Outputs SDI audio embedded SDI signals (8 stereo pairs,
16 channels), BNC x 2
* Supported video formats: 1080/59.94i and 1080/60i
2
DIGITAL AUDIO OUT
1/2 to 15/16
Outputs AES/EBU signals (8 stereo pairs, 16 channels),
unbalanced, 75-ohm, BNC x 8
* Output audio is synchronized with the REF IN2 input.
3
ANALOG AUDIO OUT
1 to 8
Outputs analog audio signals (4 stereo pairs, 8 channels)
balanced or unbalanced, 25-pin D-Sub x 1 (female),
IMPORTANT
When MFR-16ADAO cards are installed, Black Burst signal should be input to REF
IN2.
MFR-16ADAO cards can output audio signals input to MFR-16ADI or MFR-16AAI.
 V-Fade
The V-Fade function can erase switching noise by setting fade-in and fade-out duration time.
V-Fade should be set in the [Web-based Control: Audio Settings page].
2
1
3
SDI OUT
7/8 3/4
1
1/2
5/6
15/16 13/14 11/12
9/10
2
OUT OUT
(No.)
1 ~ 8
ANALOG AUDIO ADAO
DIGITAL AUDIO
Crosspoint switching
Crosspoint switching
Fade-in
Fade-out
