26
Set up output signals in the Web-based Control Software as shown below.
Gearbox settings
In the left side of the Web-based Control screen, click to select [(Main Unit Settings) -
Gearbox Settings] in the menu tree to display the settings page.
This page allows you to specify output signals and conversion modes.
Destination Assignment
Open the [Web-based Control: Router System Settings - Destination Assignment page].
This page allows you to assign physical outputs to logical output channels.
Destination Name
Open the [Web-based Control: Router System Settings - Destination Name page].
This page allows you to change destination names displayed on Remote Controllers.
2-4. Audio Input / Output Cards
Source and destination assignment procedures for audio signals are the same as those for SDI
signals. Refer to the previous chapter This chapter describes audio specific setup. Audio signals
should be setup in the Web-based Control pages
► See [Web-based Control: Audio Settings page].

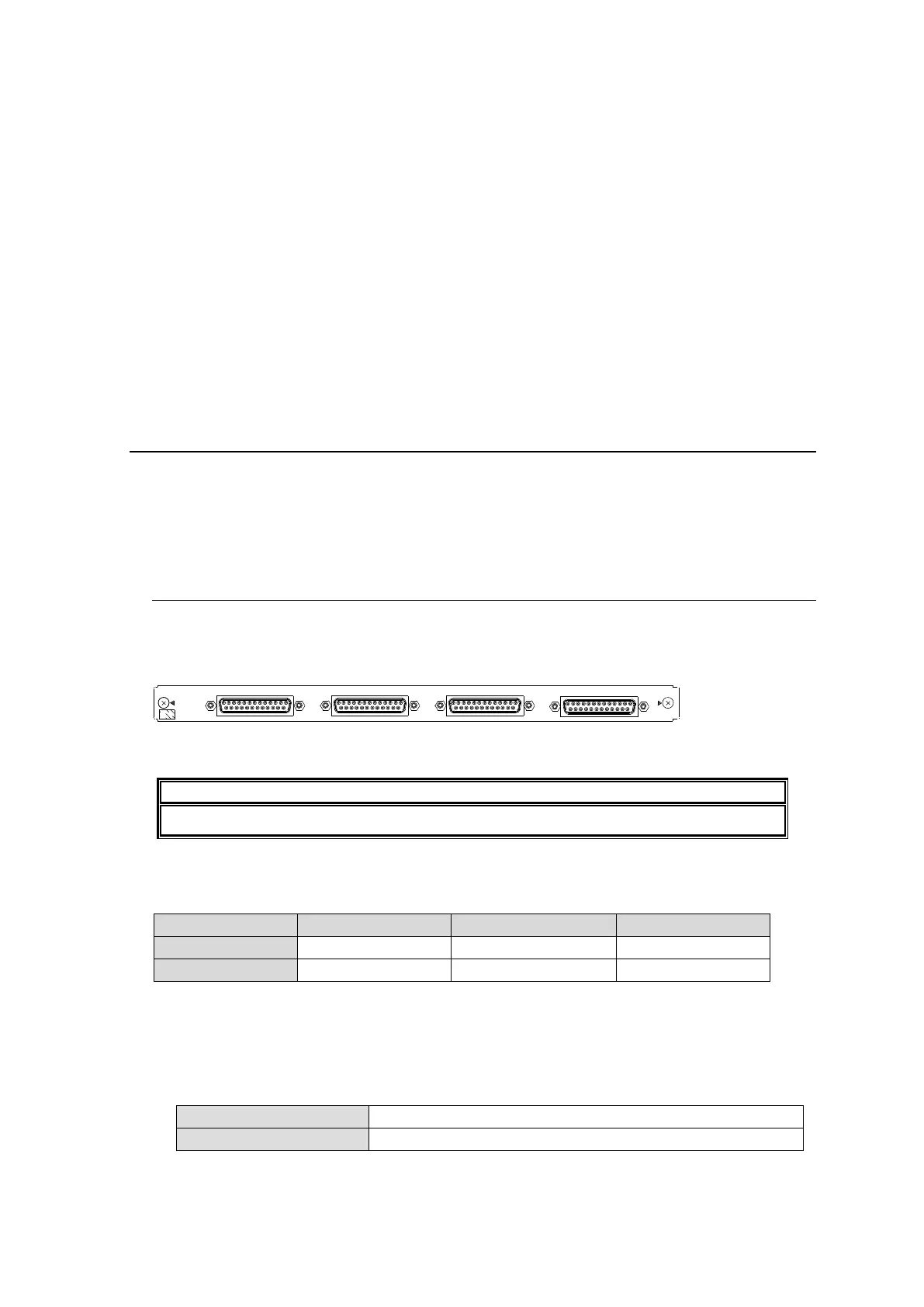

2-4-1. MFR-16AAI / 16AAIEX (Analog Input)
MFR-16AAI/16AAIEX is an analog audio input card with A/D converter.
Up to 4 cards can be installed into Slot No. 05 to 08.
► See section 2-1-1. "Matrix Size Chart."

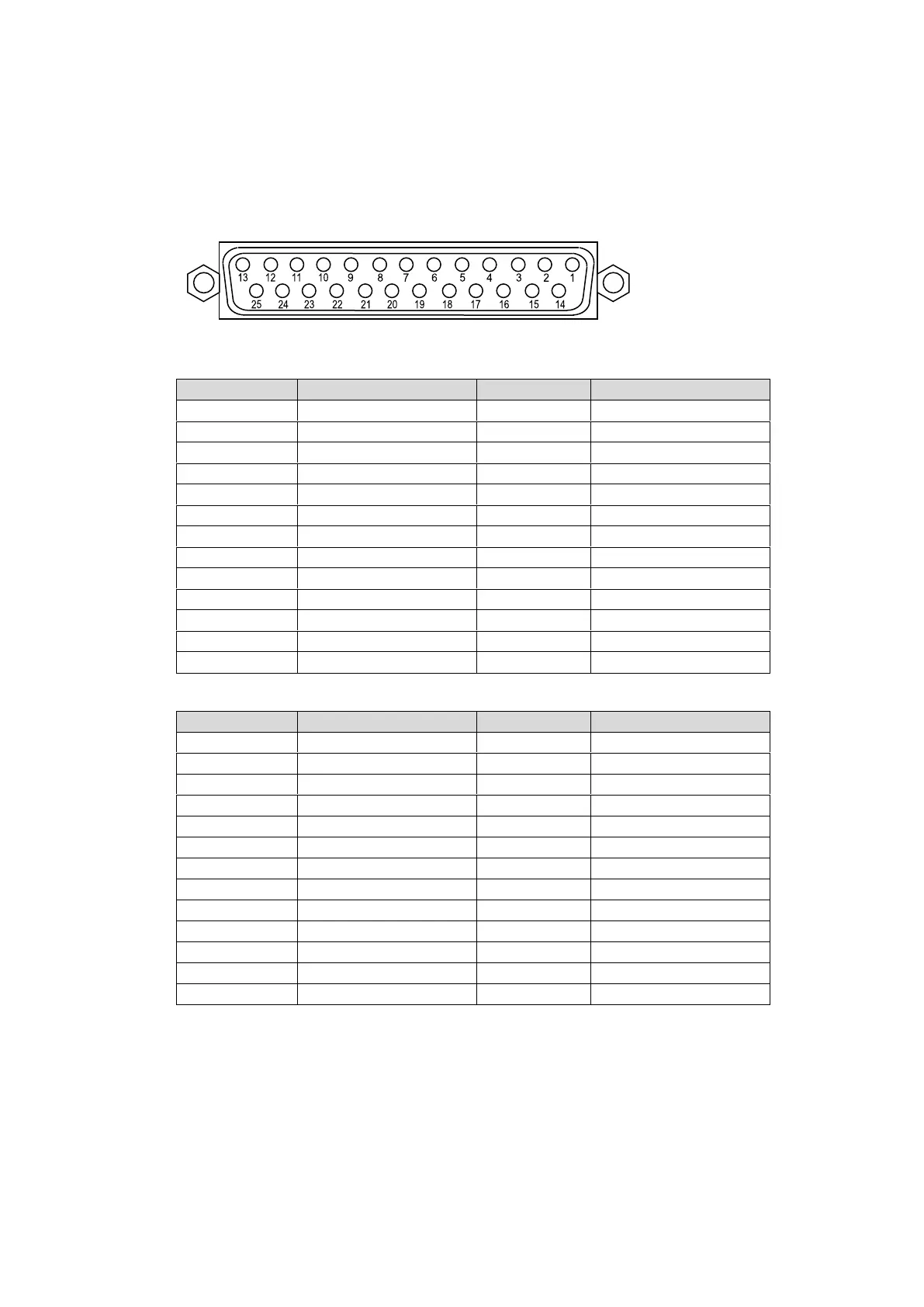

25-pin D-sub (female) x 4 (16 stereo pairs, 32 channels), 600 Ohm or high impedance
When using an MFR-16AAI, a Black Burst signal should be input to REF IN2.
To output analog audio signals input to MFR-16AAI and MFR-16AAIEX, a compatible analog
audio output card should be installed into the MFR main unit.
✓: Compatible, -: Incompatible
Analog Audio Input
Select the input impedance and adjust the input level per each stereo pair (2 channels) in the
[Web-based Control: Audio Settings page].
Select 600 ohm or High impedance for analog input.
Adjust analog input level.
(No.)
AAI
ANALOG AUDIO
IN
1 - 8 9 - 16 17 - 24
25 - 32
To Next Page
