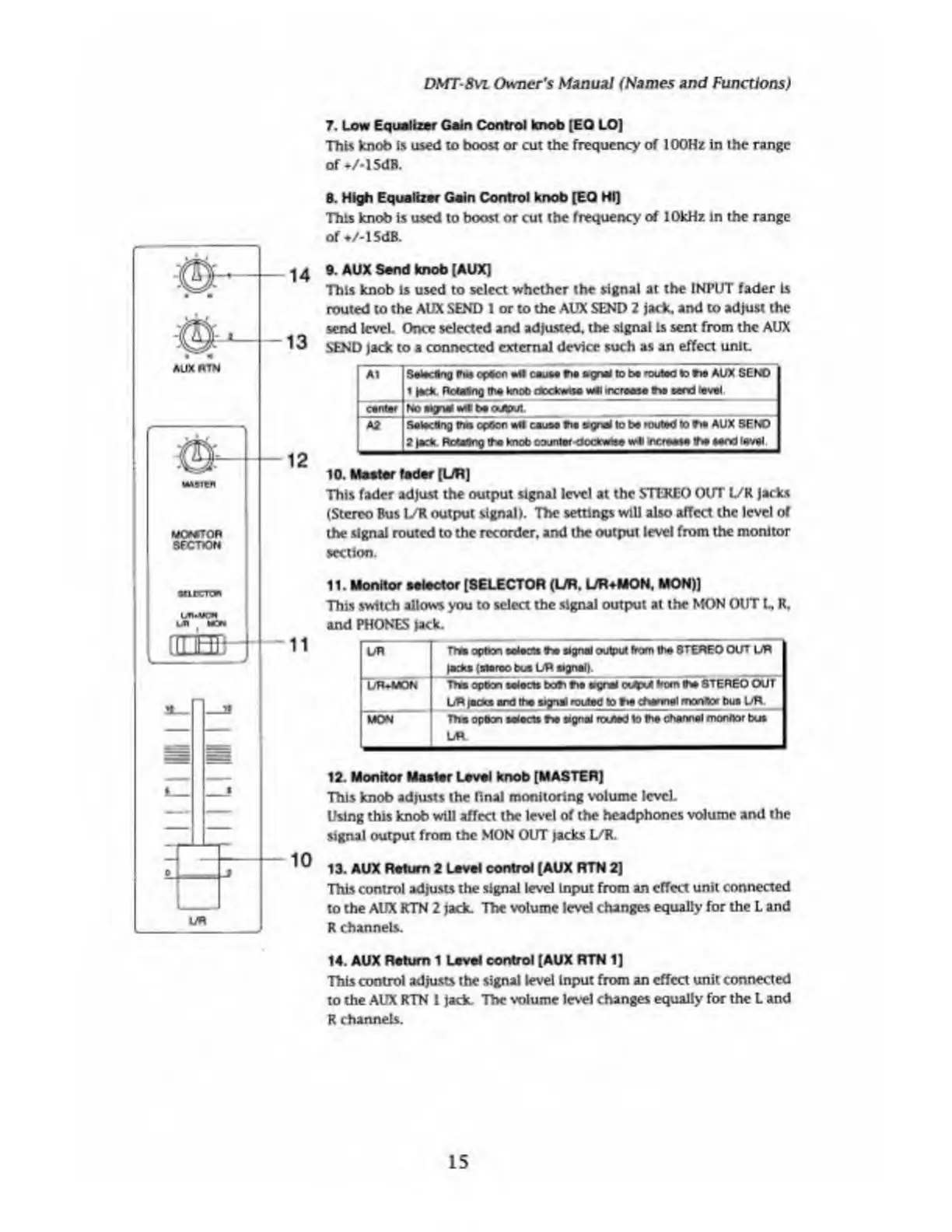

DMT-Svl Owner's Manual (Names and Functions)
7. L ow Equalize Gain Control knob [EQ LO]
This knob is used to boost or cut the frequency of 100Hz in the range
of */-15dB.
8. High Equalizer Gain Control knob [EQ HI]
This knob is used to boost or cut the frequency of 10kHz in the range
of ♦ /-15dB.
9. AUX Send knob [AUX]
This knob Is used to select whether the signal at the INPUT fader Is
routed to the AUX SEND 1 or to the AUX SEND 2 jack, and to adjust the
send level. Once selected and adjusted, the signal is sent from the AUX
SEND jack to a connected external device such as an effect unlL
At
Setec«ng to* option «N caueo mo ft gnat to bo muted to too AUX SENO
1 jock. Rctedng ttw knob ctockwtta vwli incroas# the send level
center
No ntyru* bo output.
A2
Selecting to* option Ml cause Via sgnai to bt roofed to V* AUX SEW
2 jack. RcfeOng tfa knob oounter-clockwise w* »nc r*«e V* Mod lava!
10. Master fader [L/R]
This fader adjust the output signal level at the STEREO OUT L/R jacks
(Stereo Bus L/R output signal). The settings will also affect the level of
the signal routed to the recorder, and the output level from the monitor
section.
11. Monitor selector [SELECTOR (UR. L/R+MON, MON)]
This switch allows you to select the signal output at the MON OUT L, R.
and PHONES jack.
UR
Thu option salt icts Via signal output from tha 8TEREO OUT UR 1
lack* {stereo to* UP signal |. I
“UTWMON
Ttea option soli
ids boto to# ®grW ou*xX *om INe STEREO OUT 1
UR |ntxs and tha signal routed to Via channel montic* bus UR
MON
TTm option tali
UR.
ids V* signal routed to toe channel monitor bus
12. Monitor Master Laval knob [MASTER)
This knob adjusts the final monitoring volume level.
Using this knob will affect the level of the headphones volume and the
signal output from the MON OUT lacks l/R.
13. AUX Raturn 2 Laval control [AUX RTN 2]
This control adjusts the signal level Input from an effect unit connected
to the AUX RTN 2 jack. The volume level changes equally for the L and
R channels.
14. A UX Raturn 1 Laval control [AUX RTN 1]
This control adjusts the signal level Input from an effect unit connected
to the AUX RTN I jack The volume level changes equally for the L and
R channels.
15
