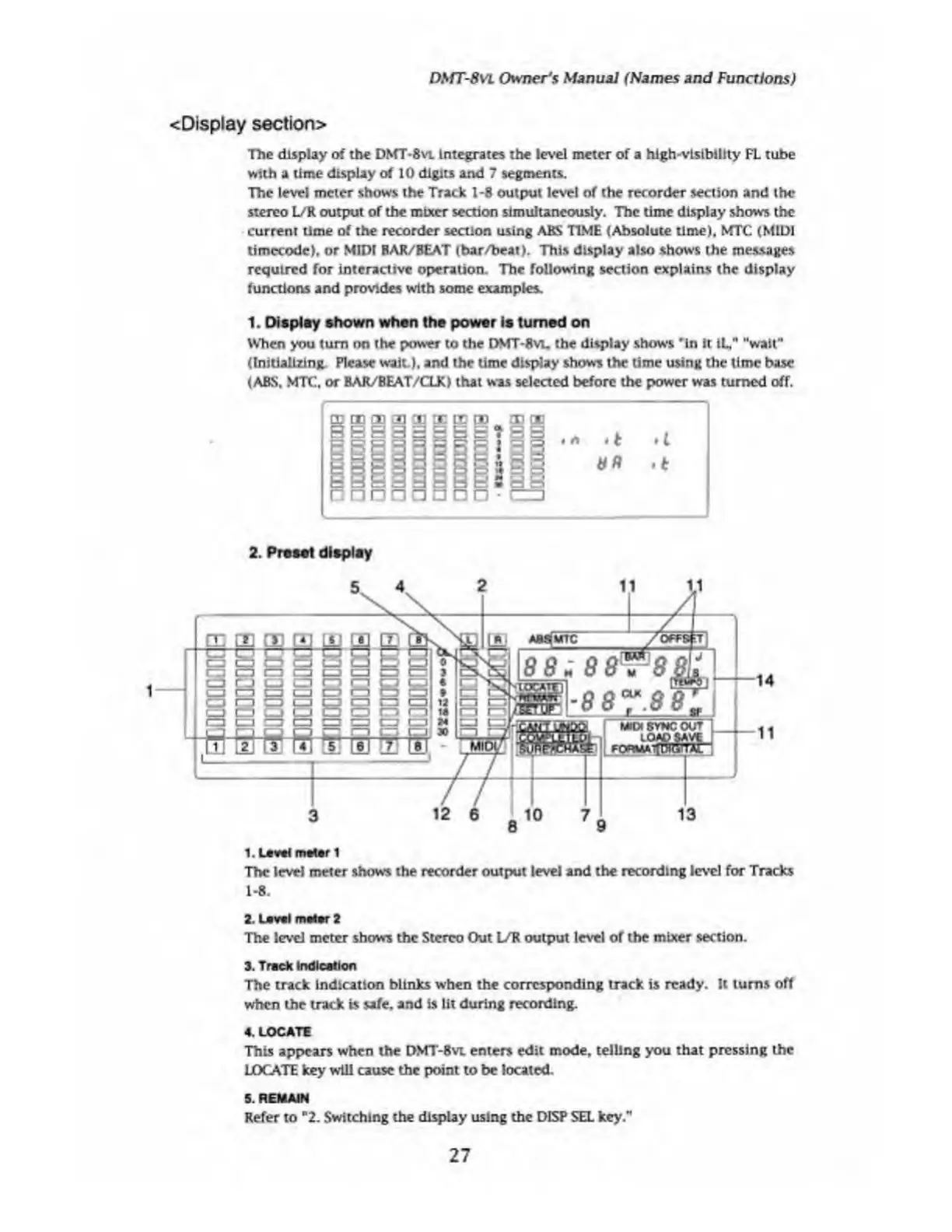

DMT-8VL (Miter's Manual (Names and Functions)
<Display section>
The display of the DMT-8 vl Integrates the level meter of a high-vtsiblllty FL tube
with a time display of 10 digits and 7 segments.
The level meter shows the Track 1-8 output level of the recorder section and the
stereo L/R output of the mixer section simultaneously. The time display shows the
current time of the recorder section using ARS TIME (Absolute time). MTC (MIDI
limecodc), or MIDI BAR/BEAT (bar/beat). This display also shows the messages
required for interactive operation. The following section explains the display
functions and provides with some examples.
1. Display shown when the power is turned on
When you turn on the power to the DMT-8VL, the display shows *ln it iL," "wait"
(Initializing. Please wait.), and the time display shows the time using the time base
(ABS, MTC, or BAR/BEAT/CLK) that was selected before the power was turned off.
2. Preset display
5 4 s
\
nr rn m m r * i f «i rn rVk NN ^jn [*1 a*s|utc
HanauBEI
1! V
C_J
_7
y l 1-8 8™ .8 S i
[21 fT hi] ms lei r V [e|
1. L evel meter 1
The level meter shows the recorder output level and the recording level for Tracks
1 - 8 .
2. Level meter 2
The level meter shows the Stereo Out L/R output level of the mLxer section.
3. Track Indication
The track Indication blinks when the corresponding track is ready. It turns off
when the track is safe, and is lit during recording.
4. LOCATE
This appears when the DMT-8 vl enters edit mode, telling you that pressing the
LOCATE key will cause the point to be located.
5. REMAIN
Refer to "2. Switching the display using the DISP SEL key."
27
