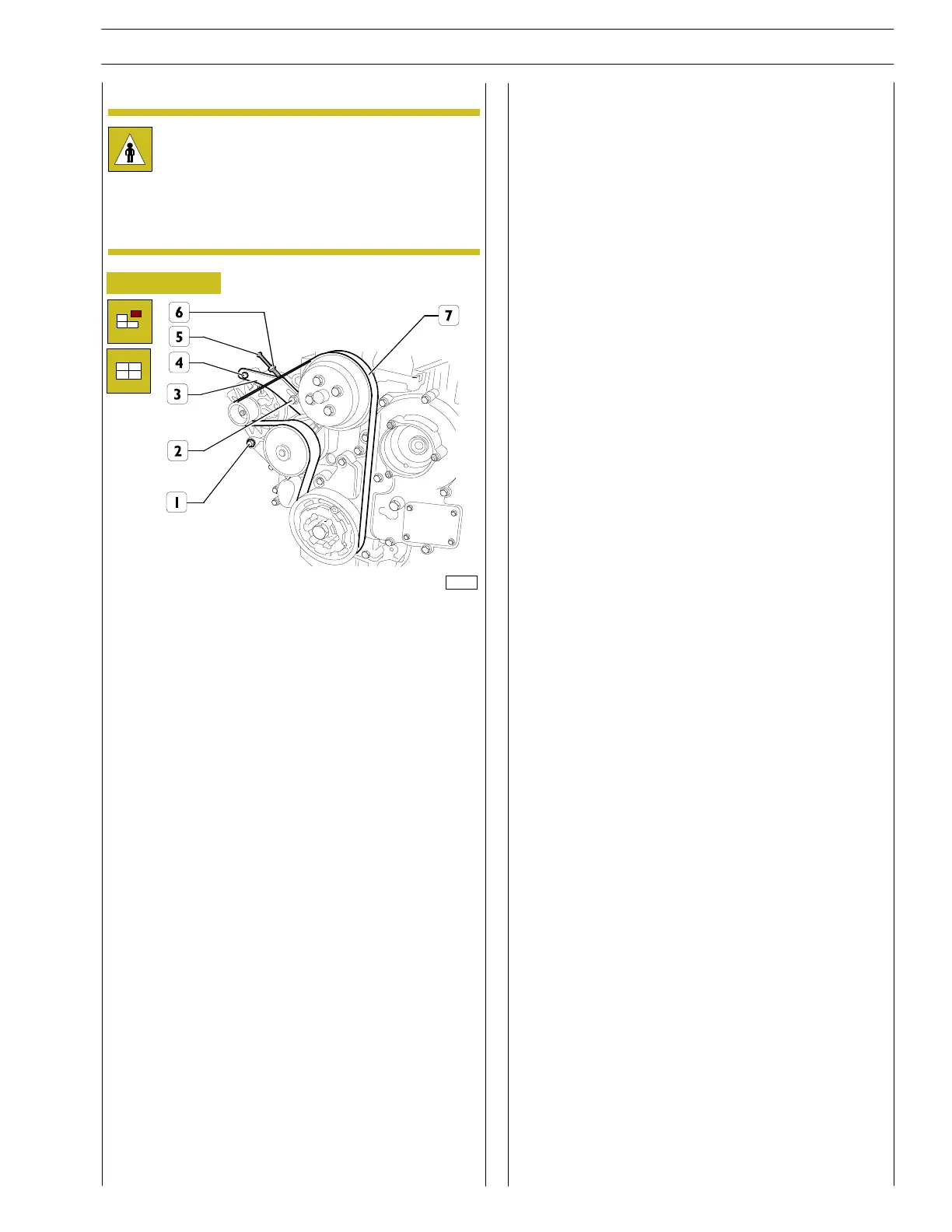

Figure 112
127697
- Loosen screw (4) and the relevant nut on belt stretching
bracket (3).
- Loosen the screws (1, 2, 5) and the screw nut (6) in order
to withdraw the belt (7).
- Fit the new belt (7) on the pulleys and guide rollers.
- Tighten the driving belt (7) screwing up screw (5) until the
screw (2) reaches the end of the groove which is on the
bracket (3). Tighten the nut (6) and the screw (1).
- Tighten the screw (4) and the bolt (1) that fixes the
alternator to the support.
Alternator belt replacement
Warning: with switched off motor (but still hot) the
belt can operate without advance notice.
Wait for the motor temperature lowering to avoid
very serious accidents.
SECTION 3 - INDUSTRIAL APPLICATION
67
F32 SERIES
Print P2D32F005 E Base - April 2009
