FPT F32 MNS - Page 58

127697
119109
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14

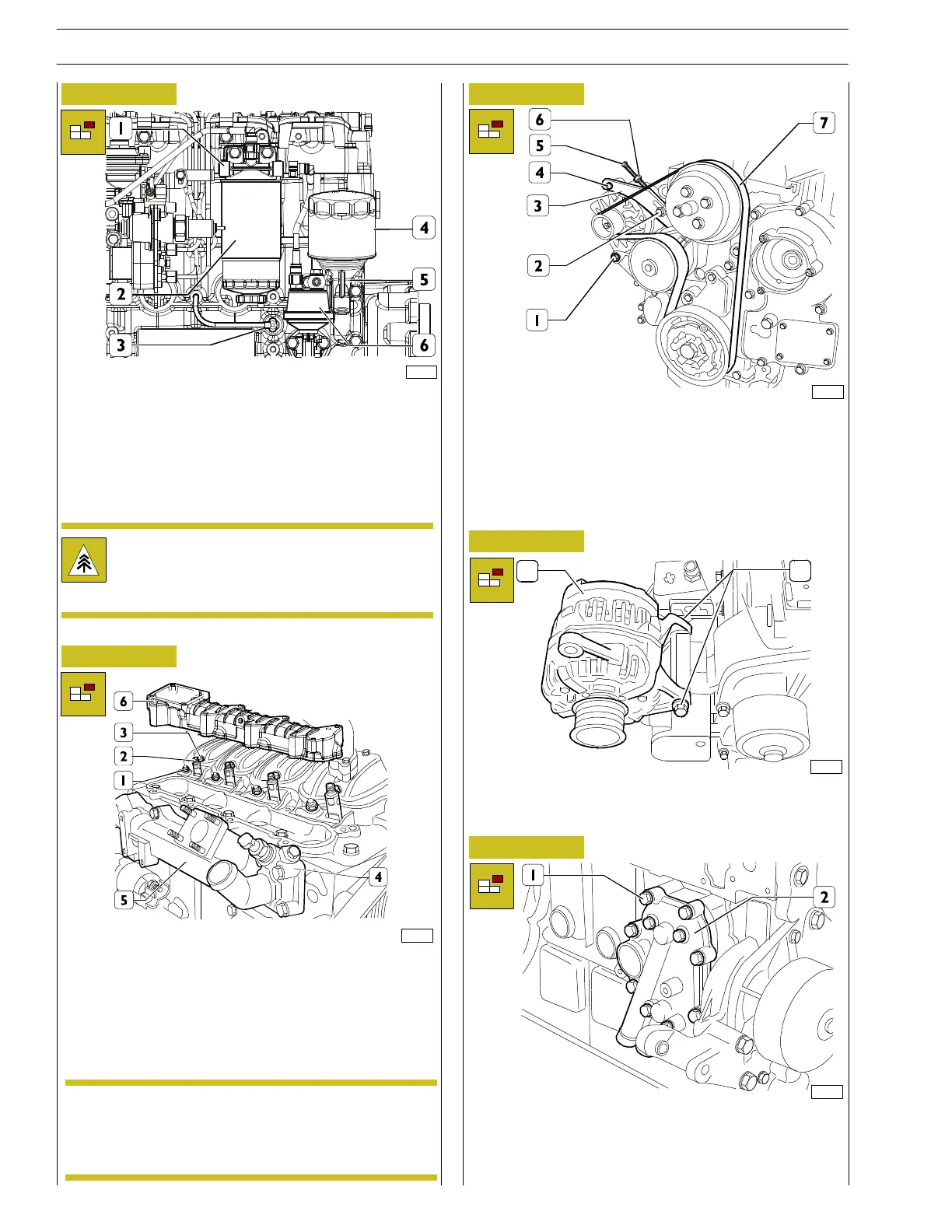

- Place a container under the diesel fuel filter and unscrew
the condense drainage faucet under said filter;
completely drain the diesel fuel container therein.
- Disassemble the diesel fuel filter (1), the filter su pport
(2), the priming pump (3), the oil filter (4), the oil filter
support (5), and the KSB water sensor (6).
- Unscrew the injector support fastening screws (1), disas-
semble the injector supports and remove the injectors (2).
- Loosen the screws (3) and remove the tappet covers.
- Remove the intake manifold (6).
- Remove the thermostat unit (4) and the exhaust
manifold (5).
- Place a container under the heat exchanger (2) to collect
the cooling liquid contained therein.
- Loosen the screws (1) and disassemble the heat
exchanger unit (2).
Warning! The oil filter contains a certain quantity of
engine oil.
Collect the engine oil and dispose it complying with
the applicable laws and regulations in force.
On the c entral cover there is a lubrication oil
vapour blow-by valve.
All the gaskets must always be replaced in phase of
assembly.
NOTE
- Loosen the screw (4) and the relevant screw nut on the
belt tensioning bracket (3).
- Loosen the screws (1, 2, 5) and the screw nu t (6) in
order to withdraw the belt (2).
- Remove the belt tensioning bracket (3).
- Disassemble the pulleys and the guide rollers.
75686
1
2
- Duly hold th e alternator (1) and detach it from its
support loosening the screw (2): recover nut and
washer.
119721
122435
10
SECTION 3 - INDUSTRIAL APPLICATION
F32 SERIES
Base - April 2009 Prin t P2D 32F005 E
