119111
119113

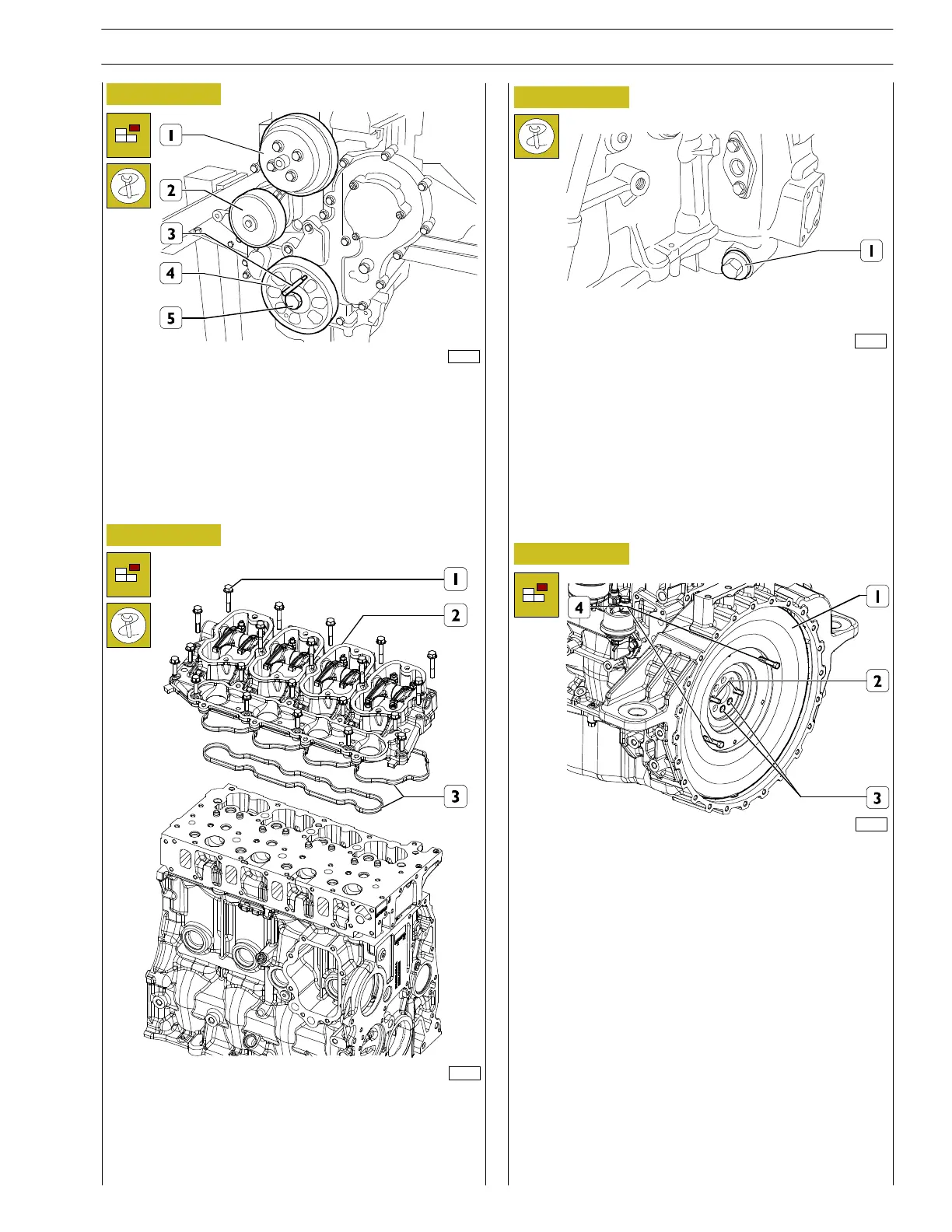

Figure 15
Figure 16
Figure 17
- Remove the electromagnetic joint support (1) and the
water pump (2).
- Loosen the screw (5) and remove the pulley (4), using
a pin (3).
- Lo osen the fastening screw s (1), remove the overhead
holding the whole rocker arm unit (2) and recover the
two gaskets (3).
- Screw two medium length screws in the ports (4), in
order to secure the flywheel with a sling.
- By means of two guide pins (2) previously screwed in the
engine drive shaft ports (3), guide the flywheel
withdrawal throughout a hoist.
- Withdraw the flywheel casing grommet.
- Withdraw the grommet of the timing gearcase.
Figure 18
- Fit tool (1) 99360330 to the flywheel box and, using a
wrench, lock the flywheel rotation.
- Loosen the screws fastening the flywheel to the engine
drive shaft.
125127
124497
SECTION 3 - INDUSTRIAL APPLICATION
11
F32 SERIES
Pri nt P2D32F005 E Base - April 2009
