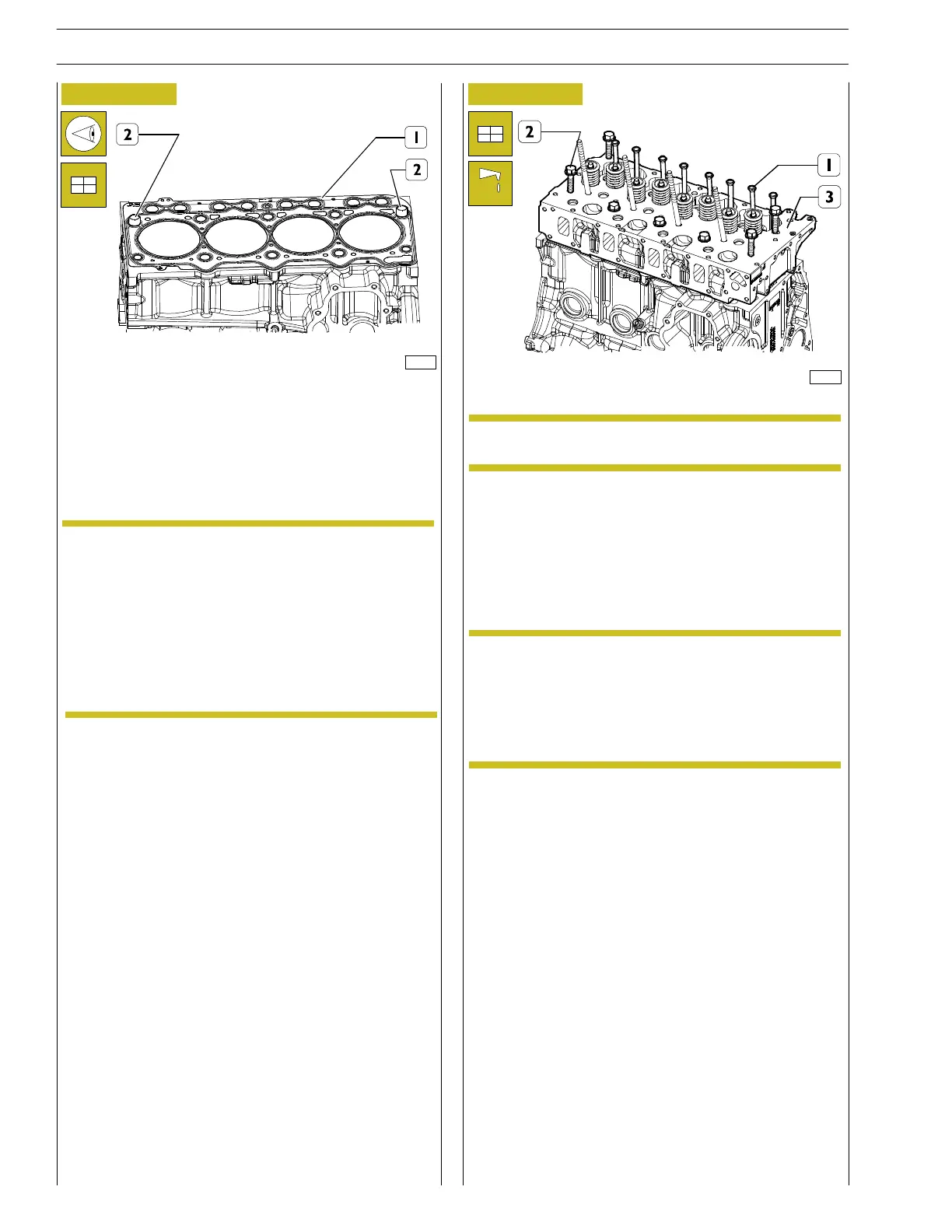

Figure 40
- Fit the gasket (1) on the basement centring i t taking the
pins (2) as a reference. The gasket’s thickness must be
selected based on the piston projection in respect to the
upper plan of the basement.
Check that the block’s laying plan is clean.
Do not grease the gasket. It is recommended to
keep the gasket inside its wrapping until it has to be
fitted.
The fitting direction is univocal and defined by the
centring pins on the basement, which must match
with the ports on the gasket.
119573
NOTE
Figure 41
119115
- Lubricate the head fastening screws (2) and tighten them
to the prescribed torque wrench.
- Place the head (3) on the block taking the centring pins
as a reference.
Always use new screws for assembly.NOTE
The head screws should be tightened in a precise
order.
Therefollowsthelockingsequenceandthe
torques to be applied for each type of screw.
NOTE
18
SECTION 3 - INDUSTRIAL APPLICATION
F32 SERIES
Base - April 2009 Prin t P2D 32F005 E
