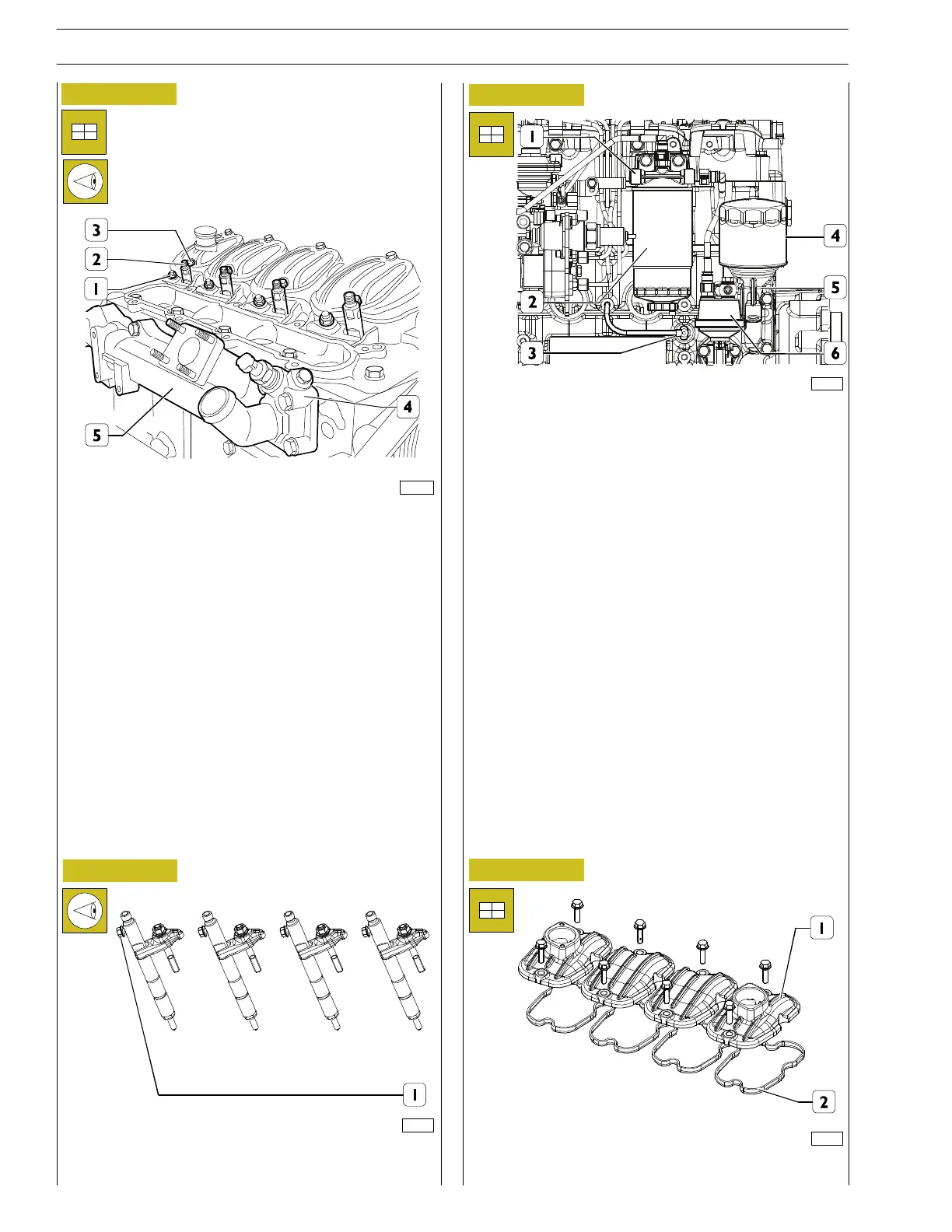

Figure 51
Figure 52
Figure 53
Figure 54
- Reassemble the injectors (2) replacing the grommets.
Tighten the fastening screws(1) to the prescribed torque
setting.
- Make the holes (1) for fuel exhaust all face the same
direction.
- Reassemble the KSB water temperature sensor (6), the
oil filter support (5), the priming pump (3), the diesel fuel
filter support (2), the fuel filt er (1) and the oil filter (4).
- Fit the head covers (1) replacing the gaskets (2).
119721
120020
