4 Wiring up the green cables and the supplied cable tree

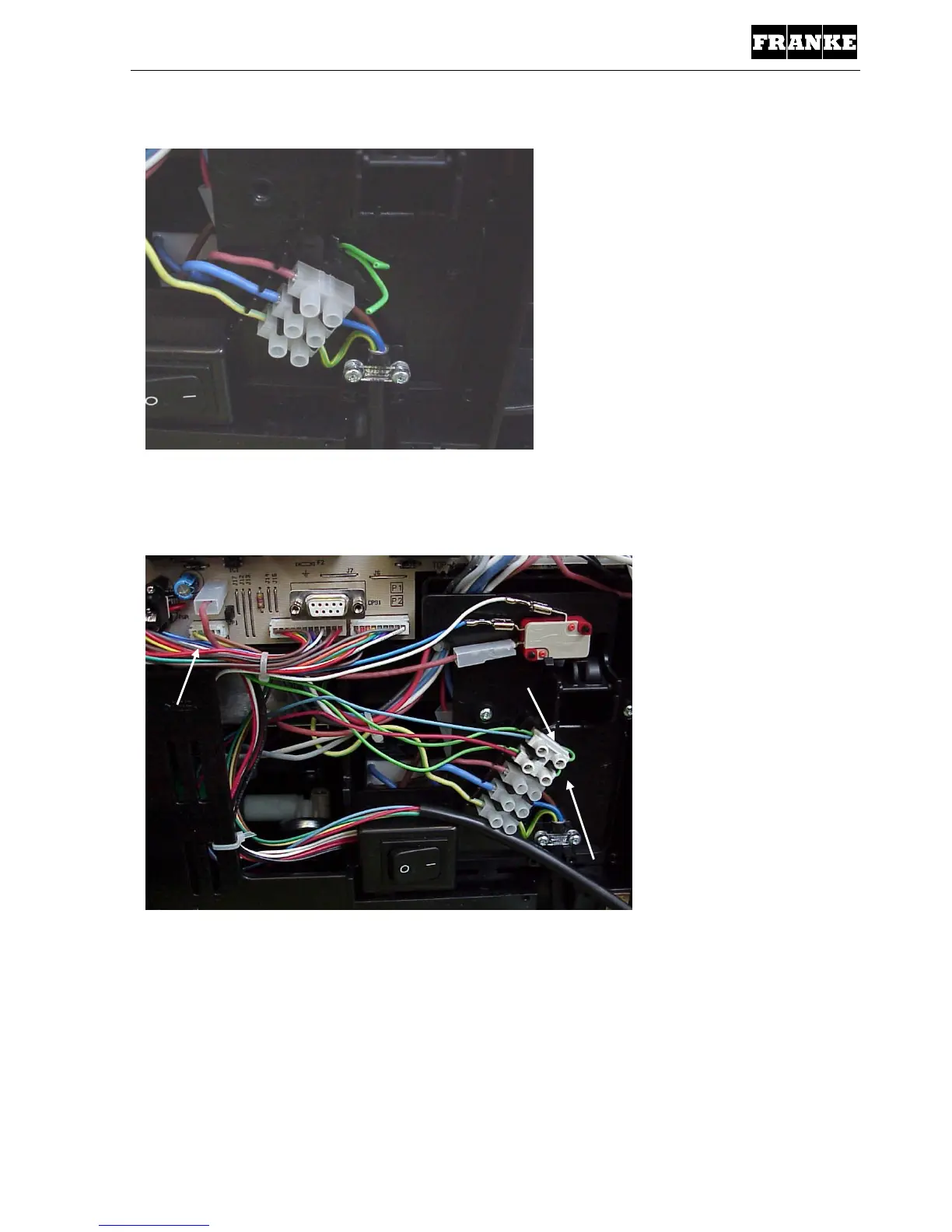

Fig. 5: Pass both green cables coming directly from the transformer through the
opening of the power distributor carrier.
Fig. 6: Remount the power distributor carrier and fasten the terminal strip of the
cable tree to the prepared fixing position (Pos. 1).
Connect the green cables to both sides of the terminal strip
(Pos. 2 / 3). Insert the five-pole plug of the cable tree in Pos. 4.
Pos 1
Pos 2, 3
