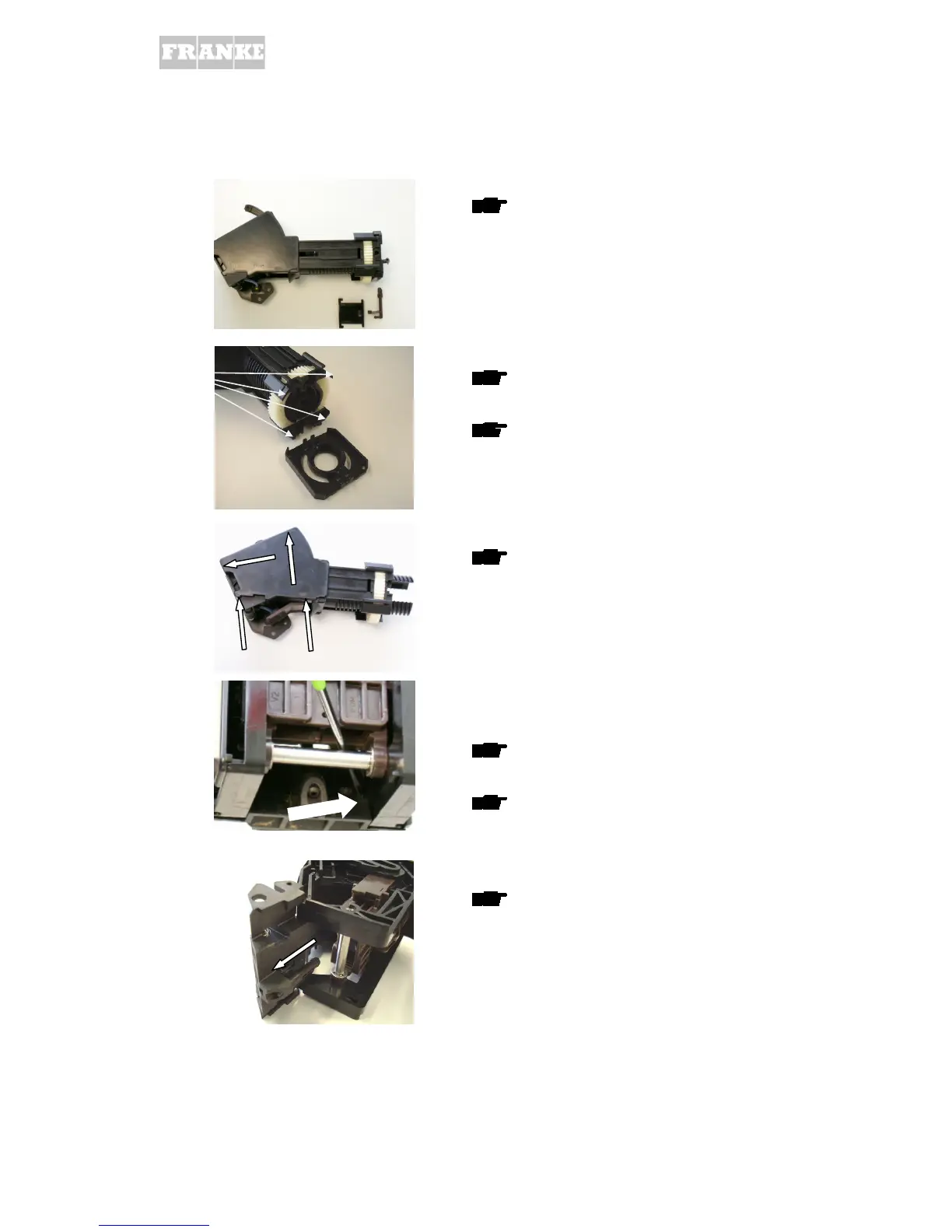

4.5.4. Further dismantling (e.g. for an inspection)
Remove hose protection and outlet pipe
Unclip both from holder
• CAUTION! Small hose o-rings might fall out!
Removing the cap
Use a screwdriver to loosen the 4 marked
spring loaded catches
Remove cap
Removing left + right covers
Use a screwdriver to loosen all 4 marked
spring loaded catches on the inside
• 1 spring loaded catch is located behind the
drainage valve
Use a screwdriver to press in spring-loaded
catch
Remove cover by hand
Removing the drainage valve
Detach drainage valve
