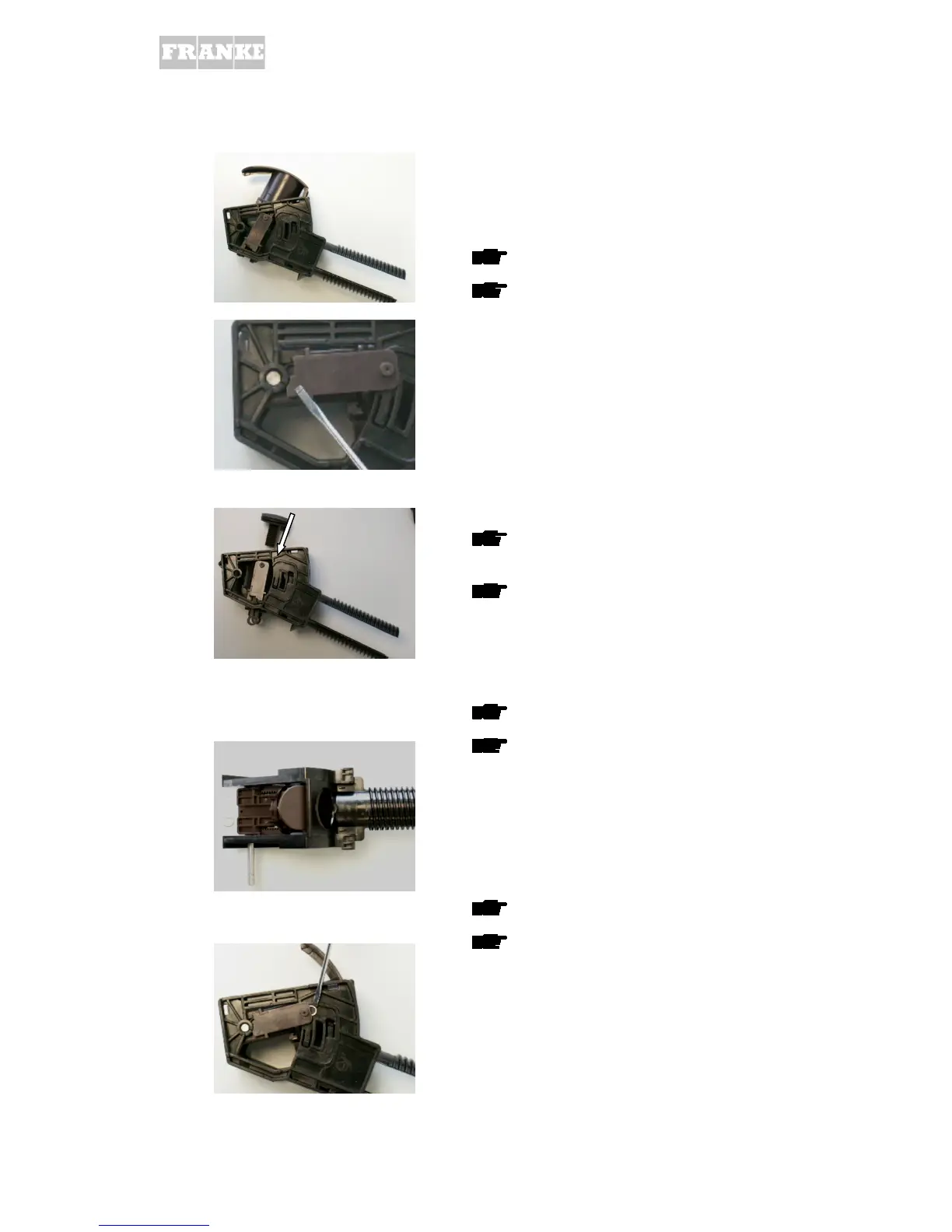

4.5.5. Assembling the brewing assembly
Installing the brewing chamber and toothed
wheel clamp
• CAUTION! Take note of the installation
direction for the toothed wheel clamp!
Insert toothed wheel clamp from the side
Insert brewing chamber into toothed wheel
clamp
Installing the piston and axle
Insert into toothed wheel clamp as far as
the stop
Insert piston toothed rack and press into
brewing chamber
• CAUTION! Take note of installation
direction; water connection upwards!
Insert axle
Fit retaining rings
Installing inner guide rollers
Use a screwdriver to raise peg slightly
Slide guide rollers in underneath
