4.4. Coffee grinder
4.4.1. Mode of operation

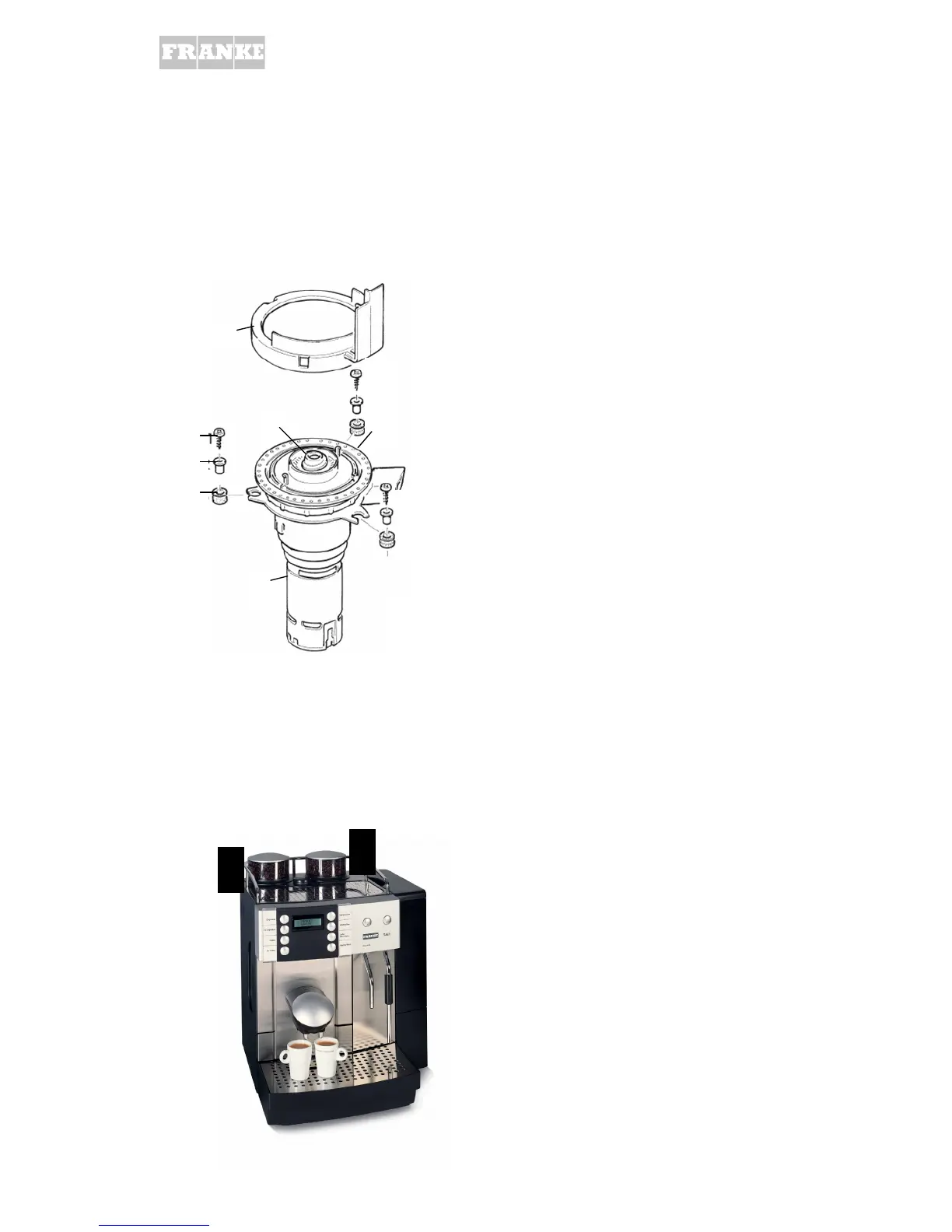

The coffee grinder (grinding unit) comprises:
1 screw
2 Socket
3 Rubber buffer
4 Grinding mechanism adjusting disc
5 Retaining ring for top grinding mechanism
6 Upper grinding ring
7 Grinder motor with bottom grinding
mechanism
The grinding mechanism consists of two parts: the grinding ring and the grinding cone.
The spacing between grinding ring and grinding cone defines whether the coffee is ground
finely or coarsely.
The grinding mechanism produces the coffee grounds which are then fed into the brewing
unit via a chute.
Specifying the machine sides for right (R) and
left (L) grinder.
5
1
2
3
7
4
6

Franke Flair Specifications

General

Type	Espresso Machine
Pump Pressure	15 bar
Product Type	Coffee Maker
Brand	Franke
Model	Flair
Voltage	220-240 V
Frequency	50-60 Hz
Material	Stainless Steel
Programmable	Yes
Auto Shut-off	Yes
Filter Type	Metal Filter
Coffee Output	Single or Double Espresso
