Franke Flair Service Manual

TD-100342.doc
16
(a)
(b)

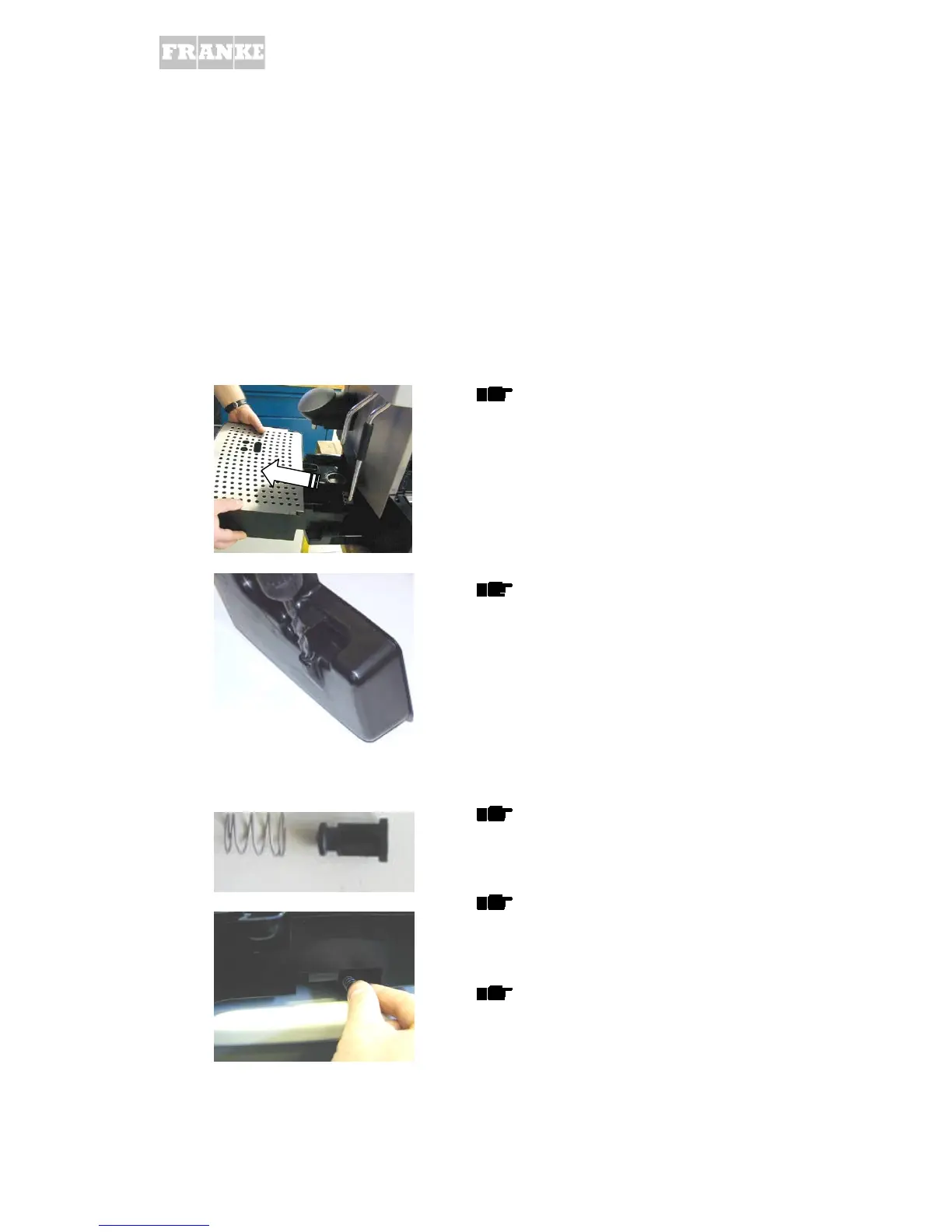

3.2. Installation instructions for drainage connection*
3.2.1. Assembling the drainage
The drainage kit comprises:
- 1 tank valve pressure spring (Art. No. 1P 315 019)
- 1 valve body, black (Art. No. 1P 315 020)
- 1 O-ring 6.02 x 2.62 mm (Art. No. 1P 315 018)
- 1 drainage hose, black (Art. No. 1P 315 197)
Preassembly
• Tool required: drill, drill bit D=10mm
Remove drip tray with drip plate from
machine
Drill open drainage opening provided
using D=10 mm drill bit, and burr
Securing the valve and drainage hose
Fit tank valve pressure spring (a) to valve
body (b)
Insert valve body inwards through
borehole in drip tray with tank valve
pressure spring already fitted to valve
body
Fit O-ring from inside of drip tray (photo)
(*Not available in the US)

Franke Flair Specifications

General

Type	Espresso Machine
Pump Pressure	15 bar
Product Type	Coffee Maker
Brand	Franke
Model	Flair
Voltage	220-240 V
Frequency	50-60 Hz
Material	Stainless Steel
Programmable	Yes
Auto Shut-off	Yes
Filter Type	Metal Filter
Coffee Output	Single or Double Espresso
