Franke Flair Service Manual

TD-100344.doc
51
5. Control system subassembly /diagram
5.1. Front panel control system (Flair electronics, complete)
5.1.1. Mode of operation
The front panel control system controls the programmed product dispensers via input on
the operating keypad.
5.1.2. Replacing the front panel control system

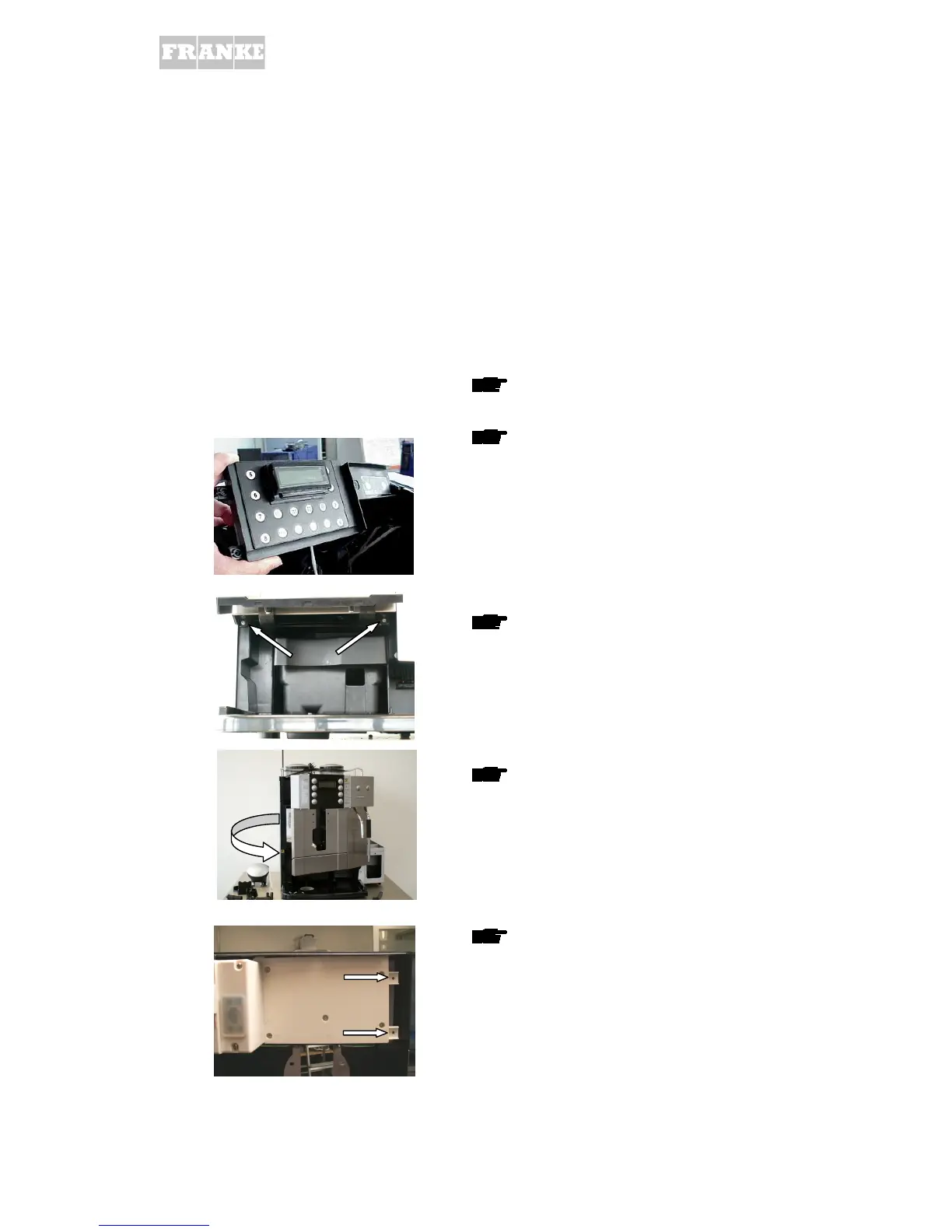

Dismantling the front panel control system
Remove housing cover (top) as described
in Chap. 4.3.4.
Remove coffee dispenser with frother
heads as described in Chap. 4.2.1.
Unscrew the 2 screws behind grounds
container flap
Open front panel and open out to the right
Unscrew the 2 screws (arrows) on front
panel control system
