Franke Flair - Cable Glands; Connection of the Cable Tree to the Inkasso3 PCB

Franke Kaffeemaschinen AG
TD-100441.doc 5 / 7
5 Cable glands

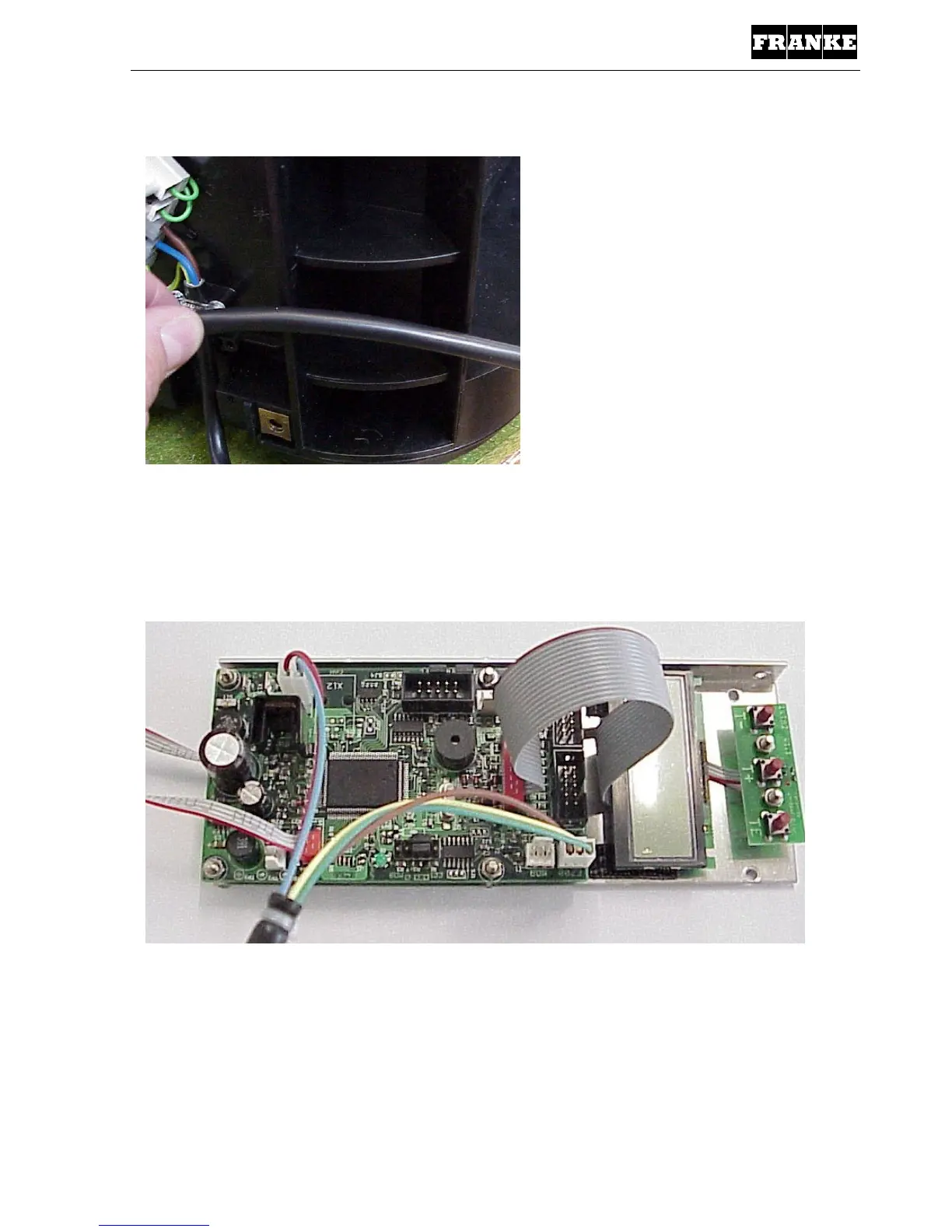

Fig. 7: To prevent the cables from hindering the installation of the rear and side walls,
two gaps must be made at the Positions 5 shown here.
6 Connection of the cable tree to the Inkasso3 PCB
Fig. 8: Connect both plugs at the appropriate positions.
Pos. 5
Pos. 5
