Franke Flair Service Manual

TD-100343.doc
22

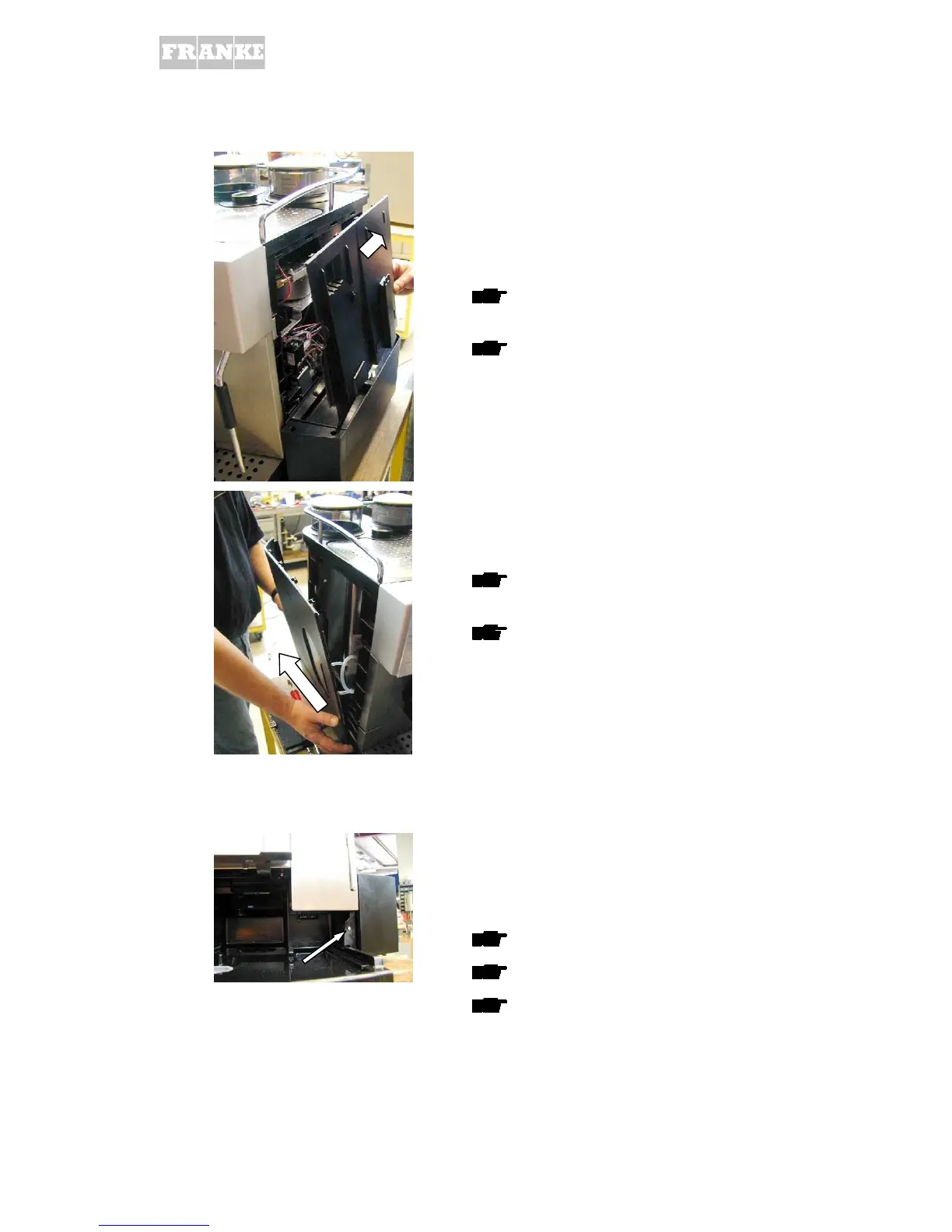

4.3.2. Removing the side panels
Removing the right hand side panel
Access to:
- Geared motor
- Valves
- Unit heater
- Pumps
Dismantle rear panel as described in
Chap. 4.3.1 before removing side panels
Slide side panel by hand out of guide,
sideways to the rear
• CAUTION! Disconnect reed sensor for water
level indicator on cable connector!
Removing the left hand side panel
Access to:
- Brewing unit
Dismantle rear panel as described in
Chap. 4.3.1 before removing side panels
Slide side panel by hand out of guide,
sideways to the rear
4.3.3. Removing the water tank and base
Removing the water tank with base
Access to:
- Flowmeter
- Pumps
Remove water tank
Pull out coin box
Unscrew the 5 screws from tank base and
remove
• CAUTION! Remove 1 screw (arrow) as
illustrated!

Franke Flair Specifications

General

Type	Espresso Machine
Pump Pressure	15 bar
Product Type	Coffee Maker
Brand	Franke
Model	Flair
Voltage	220-240 V
Frequency	50-60 Hz
Material	Stainless Steel
Programmable	Yes
Auto Shut-off	Yes
Filter Type	Metal Filter
Coffee Output	Single or Double Espresso
