3.3. Operating instructions
• Here you will find the Operating instructions for the Flair (BA Flair).
• If the Operating instructions are not to be found here, order a set from your supplier
using the article references below.
- DE BA Flair Deutsch Art. No. 1P 315 436
- EN BA Flair English Art. No. 1P 315 438
- FR BA Flair Français Art. No. 1P 315 437
- NL BA Flair Dutch Art. No. 1P 315 624
- EN BA Flair English UL Art. No. 1P 315 622
- CN BA Flair Chinese Art. No. 1P 315 623
3.4. Addenda to the operating instructions
3.4.1. Inserting product tags

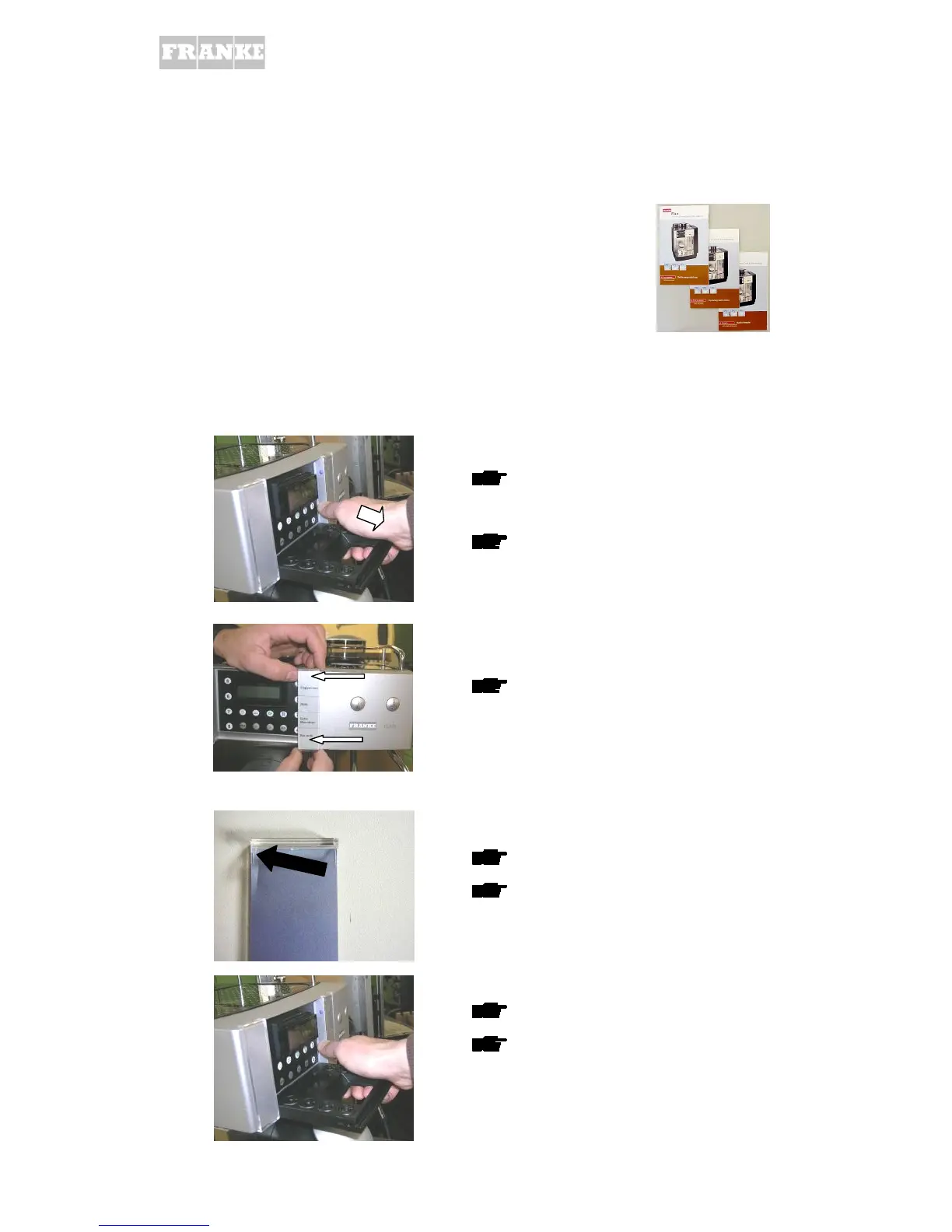

Removing the keypad flap
Fold down the keypad flap
- e.g. on the right-hand side
Hold firmly as shown and pull firmly
outwards and remove
Inserting product tags
- e.g. on the right-hand side
Pull transparent cover for product tags to
the left, pulling simultaneously at top and
bottom, and remove from guide
• Insert product tags. Or order a new blank
sheet from your supplier
(Art. No. 1P 315 429).
Inserting the cover
Slide transparent cover into guide
Press to the right as far as the stop (arrow)
• Make sure cover is pushed in as far as the
stop; otherwise keypad flap cannot be
inserted.
Inserting keypad flap
For example first fit left axis into guide
Press right side of flap from top to bottom
until it latches into place
