Franke Flair Service Manual

TD-100343.doc
19

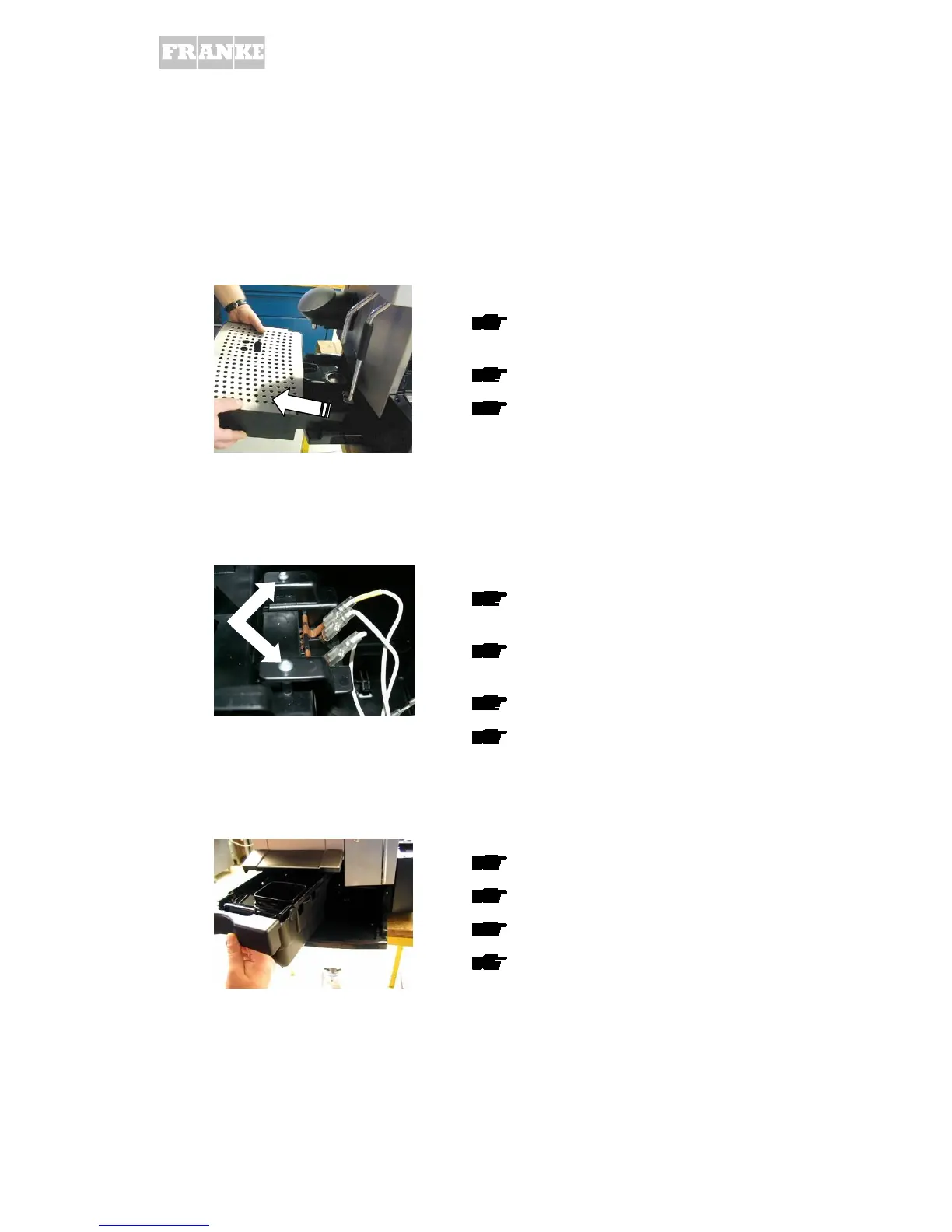

4. Subassembly units
4.1. Drip tray and grounds container
4.1.1. Drip tray
Removing the drip tray
Carefully pull out the full drip tray, holding
it at a slight angle
Empty and clean
Clean both tray contacts
• To achieve an even better contact, detach
contacts and clean on reverse side too (or
replace contacts if necessary)
4.1.2. Contacts for drip tray
Removing the contacts
Remove side panel (right) as described in
Chap. 4.3.2.
Detach and pull out unit heater for coffee
and hot water as described in Chap. 4.10.2
Detach and pull valve socket out
Unscrew the 2 screws (arrows) and remove
contacts
4.1.3. Grounds container
Removing the grounds container
Slide dispenser upwards
Tilt grounds container flap
Pull grounds container out of the machine
Empty and clean grounds container
