Franke Flair Service Manual

TD-100343.doc
36

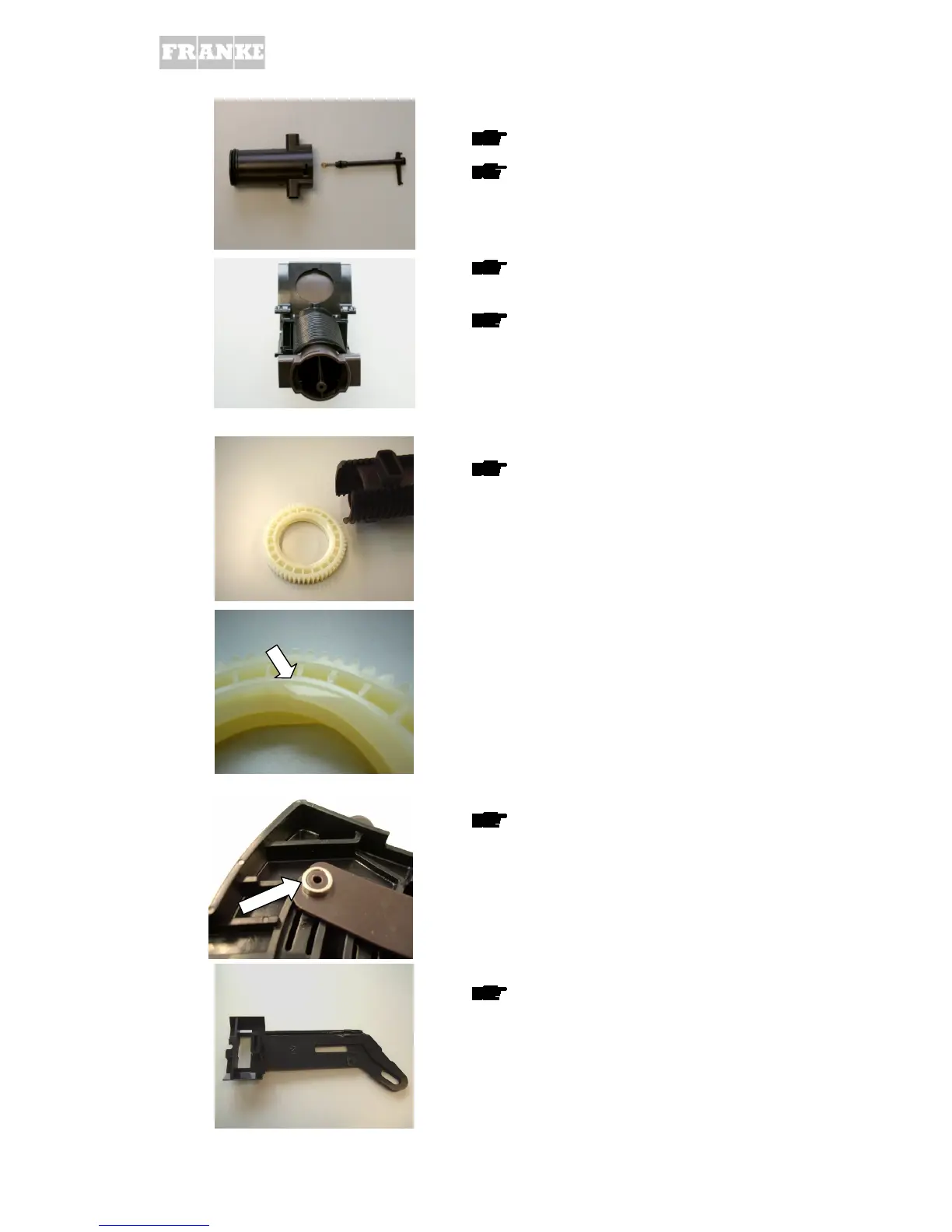

Installing the feed pipe
Fit spring with sealing pin into piston
Next screw into guide
Installing the upper piston
Smear piston lower o-ring with Klübersynth
grease (Art. No. 1L 296 804)
Fit with feed pipe in opposite direction to
ground coffee intake
Installing the toothed wheel
Screw onto cylinder
• CAUTION! Toothed wheels manufactured
before February 2003 have four lead-in
notches on the underside. These notches
must face the brewing chamber. On
toothed wheels without notches the thread
lead-ins must face upwards, as illustrated.
Installing outer guide rollers
Fit into seating
Installing left + right dynamic bend
Smear guide with Klüber Microlube grease
(Art. No. BK 301 313)
