Show system
data

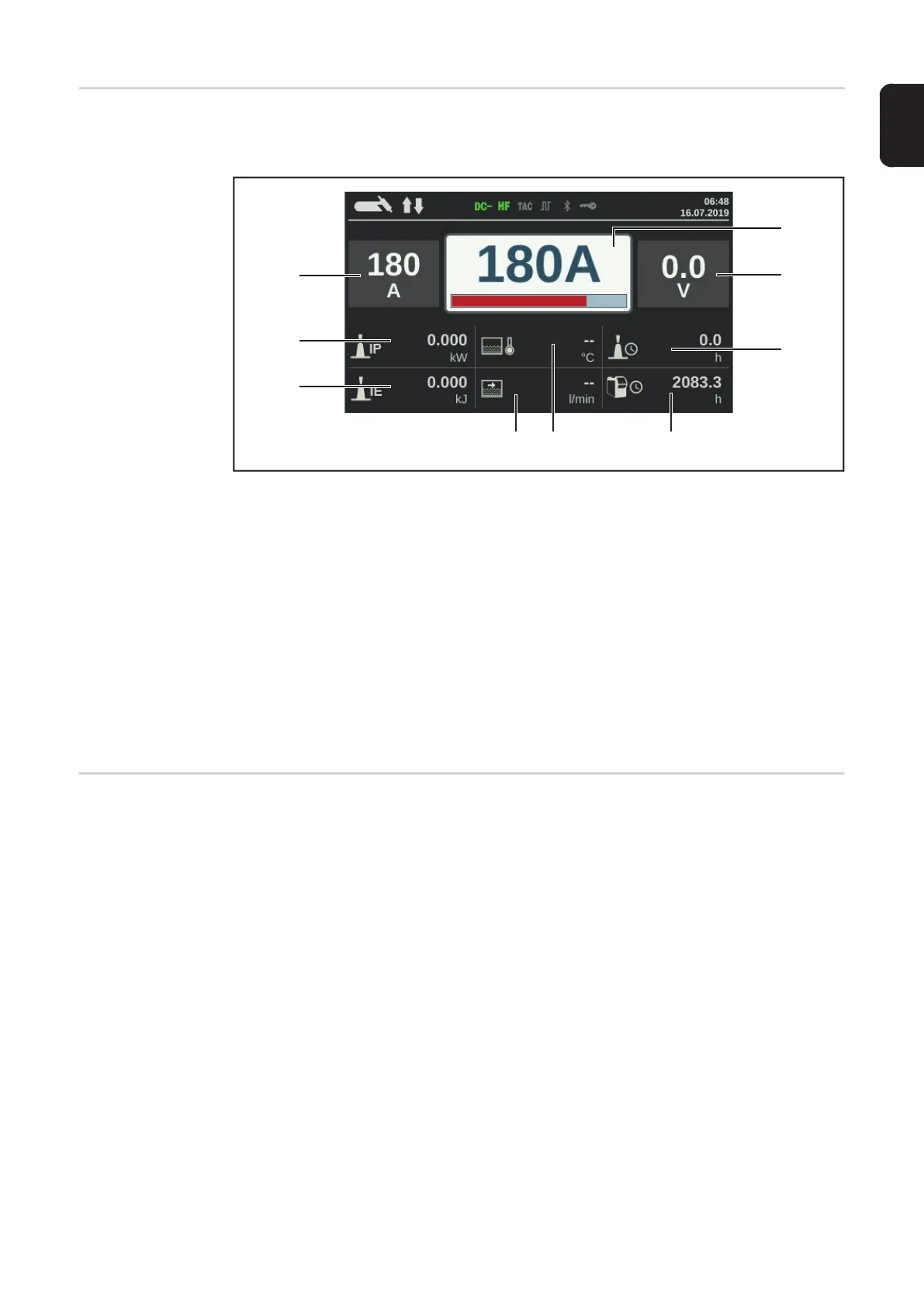

After selecting "Show system data", the current system data of the welding system is dis-
played:
(1) Welding current actual/hold value
(2) Current arc power
(3) Current arc energy
(4) Coolant circulation
(5) Coolant temperature
(6) Total operating hours
(7) Current flow time
(8) Welding voltage
(9) Welding current command value
Press the adjusting dial to hide the system data and return to the welding parameters
screen.
Display additional
parameters
In the case of welding parameters 1 - 3, this function enables additional parameters or set-
tings to be displayed.
- Not assigned
- Welding process
- TIG welding torch mode
- TIG settings:
Tacking, pulse frequency, base current, duty cycle, pulse waveform, base current
waveform, starting current time, final current time, spot welding time, lowering current
slope 1, lowering current slope 2, AC frequency, AC current offset, positive half-wave
waveform, negative half-wave waveform
- Electrode settings:
Starting current time, characteristic, break voltage, anti-stick, AC frequency
- CEL settings:
Starting current time, break voltage, anti-stick
(1)
(2)
(3)
(4) (5) (6)
(7)
(8)
(9)
