Connecting the
gas cylinder

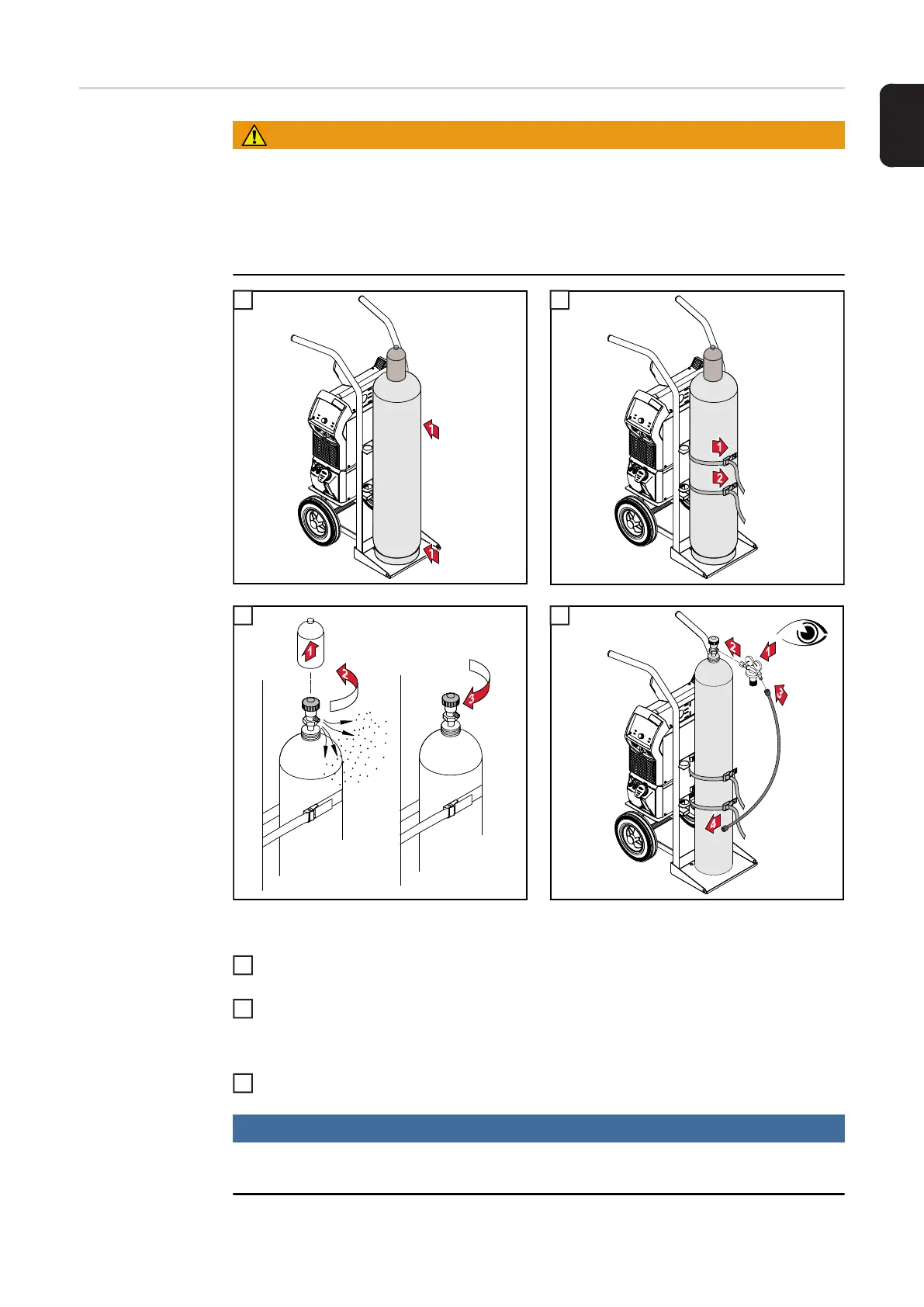

WARNING!
There is a high risk of very serious injury and damage if a gas cylinder falls over.
► Place gas cylinders on a solid, level surface in such a way that they remain stable.
► Secure gas cylinders to prevent them from toppling over: Fix the safety strap at the
same height as the top part of the cylinder.
► Never fix the safety strap around the neck of the cylinder.
► Observe the safety rules of the gas cylinder manufacturer.
1 2
3 4
When using a TIG welding torch with an integral gas connection:
Use the gas hose to connect the pressure regulator to the shielding gas connection on
the rear of the power source
Tighten the union nut on the gas hose
When using a TIG welding torch with no integral gas connection:
Connect the TIG welding torch gas hose to the pressure regulator
NOTE!
When using a MultiControl (MC) cool unit, please see the Operating Instructions of
the cooling unit for a description of the gas connection.
