Vertical Adjust and Detector Tilt Handle
1. Press and hold a tilt button (Figure 8-25) until desired position is reached.
2. Release the tilt button to stop tilting.

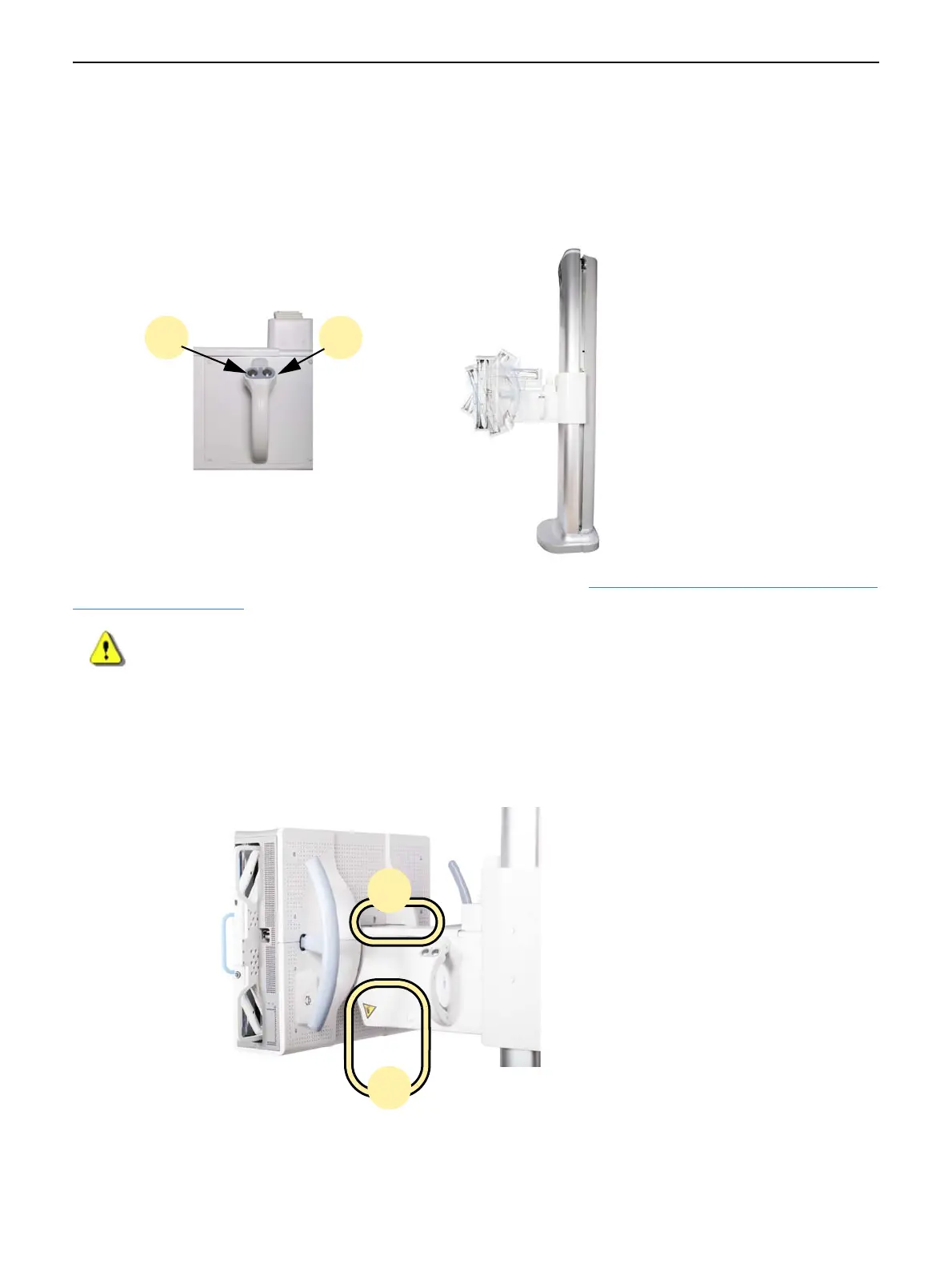

Figure 8-25 Tilt buttons on vertical adjust and receptor tilt handle
The wallstand may also be tilted using the remote control. Refer to Standard Table Hand Grips and Com-
pression Band(p. 8-72) for more information.
CAUTION Hand Crush Hazard: Keep your extremities and the patient’s extremities away from
the pinch areas (Figure 8-26) and the top of the wallstand arm when tilting the
wallstand receptor.
Figure 8-26 Pinch areas (back of the receptor)
1. Tilt up (toward
horizontal)
2. Tilt down (toward
vertical)
1. Top of the wallstand arm -
pivot point
2. Bottom of the wallstand
arm - crush area between
back of the receptor and
the end of the arm
