Chapter 3 Page no. 102
S2100D How To.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Senographe Operations - How to...

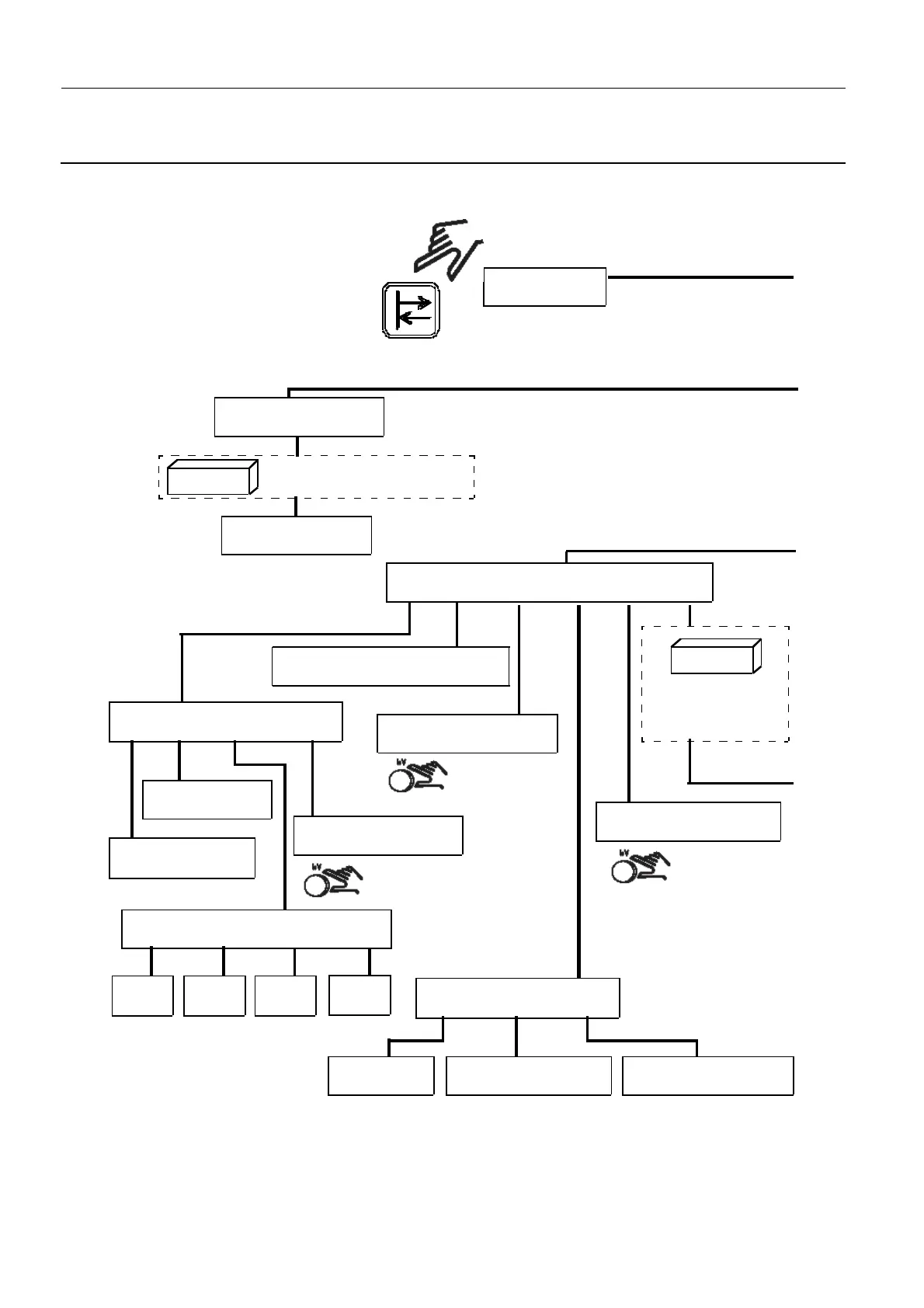

ILLUSTRATION 2 -
APPLICATION MODE
CHECKSUM OF SAVED PARAM
CKSUM CLEAR
GENERATOR CONFIGURATION
PRES.MASMAXTUBE PMAX T_MAX RINIT
MAX EXPOSURE TIME T(s)=(value)
MAX AUTHORIZED POWER POWE = (value)
MAX MAS ALLOWED mAs=(value)
TYPE OF TUBE 2foc/2met/1ang
3.5KW 4.0KW
SMSA
4.5KW
FOCUS
3.0KW
VALID
ANODE
NEXT
5.0KW
DUAL
PRS-B
SUB-SYSTEMS PRESENCE
SMDADM
SINGLE
NEXT VALID
TYPE OF ANODE 2Metal
FOCUS SELECTION bifocus
CLEAR ALL SAVED PARAM
VALID
WARNING
USING THE CLEAR FUNCTION WILL
ENTAIL A COMPLETE RE-CALIBRATION
OF THE GANTRY, GENERATOR AND AEC.
WARNING
RE-INITIALIZING THE TUBE
WILL ENTAIL RE-CALIBRATING
THE TUBE HEATER CURRENT.
USE THE FUNCTION ONLY
WHEN YOU HAVE REPLACED
THE X-RAY TUBE.
PRS-DS PRS-IDC
YES
ARM PRESENCE
NO
DIGITAL STATION PRESENCE
IMAGE DETECTOR CTRL PRES.
YES NO YES NO
MODEL OF TUBE : (Maxray 100TH-M1)
X-RAY DISCHARGE Delay (ms)
GS412 70TH-F
NEXT VALID
70TH-D
MODEL
DCHARG
GS412
VALID
70TH-F
VALID
70TH-D
VALID
A
B
C
D
100TH-M1
100TH-M1
VALID
To Next Page
